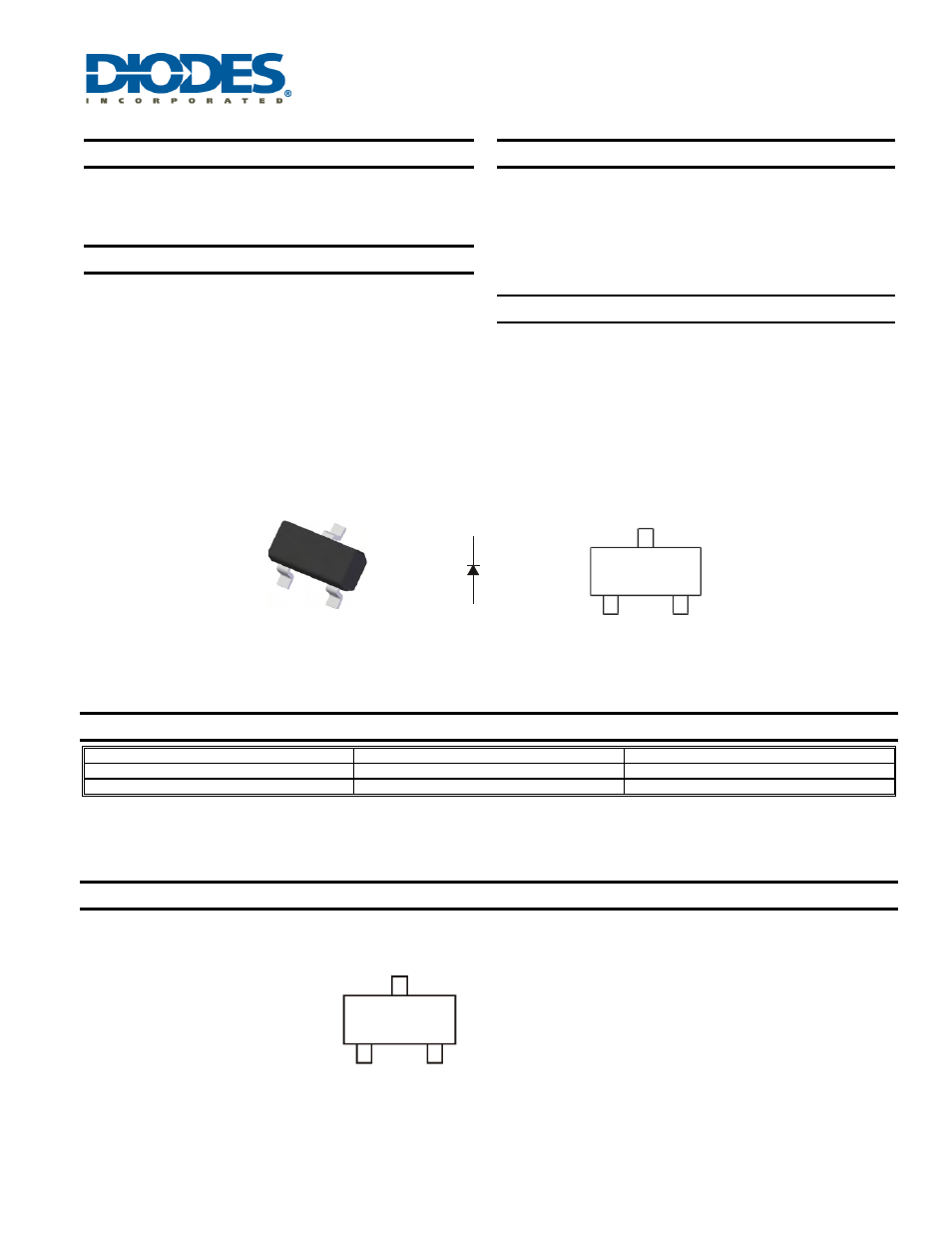

ZLLS500
SURFACE MOUNT SCHOTTKY BARRIER DIODE
Product Summary
•
V
R
= 40V
•
I
F
= 0.7A
•
I
R
= 10
μA
Description and Applications
This compact SOT23 packaged Schottky diode offers users an
excellent performance combination comprising high current operation,
extremely low leakage and low forward voltage ensuring suitability for
applications requiring efficient operation at higher temperatures
(above 85°C) see Operational efficiency chart on page 3.
•
DC – DC Converters
•
Strobes
• Mobile
Telecomms
•
Charging circuits
• Motor
Control
Features and Benefits
•
Extremely low leakage (10
μA @30V)
•
High current capability (I
F
= 0.7A)
•
Low V
F
, fast switching Schottky
•
ZLLS500 complements low temperature equivalent ZHCS500
•
Package thermally rated to 150°C
•
Qualified to AEC-Q101 Standards for High Reliability
Mechanical Data
• Case:
SOT23
•
Case Material: Molded Plastic, “Green” Molding Compound. UL
Flammability Classification Rating 94V-0
•
Moisture Sensitivity: Level 1 per J-STD-020
•
Terminals: Matte Tin Finish annealed over Alloy 42 leadframe
(Lead Free Plating). Solderable per MIL-STD-202, Method 208
•
Weight: 0.0089 grams (approximate)
Ordering Information
(Note 1)
Device
Packaging
Shipping
ZLLS500TA
SOT23
3000/Tape & Reel
ZLLS500TC
SOT23
10000/Tape & Reel
Notes:
1. For Packaging Details, go to our website at
Marking Information
Top View
L05 = Product Type Marking Code
SOT23
L05
Device Schematic
Top View
Pin Configuration
1
3
2
C
A
N/C
1
3
