SDM100K30L

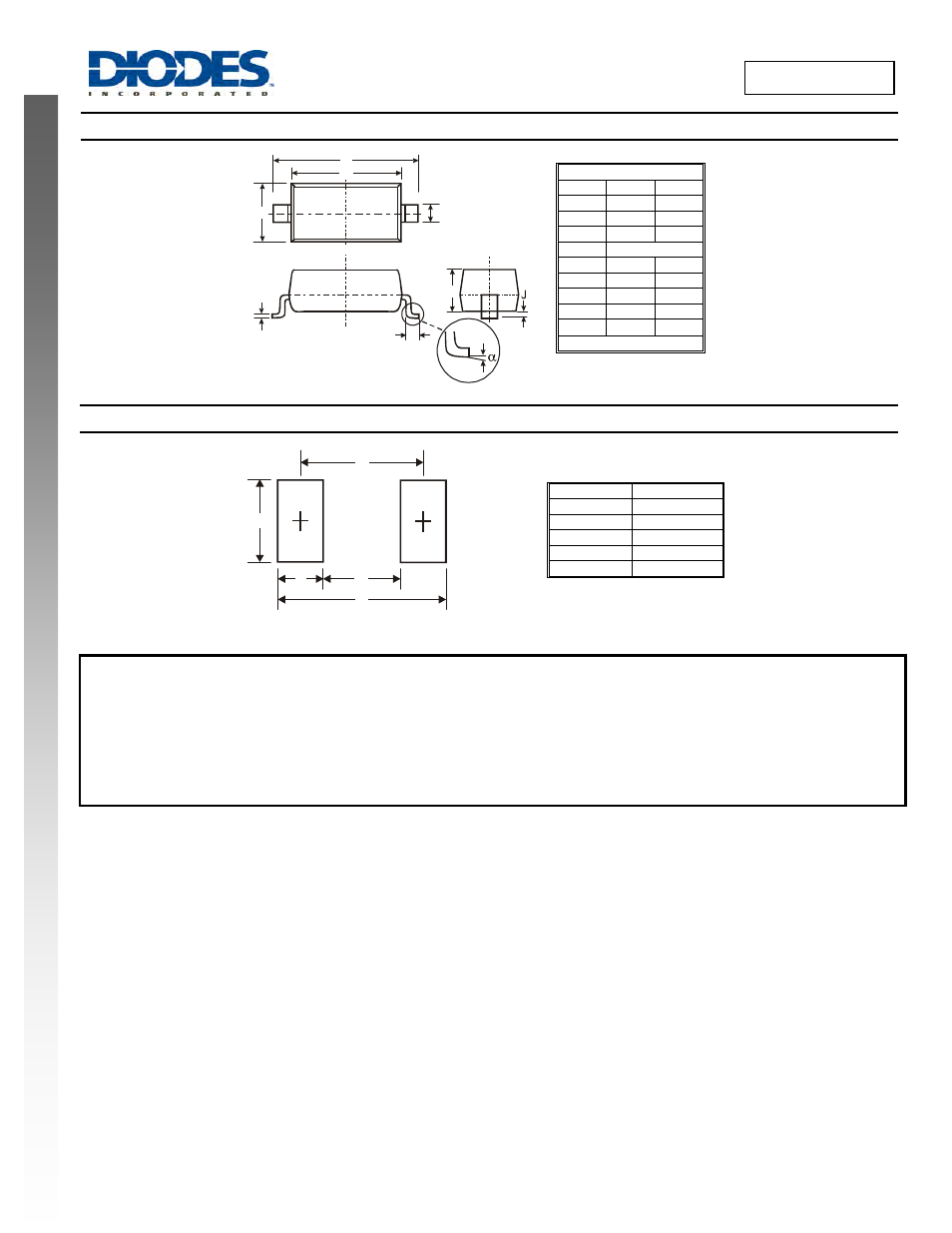

Package Outline Dimensions
D
G
H
A
B
C E
SOD-323
Dim Min Max
A 2.30 2.70
B 1.60 1.80
C 1.20 1.40
NEW PROD
UC
T
D 1.05 Typical
E 0.25 0.35
G 0.20 0.40
H 0.10 0.15
J 0.00 0.10
α 0° 8°
All Dimensions in mm
SDM100K30L
Document number: DS30579 Rev. 8 - 2
3 of 3
www.diodes.com
June 2008
© Diodes Incorporated
Suggested Pad Layout
Z
X
C
G Y
Dimensions Value (in mm)
Z 3.75
G 1.05
X 0.65
Y 1.35
C 2.40
