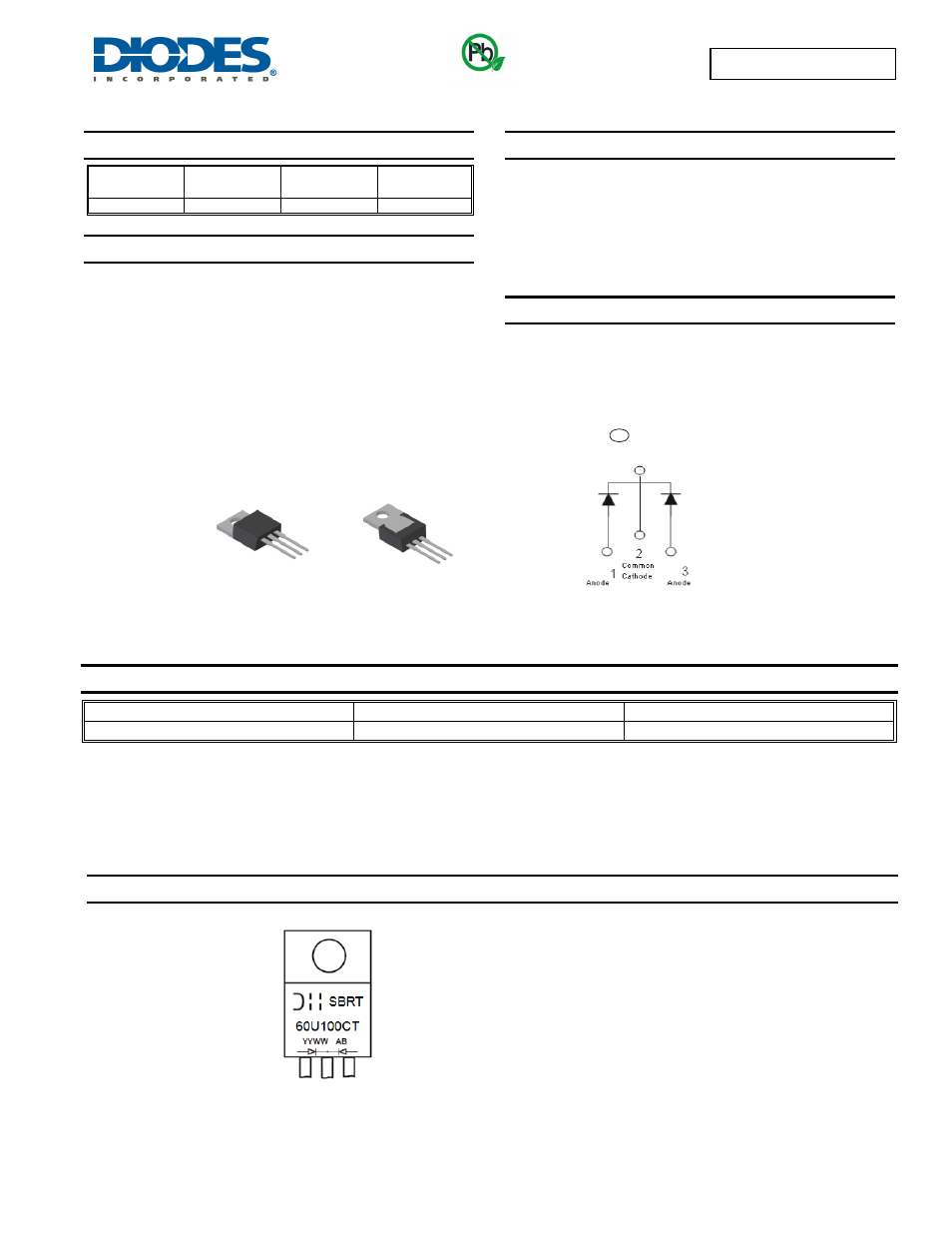

SBRT60U100CT
60A TrenchSBR
TRENCH SUPER BARRIER RECTIFIER
Product Summary
(Per Leg)
V
RRM
(V)
I
O
(A)
V
F(MAX)
(V)
@ +25°C
I
R(MAX)
(mA)
@ +25°C
100 30 0.78 0.3
Description and Applications
Packaged in the robust industry-standard TO220AB package, the
SBRT60U100CT provides very low V
F
and excellent reverse leakage
stability at high temperatures. It is ideal for use as a rectifier,
freewheel diode or blocking diode in:
DC/DC Converters and AC/DC Adaptors
Features and Benefits
•
Reduced ultra-low forward voltage drop (V
F
); better efficiency
and cooler operation.
•
Reduced high temperature reverse leakage; Increased reliability
against thermal runaway failure in high temperature operation.
•
Lead-Free Finish; RoHS Compliant (Notes 1 & 2)
•
Halogen and Antimony Free. “Green” Device (Note 3)
Mechanical Data
• Case:
TO-220AB
•
Case Material: Molded Plastic, "Green" Molding Compound; UL
Flammability Classification Rating 94V-0
•
Moisture Sensitivity: Level 1 per J-STD-020
•
Terminals: Matte Tin Finish; Solderable per MIL-STD-202,
Method 208
Ordering Information
(Note 4)
Part Number
Case
Packaging
SBRT60U100CT TO-220AB 50
pieces/tube
Notes:
1. EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant. All applicable RoHS exemptions applied.
2. S more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green"
and Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
4. For packaging details, go to our website at
Marking Information
Package Pin-Out
Configuration
SBRT60U100CT = Product Type Marking Code
AB = Foundry and Assembly Code
YYWW = Date Code Marking
YY = Last two digits of year (ex: 14 = 2014)
WW = Week (01-53)
e3
TO-220AB
Top View
TO-220AB
Bottom View
Green
