Diodes SBRT3U45SA User Manual
Product summary, Description and applications, Features and benefits

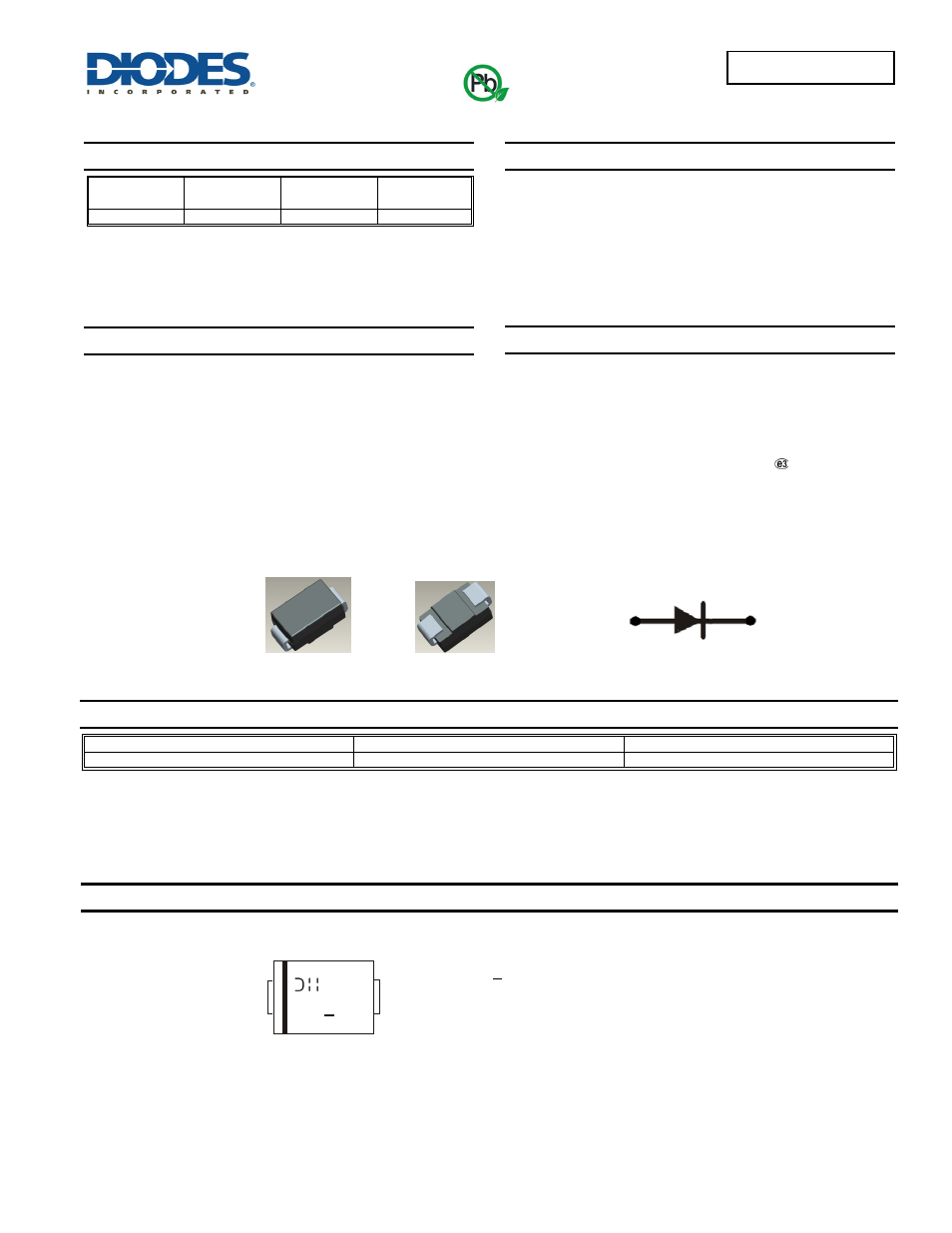

SBRT3U45SA
Document number: DS36888 Rev. 3 - 2
1 of 4
April 2014
© Diodes Incorporated
SBRT3U45SA
NEW PROD
UC
T
ADVANCED INFORMATION ADVAN
CE I
N
F
O
RM
ATI
O
N
3A TrenchSBR
TRENCH SUPER BARRIER RECTIFIER
Product Summary
V
RRM
(V)
I
O
(A)
V
F(MAX)
(V)
@ +25°C
I
R(MAX)
(mA)
@ +25°C
45 3 0.48
0.15
Description and Applications
The SBRT3U45SA is a 3A 45V single rectifier packaged in the low
profile SMA package. Providing very low VF and excellent reverse
leakage stability at high temperatures, this device is ideal for use in
general rectification applications such as:
• Boost
Diode
• Blocking
Diode
• Recirculating
Diode
Features and Benefits
•
Reduced ultra-low forward voltage drop (V
F
); better efficiency
and cooler operation.
•
Reduced high temperature reverse leakage; increased reliability
against thermal runaway failure in high temperature operation.
•
Lead-Free Finish; RoHS Compliant (Notes 1 & 2)
•
Halogen and Antimony Free. “Green” Device (Note 3)
•
Qualified to AEC-Q101 Standards for High Reliability
Mechanical Data
• Case:
SMA
•
Case Material: Molded Plastic, “Green” Molding Compound. UL
Flammability Classification Rating 94V-0
•
Moisture Sensitivity: Level 1 per J-STD-020
•
Terminals: Finish - Matte Tin annealed over Copper Leadframe.
Solderable per MIL-STD-202, Method 208
•
Polarity: Cathode Band
•
Weight: 0.064 grams (approximate)
Ordering Information
(Note 4)
Part Number
Case
Packaging
SBRT3U45SA-13
SMA
5000/Tape & Reel
Notes:
1. EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant. All applicable RoHS exemptions applied.
2. S
and Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
4. For packaging details, go to our website at
Marking Information
Green
TV4 = Product Type Marking Code
YWW = Date Code Marking
Y = Last digit of year (ex: 4 for 2014)
WW = Week code 01 to 53
AB = Foundry and Assembly Code
Top View
Bottom View
SMA
YWW
TV4
•
AB
