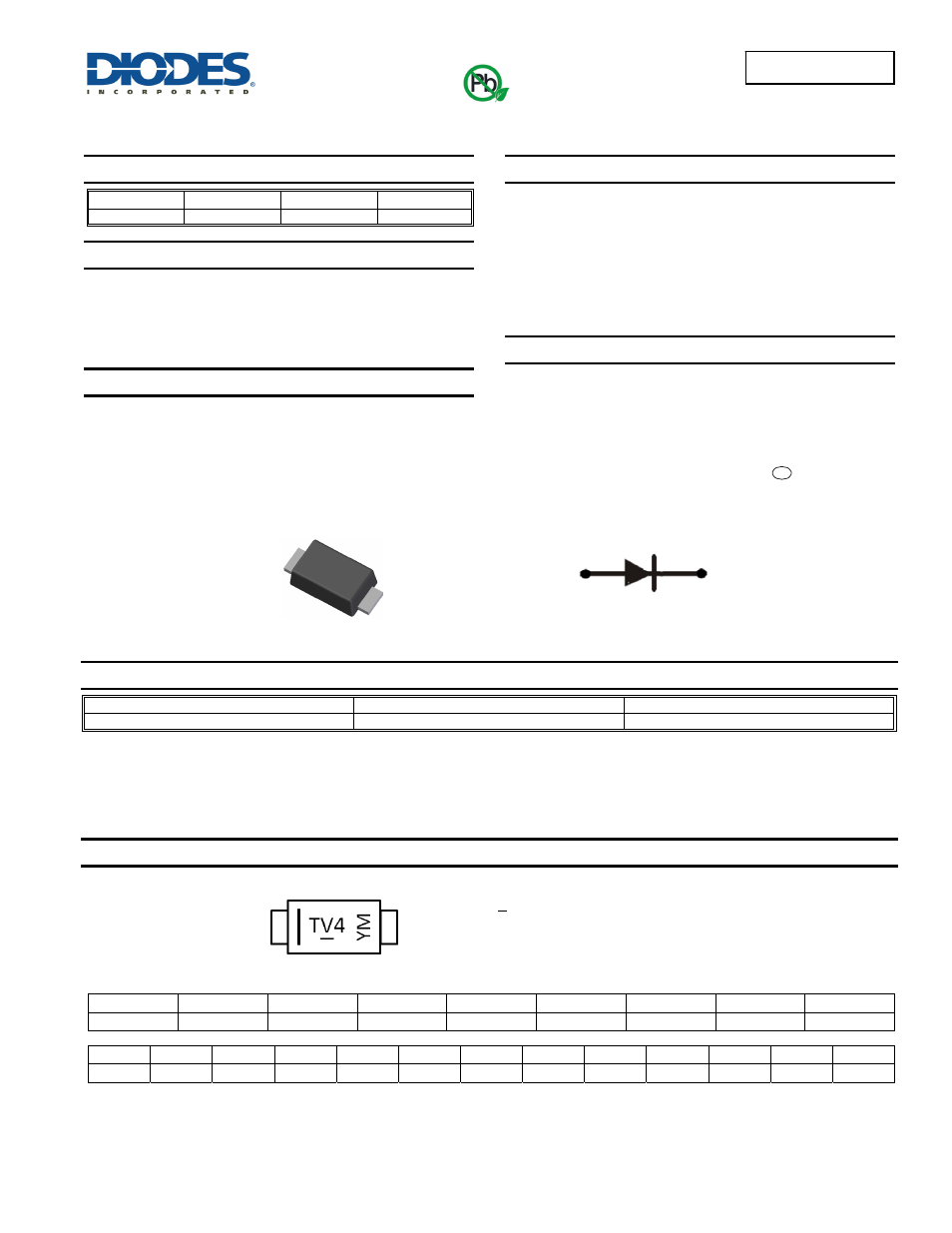

Diodes SBRT3U40P1 User Manual
Product summary, Description, Application

SBR and POWERDI are registered trademarks of Diodes Incorporated.
SBRT3U40P1
Document number: DS36535 Rev. 4 - 2
1 of 5
January 2014
© Diodes Incorporated
SBRT3U40P1
NEW PROD
UC
T
ADVANCED INFORMATION ADVAN
CE I
N
F
O
RM
ATI
O
N
3A TrenchSBR
TRENCH SUPER BARRIER RECTIFIER
POWERDI
®
123
Product Summary
(@T
A
= +25°C)
V
RRM
(V)
I
O
(A) V
F max
(V) I
R max
(µA)
40 3 0.49
180
Description
Packaged in the compact thermally efficient POWERDI-123 package,
the SBRT3U40P1 provides very low V
F
and excellent reverse leakage
stability at high temperatures. It is ideally suited to use as a rectifier
diode in MR16 bridge rectifier applications.
Application
•
Bridge rectifier Diode
Features and Benefits
•
Reduced ultra-low forward voltage drop (V
F
); better efficiency
and cooler operation.
•
Reduced high temperature reverse leakage; Increased reliability
against thermal runaway failure in high temperature operation.
•
<1.1mm package profile – ideal for thin applications.
•
Lead-Free Finish; RoHS Compliant (Notes 1 & 2)
•
Halogen and Antimony Free. “Green” Device (Note 3)
Mechanical Data
• Case:
PowerDI123
•
Case Material: Molded Plastic, “Green” Molding compound. UL
Flammability Classification Rating 94V-0
•
Moisture Sensitivity: Level 1 per J-STD-020
•
Terminals: Finish - Matte Tin annealed over Copper Leadframe.
Solderable per MIL-STD-202, Method 208
•
Polarity: See Below
•
Weight: 0.01 grams (approximate)
Ordering Information
(Note 4)
Part Number
Case
Packaging
SBRT3U40P1-7
PowerDI123
3000/Tape & Reel
Notes:
1. EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant. All applicable RoHS exemptions applied.
2. S
and Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
4. For packaging details, go to our website at
Marking Information
Date Code Key
Year 2013 2014 2015 2016 2017 2018 2019 2020
Code A B C D E F G H
Month
Jan Feb Mar Apr May Jun Jul Aug Sep Oct Nov Dec
Code
1 2 3 4 5 6 7 8 9 O N D
Green
Top View
PowerDI123
TV4 = Product Type Marking Code
YM = Date Code Marking
Y = Year (ex: A = 2013)
M = Month (ex: 9 = September)
Device Symbol
e3
