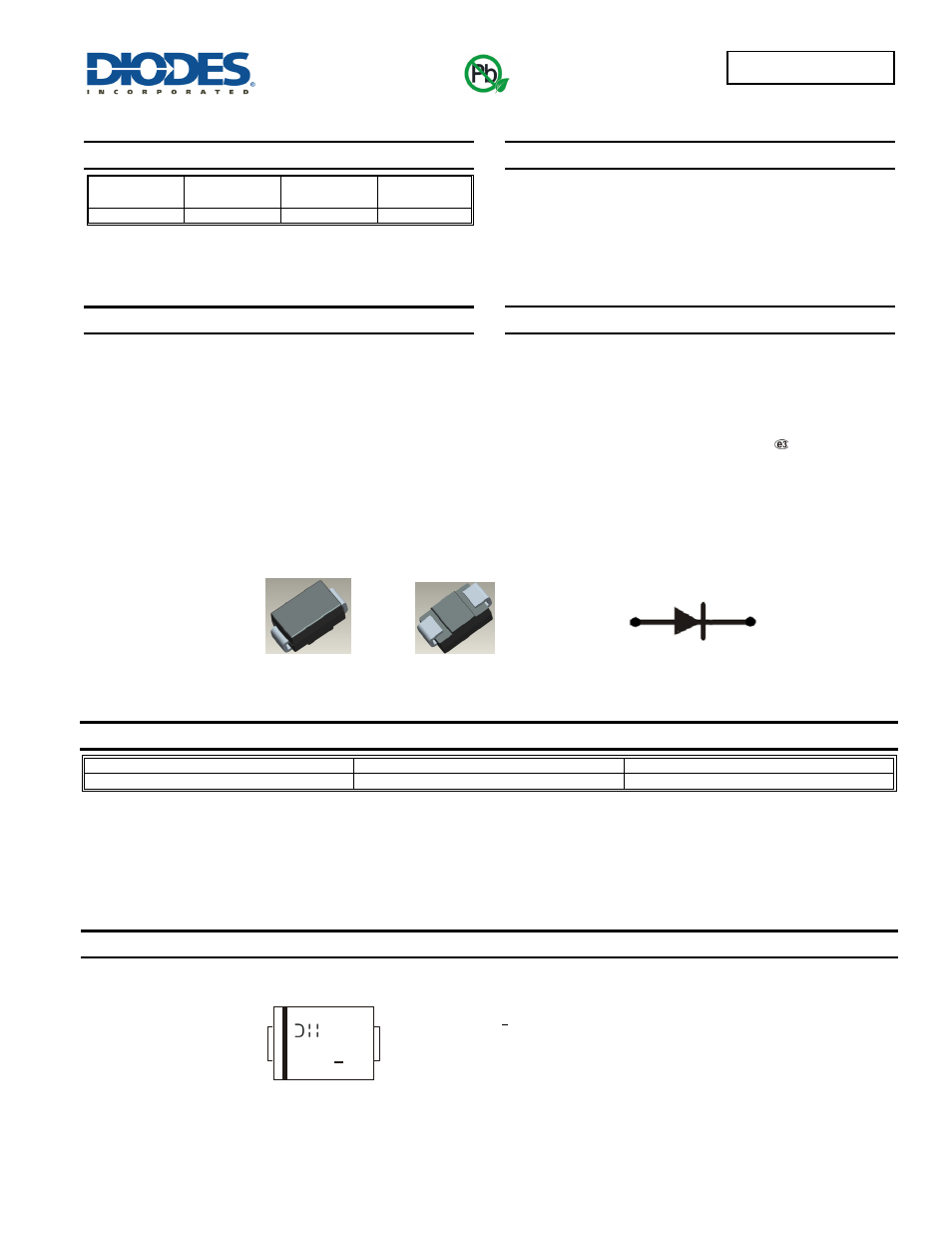

SBRT3M40SA
Document number: DS36939 Rev. 2 - 2
1 of 4
www.diodes.com
April 2014
© Diodes Incorporated
SBRT3M40SA
NEW PROD
UC
T
ADVANCED INFORMATION ADVAN
CE I
N
F
O
RM
ATI
O
N
3A TrenchSBR
TRENCH SUPER BARRIER RECTIFIER
Product Summary
V
RRM
(V) I
O
(A)
V
F(MAX)
(V)
@ +25°C
I
R(MAX)
(mA)
@ +25°C
40 3 0.53 0.07
Description and Applications
The SBRT3M40SA is a 3A 40V single rectifier packaged in the low
profile SMA package. Providing low VF and excellent reverse leakage
stability at high temperatures, this device is ideal for use in general
rectification applications such as:
• Boost Diode
• Blocking Diode
• Recirculating Diode
Features and Benefits
• Reduced low forward voltage drop (V
F
); better efficiency and
cooler operation.
• Reduced high temperature reverse leakage; Increased reliability
against thermal runaway failure in high temperature operation.
• Lead-Free Finish; RoHS Compliant (Notes 1 & 2)
• Halogen and Antimony Free. “Green” Device (Note 3)
Mechanical Data
• Case: SMA
• Case Material: Molded Plastic, “Green” Molding Compound. UL
Flammability Classification Rating 94V-0
• Moisture Sensitivity: Level 1 per J-STD-020
• Terminals: Finish - Matte Tin annealed over Copper Leadframe.
Solderable per MIL-STD-202, Method 208
• Polarity: Cathode Band
• Weight: 0.064 grams (approximate)
Ordering Information
(Note 4)
Part Number Case Packaging
SBRT3M40SA-13 SMA 5000/Tape & Reel
Notes: 1. EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant. All applicable RoHS exemptions applied.
2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green"
and Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
4. For packaging details, go to our website at http://www.diodes.com/products/packages.html.
Marking Information
Green
TV4 = Product Type Marking Code
YWW = Date Code Marking
Y = Last digit of year (ex: 4 for 2014)
WW = Week code 01 to 53
AB = Foundry and Assembly Code
Top View Bottom View
SMA
YWW
TV4
AB
