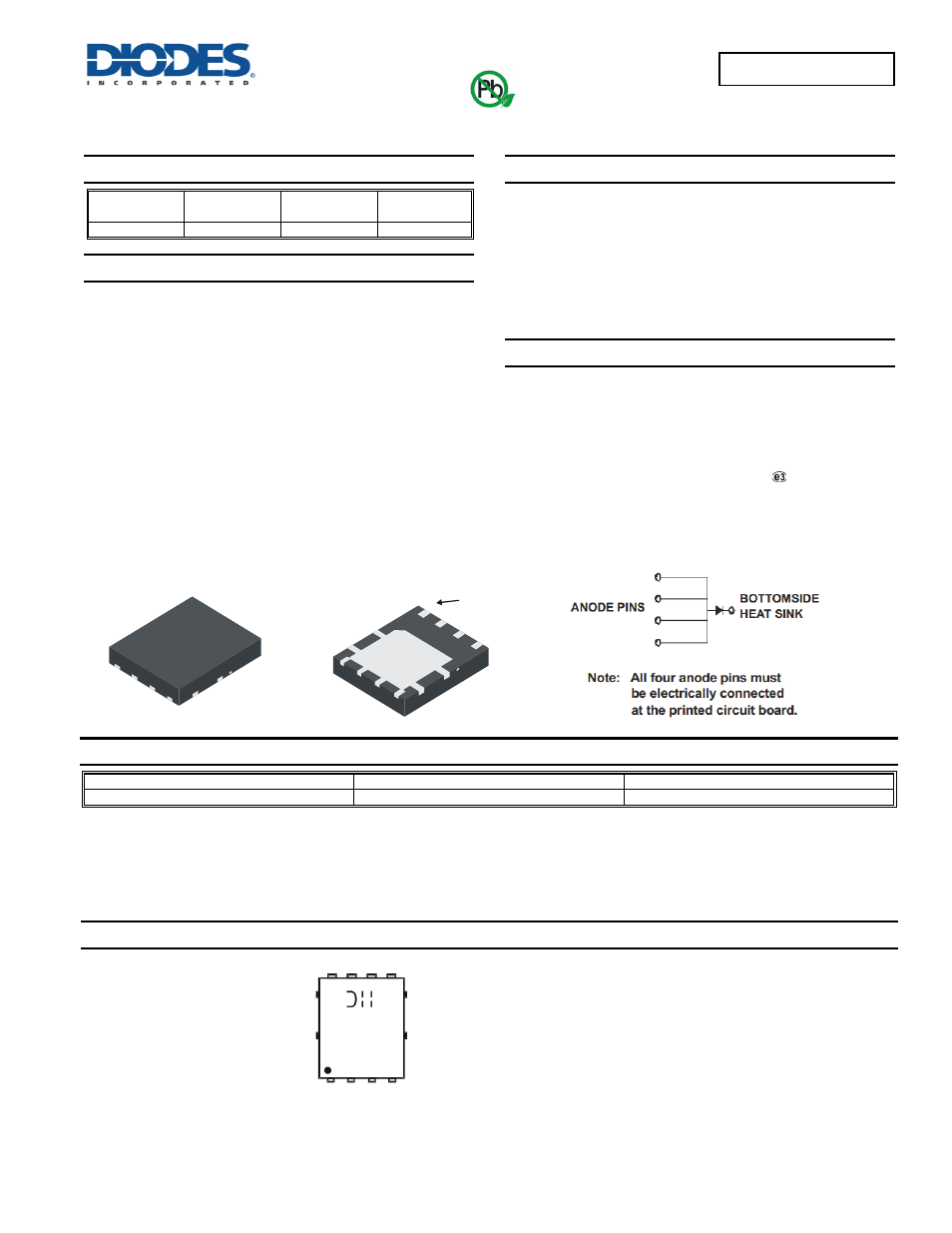

Diodes SBRT25M60SLP User Manual
Sbrt25m60slp new prod uc t, Product summary, Description and applications

POWERDI are registered trademarks of Diodes Incorporated.
SBRT25M60SLP
Document number: DS36755 Rev. 3 - 2
1 of 5
March 2014
© Diodes Incorporated
SBRT25M60SLP
NEW PROD
UC
T
25A TrenchSBR
TRENCH SUPER BARRIER RECTIFIER
POWERDI
®
5060
Product Summary
V
RRM
(V)
I
O
(A)
V
F(MAX)
(V)
@ +25°C
I
R(MAX)
(mA)
@ +25°C
60 25 0.6
0.15
Description and Applications
Packaged in the compact thermally efficient POWERDI5060-8
package, the SBRT25M60SLP provides low forward voltage and
excellent reverse leakage stability at high temperatures. It is ideal for
use as a rectifier, freewheel diode or blocking diode in:
• DC/DC
Converters
• AC/DC
Adaptors
Features and Benefits
•
Reduced low forward voltage drop (V
F
) and reverse leakage
(I
R
); better efficiency and cooler operation.
•
Reduced high temperature reverse leakage; Increased reliability
against thermal runaway failure in high temperature operation.
•
Less than 1.1mm package profile – ideal for thin applications.
•
Lead-Free Finish; RoHS Compliant (Notes 1 & 2)
•
Halogen and Antimony Free “Green” Device (Note 3)
Mechanical Data
• Case:
POWERDI5060-8
•
Case Material: Molded Plastic, “Green” Molding compound. UL
Flammability Classification Rating 94V-0
•
Moisture Sensitivity: Level 1 per J-STD-020
•
Terminals: Finish - Matte Tin annealed over Copper Leadframe.
Solderable per MIL-STD-202, Method 208
•
Polarity: See Below
•
Weight: 0.097 grams (approximate)
Top View Bottom View
Ordering Information
(Note 4)
Part Number
Case
Packaging
SBRT25M60SLP-13
POWERDI5060-8
2500/Tape & Reel
Notes:
1. EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant. All applicable RoHS exemptions applied.
2. S
and Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
4. For packaging details, go to our website at
Marking Information
Top View
Bottom View
POWERDI5060-8
Green
A
A
A
A
C
C
C
C
Pin
SBRT25M60 = Product Type Marking Code
YYWW = Date Code Marking
YY = Last two digits of year (ex: 14 = 2014)
WW = Week (01-53)
SBRT25M60
YYWW
