SBR40U100CT
SBR is a registered trademark of Diodes Incorporated.
40A SBR
®
SUPER BARRIER RECTIFIER
Features
•
Ultra Low Forward Voltage Drop
•
Excellent High Temperature Stability
•
Patented Super Barrier Rectifier Technology
•
Soft, Fast Switching Capability
•
150ºC Operating Junction Temperature
•
Lead Free Finish, RoHS Compliant (Note 2)
•
Also Available in Green Molding Compound (Note 5)
Mechanical Data
• Case:
TO-220AB
•
Case Material: Molded Plastic, UL Flammability Classification
Rating 94V-0
•
Terminals: Matte Tin Finish annealed over Copper leadframe.
Solderable per MIL-STD-202, Method 208
•
Marking Information: See Page 2
•
Ordering Information: See Page 2
•
Weight: 1.85 grams (approximate)
Maximum Ratings
@T
A
= 25°C unless otherwise specified
Single phase, half wave, 60Hz, resistive or inductive load.
For capacitance load, derate current by 20%.
Characteristic Symbol
Value
Unit
Peak Repetitive Reverse Voltage
Working Peak Reverse Voltage
DC Blocking Voltage
V
RRM
V
RWM
V
RM
100 V
Average Rectified Output Current @ T
C
= 150ºC
I
O
40 A
Non-Repetitive Peak Forward Surge Current 8.3ms
Single Half Sine-Wave Superimposed on Rated Load
I
FSM
235 A
Isolation Voltage (ITO-220AB Only)
From terminal to heatsink t = 3 sec.
V
AC
2000 V
Thermal Characteristics
Characteristic Symbol
Value
Unit
Typical Thermal Resistance (per leg)
Thermal Resistance Junction to Case (Note 3)
R
θJC
2
ºC/W
Operating and Storage Temperature Range
T
J
, T
STG
-65 to +150
ºC
Electrical Characteristics
@T
A
= 25°C unless otherwise specified
Characteristic Symbol
Min
Typ
Max
Unit
Test
Condition
Forward Voltage Drop (per leg)
V
F
-
0.67
0.60
0.72
0.64
V
I
F
= 20A, T
J
= 25ºC
I
F
= 20A, T
J
= 125ºC
Leakage Current (Note 1)
I
R
- -
0.5
40
mA
V
R
= 100V, T
J
= 25ºC
V
R
= 100V, T
J
= 125ºC
Notes:
1. Short duration pulse test used to minimize self-heating effect.
2. EU Directive 2002/95/EC (RoHS). All applicable RoHS exemptions applied

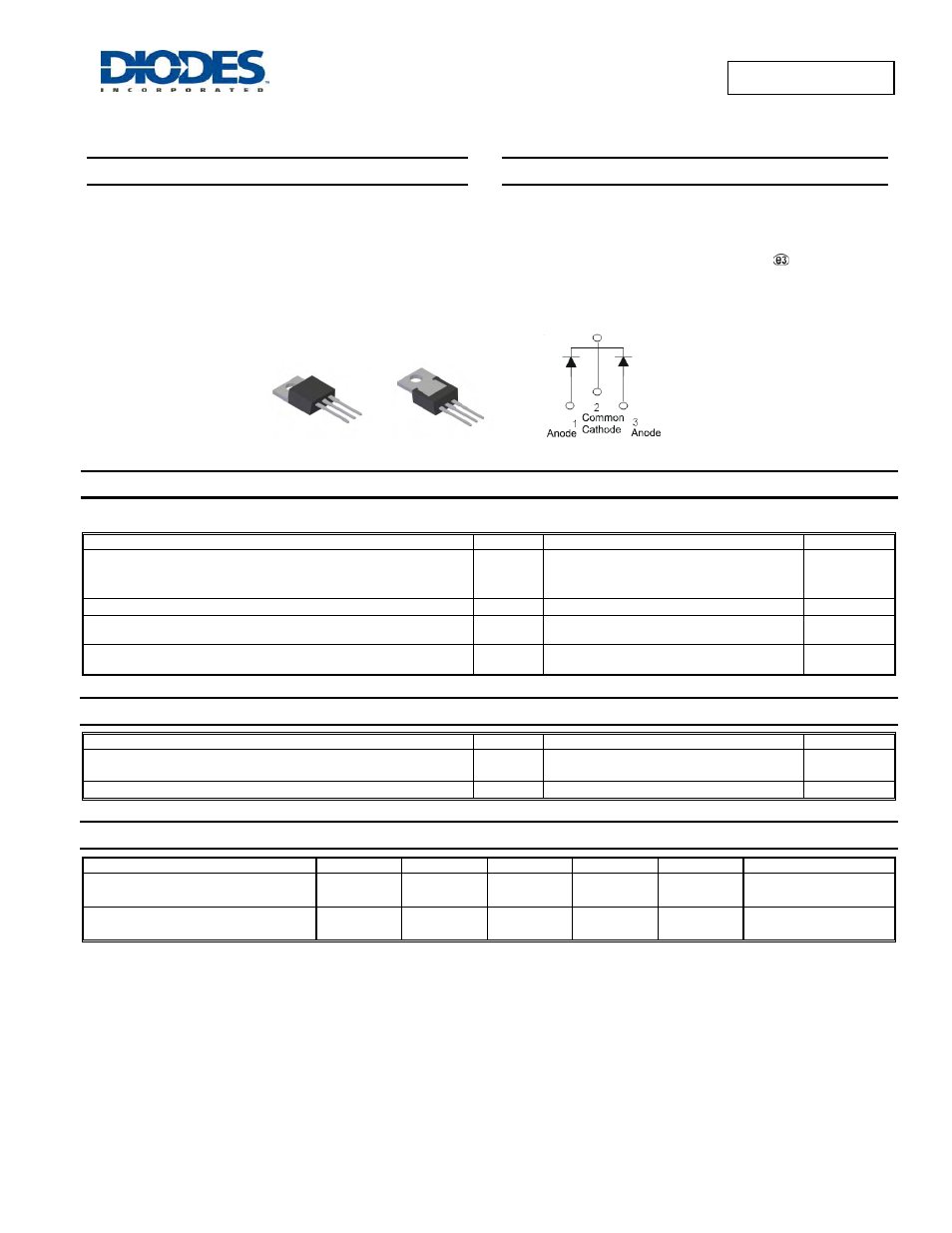

Package Pin Out
Configuration
TO-220AB
Top View
TO-220AB
Bottom View
