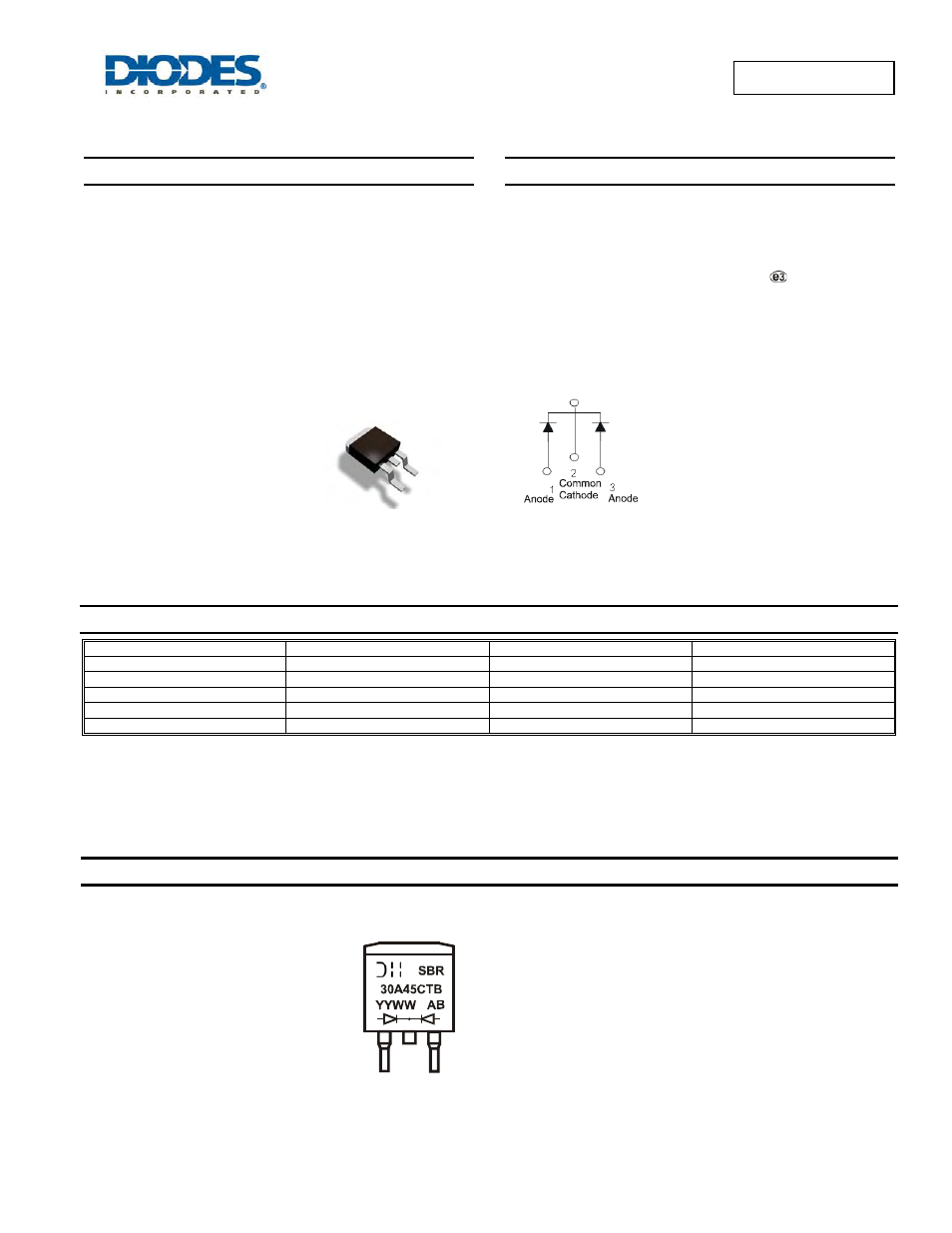

SBR30A45CTB
Document number: DS31527 Rev. 7 - 2
1 of 4
July 2011
© Diodes Incorporated
SBR30A45CTB
SBR is a registered trademark of Diodes Incorporated.
30A SBR
®
SUPER BARRIER RECTIFIER
Features
•
Low Forward Voltage Drop
• Low
Leakage
Current
•
Excellent High Temperature Stability
•
Patented Super Barrier Rectifier Technology
•
Soft, Fast Switching Capability
•
150ºC Operating Junction Temperature
•
Lead Free Finish, RoHS Compliant (Note 1)
•
Also Available in Green Molding Compound (Note 2)
•
Qualified to AEC-Q101 Standards for High Reliability
Mechanical Data
•
Case: TO263 (D
2
Pak)
•
Case Material: Molded Plastic, UL Flammability Classification
Rating 94V-0
•
Moisture Sensitivity: Level 1 per J-STD-020
•
Terminals: Matte Tin Finish annealed over Copper leadframe.
Solderable per MIL-STD-202, Method 208
•
Weight: 1.6 grams (approximate)
Ordering Information
(Notes 2 & 3)
Part Number
Qualification
Case
Packaging
SBR30A45CTB Commercial
TO263
50
pieces/tube
SBR30A45CTB-G Commercial
TO263
50
pieces/tube
SBR30A45CTB-13 Commercial
TO263
800/Tape
&
Reel
SBR30A45CTB-13-G Commercial
TO263
800/Tape
&
Reel
SBR30A45CTBQ-13 Automotive
TO263
800/Tape
&
Reel
Notes:
1. EU Directive 2002/95/EC (RoHS). All applicable RoHS exemptions applied, see EU Directive 2002/95/EC Annex Notes
2. For Green Molding Compound version part numbers, add "-G" suffix to part number above. Examples: SBR30A45CTB-G.
3. For packaging details, go to our website at
Marking Information
Top View
Package Pin-Out
Configuration
SBR30A45CTB = Product Type Marking Code
AB = Foundry and Assembly Code
YYWW = Date Code Marking
YY = Last two digits of year (ex: 08 = 2008)
WW = Week (01 – 53)
