Diodes SBR30A100CTB User Manual
Features, Mechanical data, Ordering information
SBR30A100CTB
Document number: DS31721 Rev. 5 - 2
1 of 4
July 2011
© Diodes Incorporated

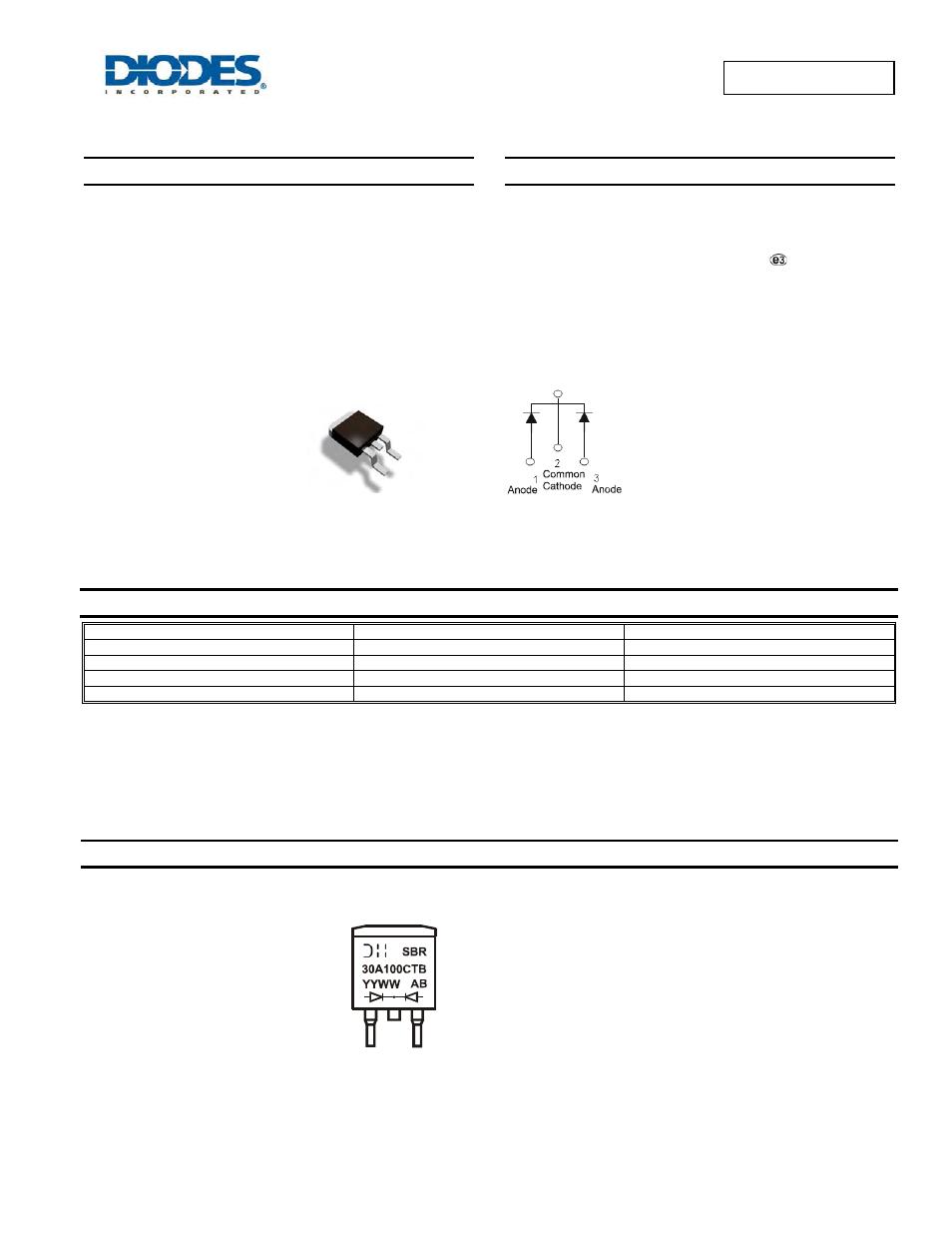

SBR30A100CTB
SBR is a registered trademark of Diodes Incorporated.
30A SBR
®
SUPER BARRIER RECTIFIER
Features
•
Low Forward Voltage Drop
• Low
Leakage
Current
•
Excellent High Temperature Stability
•
Patented Super Barrier Rectifier Technology
•
Soft, Fast Switching Capability
•
175ºC Operating Junction Temperature
•
Lead Free Finish, RoHS Compliant (Note 1)
•
Also Available in Green Molding Compound (Note 2)
Mechanical Data
•
Case: TO263 (D
2
Pak)
•
Case Material: Molded Plastic, UL Flammability Classification
Rating 94V-0
•
Terminals: Matte Tin Finish annealed over Copper leadframe.
Solderable per MIL-STD-202, Method 208
•
Weight: 1.6 grams (approximate)
Ordering Information
(Notes 2 & 3)
Part Number
Case
Packaging
SBR30A100CTB TO263
(D
2
Pak) 50
Pieces/Tube
SBR30A100CTB-13 TO263
(D
2
Pak) 800/Tape
&
Reel
SBR30A100CTB-G TO263
(D
2
Pak) 50
Pieces/Tube
SBR30A100CTB-13-G TO263
(D
2
Pak) 800/Tape
&
Reel
Notes:
1. EU Directive 2002/95/EC (RoHS). All applicable RoHS exemptions applied, see EU Directive 2002/95/EC Annex Notes
2. For Green Molding Compound version part numbers, add "-G" suffix to part number above. Examples: SBR30A100CTB-G.
3. For packaging details, go to our website at
Marking Information
Top View
Package Pin Out Configuration
SBR30A100CTB = Product Type Marking Code
AB = Foundry and Assembly Code
YYWW = Date Code Marking
YY = Last two digits of year (ex: 09 = 2009)
WW = Week (01 - 53)
