SBR3045SCTB
Document number: DS31666 Rev. 4 - 2
1 of 4
July 2011
© Diodes Incorporated
SBR3045SCTB
SBR is a registered trademark of Diodes Incorporated.
30A SBR
®
SUPER BARRIER RECTIFIER
Features
•
Designed as Bypass Diodes for Solar Panels
•
Selectively Rated for 200ºC Maximum Junction Temperature
for High Thermal Reliability.
•
Patented Super Barrier Rectifier Technology
•
Soft, Fast Switching Capability
•
175ºC Operating Junction Temperature
•
Lead Free Finish, RoHS Compliant (Note 1)
•
Also Available in Green Molding Compound (Note 2)
Mechanical Data
• Case:
D
2
Pak
•
Case Material: Molded Plastic, UL Flammability Classification
Rating 94V-0
•
Terminals: Matte Tin Finish annealed over Copper leadframe.
Solderable per MIL-STD-202, Method 208
•
Weight: 1.6 grams (approximate)
Ordering Information
(Notes 2 & 3)
Part Number
Case
Packaging
SBR3045SCTB D
2
Pak 50
pieces/tube
SBR3045SCTB-G D
2
Pak 50
pieces/tube
SBR3045SCTB-13 D
2
Pak 800/Tape
&
Reel
SBR3045SCTB-13-G D
2
Pak 800/Tape
&
Reel
Notes:
1. EU Directive 2002/95/EC (RoHS). All applicable RoHS exemptions applied, see EU Directive 2002/95/EC Annex Notes
2. For Green Molding Compound version part numbers, add "-G" suffix to part number above. Examples: SBR3045SCTB-G.
3. For packaging details, go to our website at

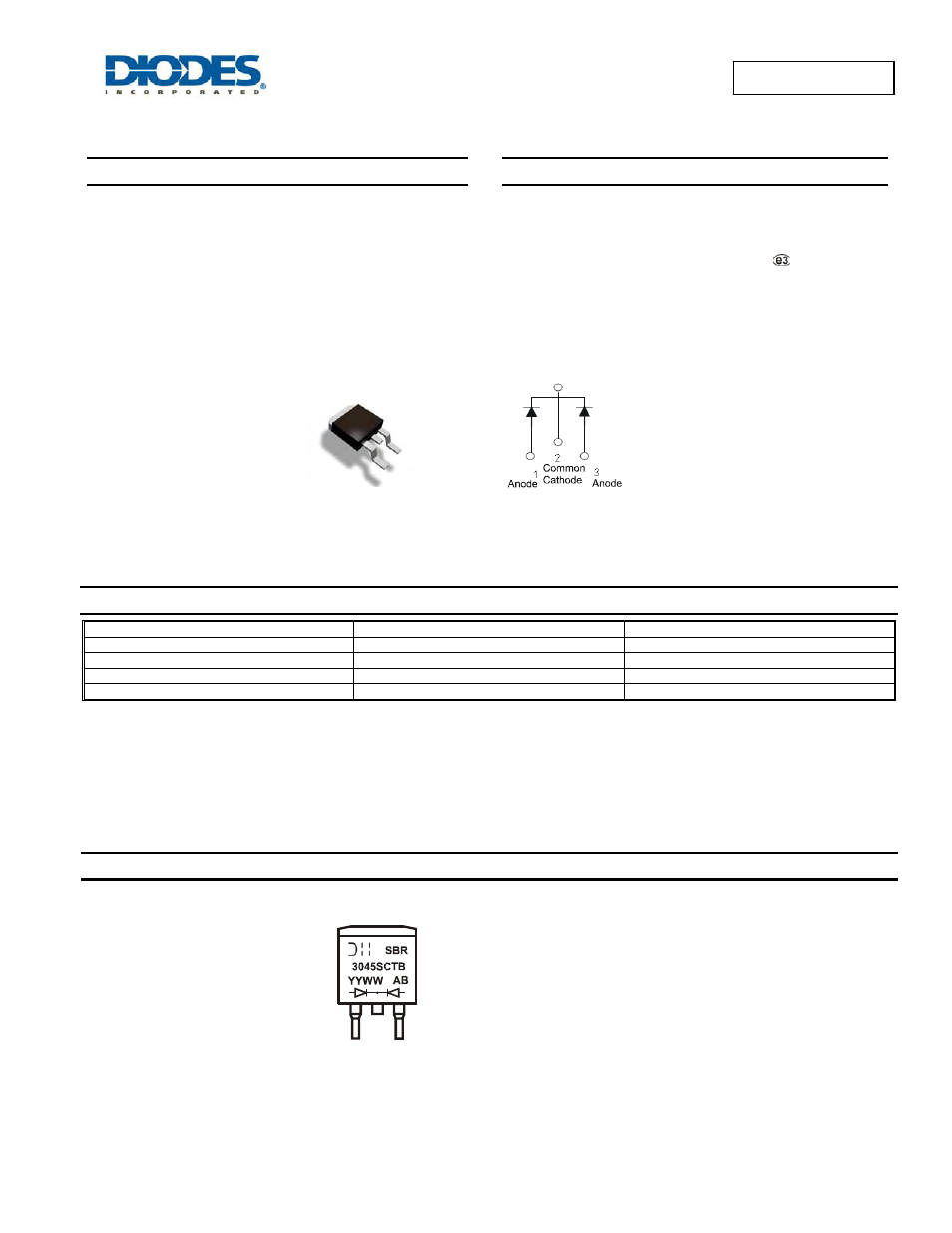

Marking Information
Top View
Package Pin-Out Configuration
SBR3045SCTB = Product Type Marking Code
AB = Foundry and Assembly Code
YYWW = Date Code Marking
YY = Last two digits of year (ex: 08 = 2008)
WW = Week (01 - 53)
