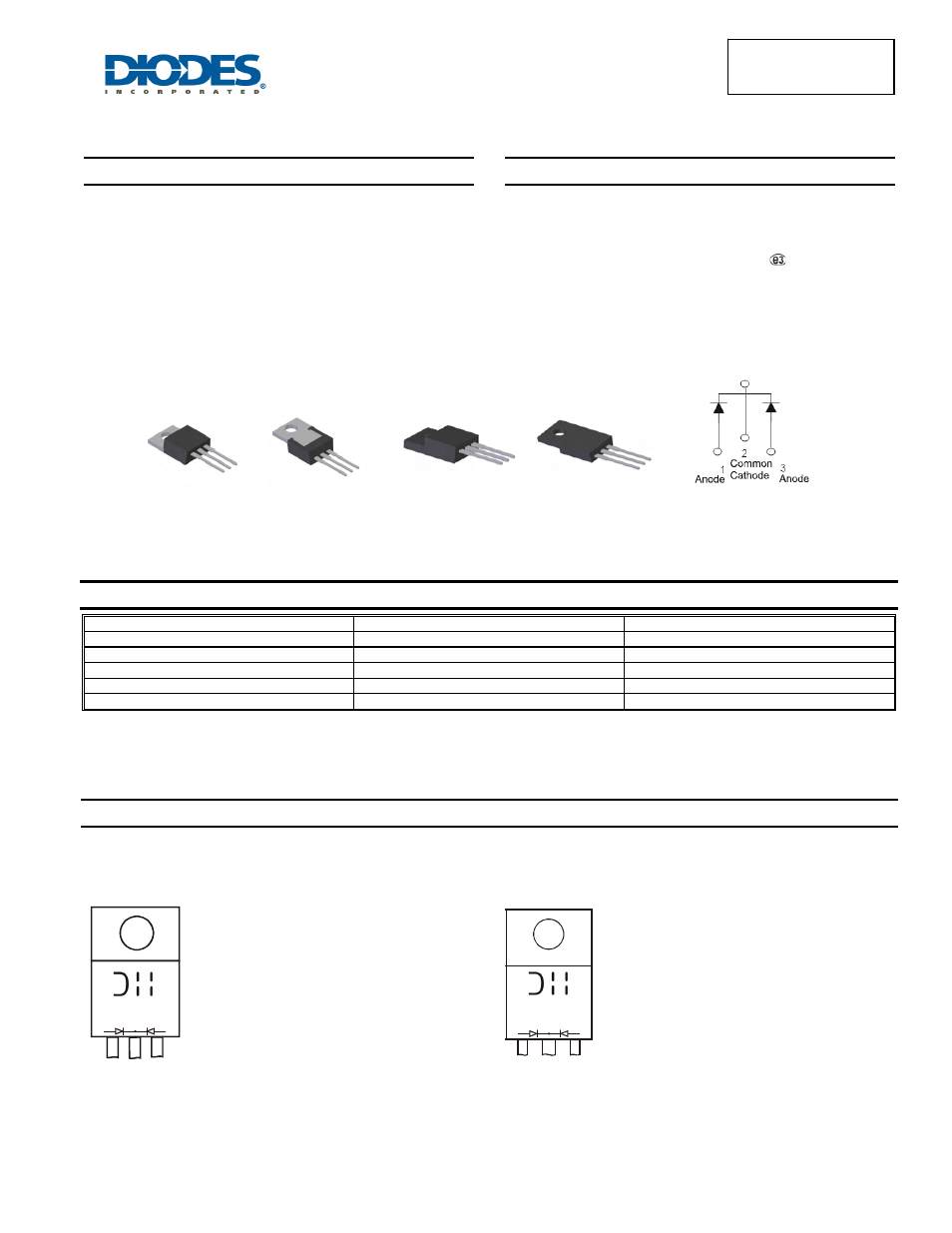

SBR3040
Document number: DS30972 Rev.5 - 2
1 of 5
October 2011
© Diodes Incorporated
SBR3040CT
SBR3040CTFP
SBR is a registered trademark of Diodes Incorporated.
30A SBR
®
SUPER BARRIER RECTIFIER
Features
•
Low Forward Voltage Drop
•
Excellent High Temperature Stability
•
Patented Super Barrier Rectifier Technology
•
Soft, Fast Switching Capability
•
Lead Free Finish, RoHS Compliant (Note 1)
•
Also Available in Green Molding Compound (Note 2)
Mechanical Data
•
Case: TO-220AB, ITO-220AB
•
Case Material: Molded Plastic, UL Flammability Classification
Rating 94V-0
•
Terminals: Matte Tin Finish annealed over Copper leadframe.
Solderable per MIL-STD-202, Method 208
•
Weight: TO-220AB – 1.85 grams (approximate)
ITO-220AB – 1.65 grams (approximate)
Ordering Information
(Notes 2 & 3)
Part Number
Case
Packaging
SBR3040CT TO-220AB 50
pieces/tube
SBR3040CT-G TO-220AB 50
pieces/tube
SBR3040CTFP ITO-220AB 50
pieces/tube
SBR3040CTFP-G ITO-220AB 50
pieces/tube
SBR3040CTFP-JT
ITO-220AB (Alternate)
50 pieces/tube
Notes:
1. EU Directive 2002/95/EC (RoHS). All applicable RoHS exemptions applied, see EU Directive 2002/95/EC Annex Notes.
2. For Green Molding Compound version part numbers, add "-G" suffix to part number above. Examples: SBR3040CT-G.
3. For packaging details, go to our website at
Marking Information
TO-220AB
Top View
ITO-220AB
Top View
Package Pin Out
Configuration
TO-220AB
Bottom View
ITO-220AB
Bottom View
SBR3040CTFP = Product Type Marking Code
AB = Foundry and Assembly Code
YYWW = Date Code Marking
YY = Last two digits of year (ex: 06 = 2006)
WW = Week (01 - 53)
SBR3040CT = Product Type Marking Code
AB = Foundry and Assembly Code
YYWW = Date Code Marking
YY = Last two digits of year( ex: 06 = 2006)
WW = Week (01 - 53)
YYWW
AB
SBR3040CTFP
SBR3040CT
YYWW
AB
