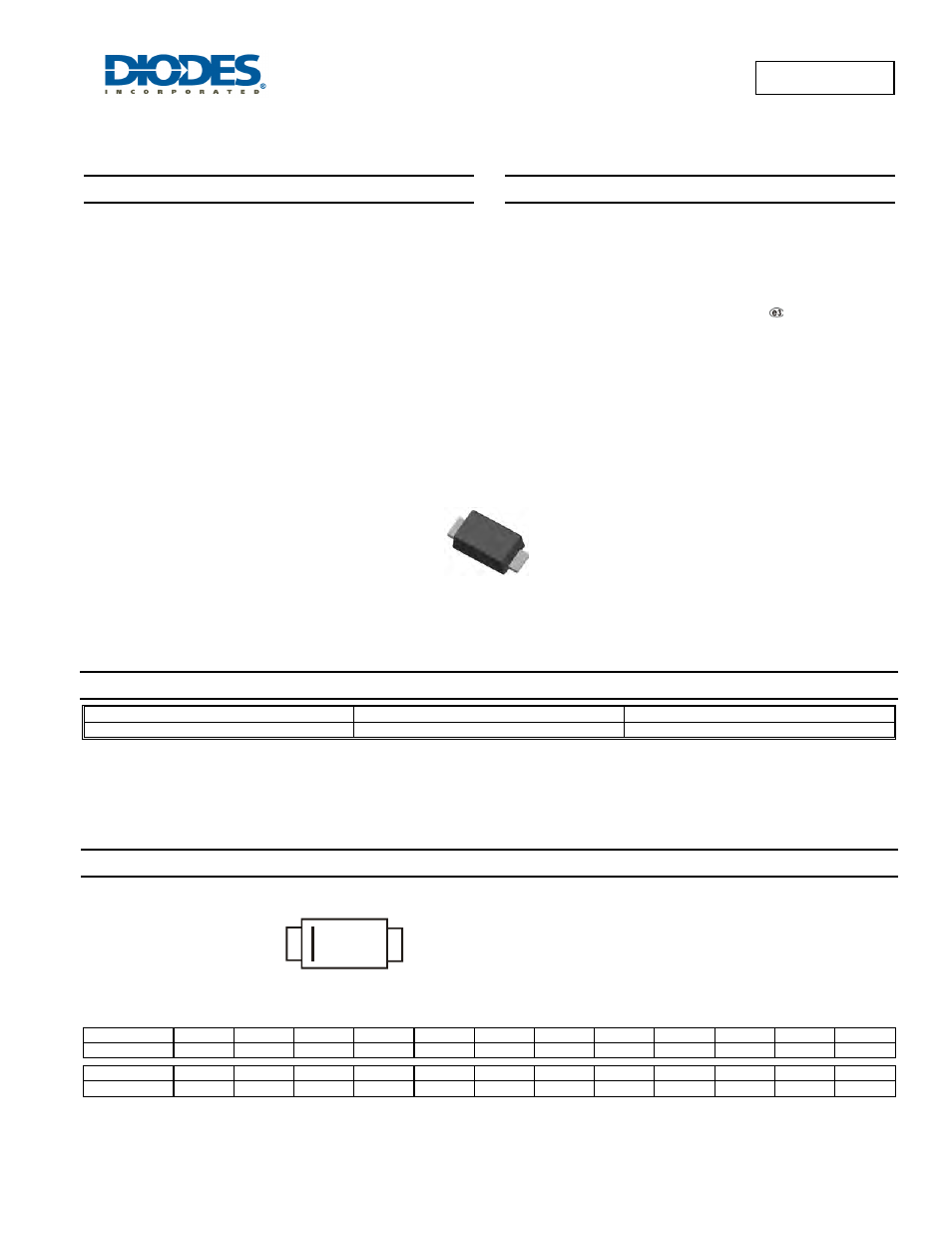

SBR2U30P1
Document number: DS30706 Rev. 7 - 2
1 of 5
March 2012
© Diodes Incorporated
SBR2U30P1
SBR and POWERDI are registered trademarks of Diodes Incorporated.
2.0A SBR
®
SUPER BARRIER RECTIFIER
POWERDI
®
123
Features
•
Ultra Low Forward Voltage Drop
•
Superior Reverse Avalanche Capability
•
Patented Interlocking Clip Design for High Surge Current
Capacity
•
Patented Super Barrier Rectifier Technology
•
Soft, Fast Switching Capability
•
150ºC Operating Junction Temperature
•
±16KV ESD Protection (HBM, 3B)
•
±25KV ESD Protection (IEC61000-4-2 Level 4, Air Discharge)
•
Lead Free Finish, RoHS Compliant (Note 1)
•
“Green” Molding Compound (No Br, Sb)
•
Qualified to AEC-Q 101 Standards for High Reliability
Mechanical Data
• Case:
POWERDI
®
123
•
Case Material: Molded Plastic, “Green” Molding Compound. UL
Flammability Classification Rating 94V-0
•
Moisture Sensitivity: Level 1 per J-STD-020
•
Polarity Indicator: Cathode Band
•
Terminals: Matte Tin Finish annealed over Copper leadframe.
Solderable per MIL-STD-202, Method 208
•
Weight: 0.018 grams (approximate)
Ordering Information
(Note 2)
Part Number
Case
Packaging
SBR2U30P1-7 POWERDI
®
123
3000/Tape & Reel
Notes:
1. EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2). All applicable RoHS exemptions applied
2. For packaging details, go to our website at
Marking Information
Date Code Key
Year
2006
2007
2008
2009
2010
2011
2012
2013
2014
2015
2016
2017
Code
T
U
V
W X Y Z A B C D E
Month
Jan
Feb
Mar
Apr
May
Jun
Jul
Aug
Sep
Oct
Nov
Dec
Code
1
2
3
4
5
6
7
8
9
O
N
D
Top View
POWERDI
®
123
2U3 = Product Type Marking Code
YM = Date Code Marking
Y = Year (ex: T = 2006)
M = Month (ex: 9 = September)
2U3
YM
