SBR20100CTE
SBR is a registered trademark of Diodes Incorporated.
20A SBR
®
SUPER BARRIER RECTIFIER
Features
•
Low Forward Voltage Drop
•
Excellent High Temperature Stability
•
Patented Super Barrier Rectifier Technology
•
Soft, Fast Switching Capability
•
Lead Free Finish, RoHS Compliant (Note 1)
•
Also Available in Green Molding Compound (Note 2)
Mechanical Data
• Case:
TO262
•
Case Material: Molded Plastic, UL Flammability Classification
Rating 94V-0
•
Terminals: Matte Tin Finish annealed over Copper leadframe.
Solderable per MIL-STD-202, Method 208
•
Weight: 1.355 grams (approximate)
Ordering Information
(Notes 2 & 3)
Part Number
Case
Packaging
SBR20100CTE TO262 50
pieces/tube
SBR20100CTE-G TO262 50
pieces/tube
Notes:
1. EU Directive 2002/95/EC (RoHS). All applicable RoHS exemptions applied, see EU Directive 2002/95/EC Annex Notes.
2. For Green Molding Compound version part numbers, add "-G" suffix to part number above. Examples: SBR20100CTE-G.
3. For packaging details, go to our website at
Marking Information

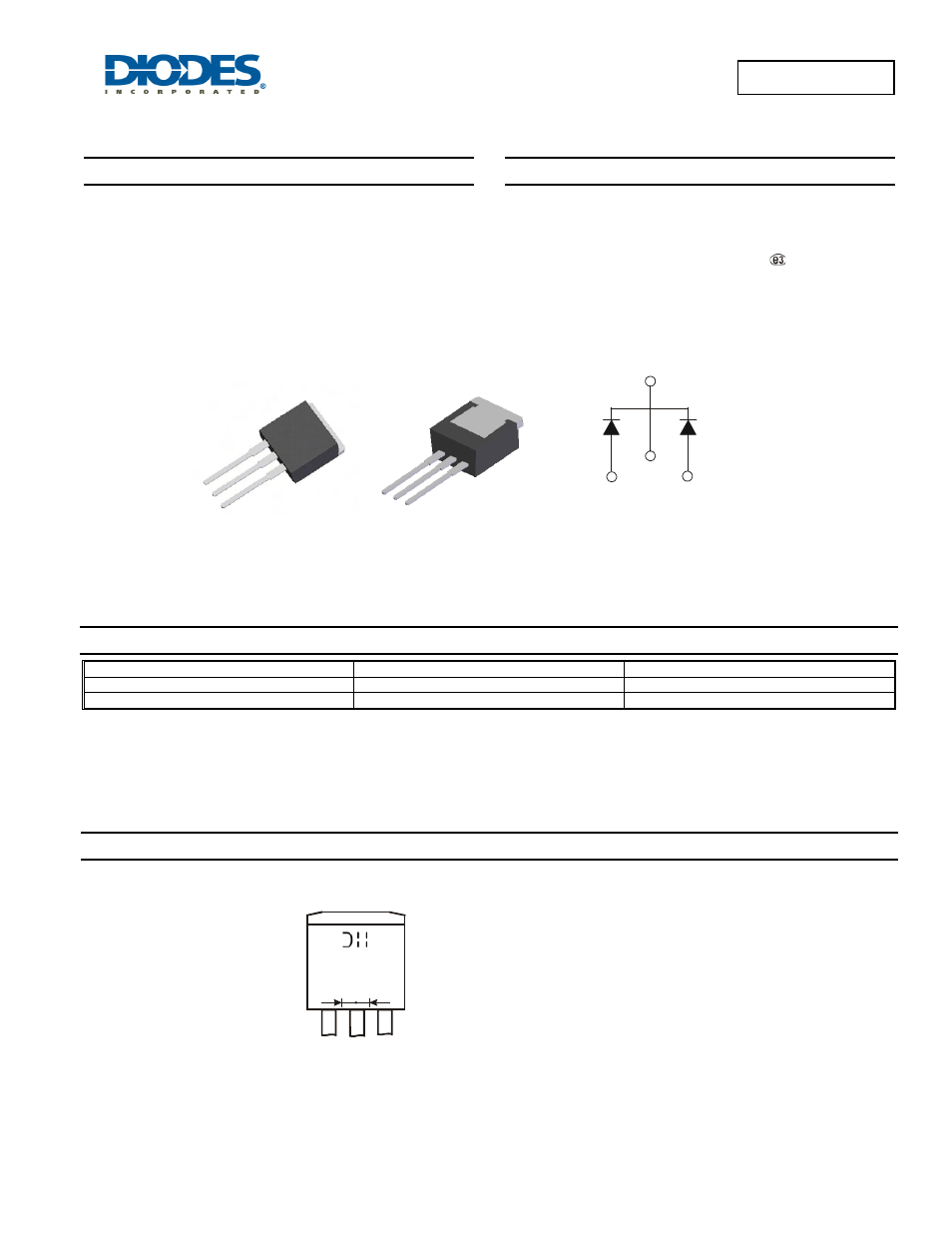

Top View
Bottom View
Package Pin Out
Configuration
1
2
3
Anode
Common
Cathode
Anode
TO262
SBR20100CTE = Product Type Marking Code
AB = Foundry and Assembly Code
YYWW = Date Code Marking
YY = Last two digits of year (ex: 08 = 2008)
WW = Week (01 - 53)
YYWW
AB
SBR20100CTE
