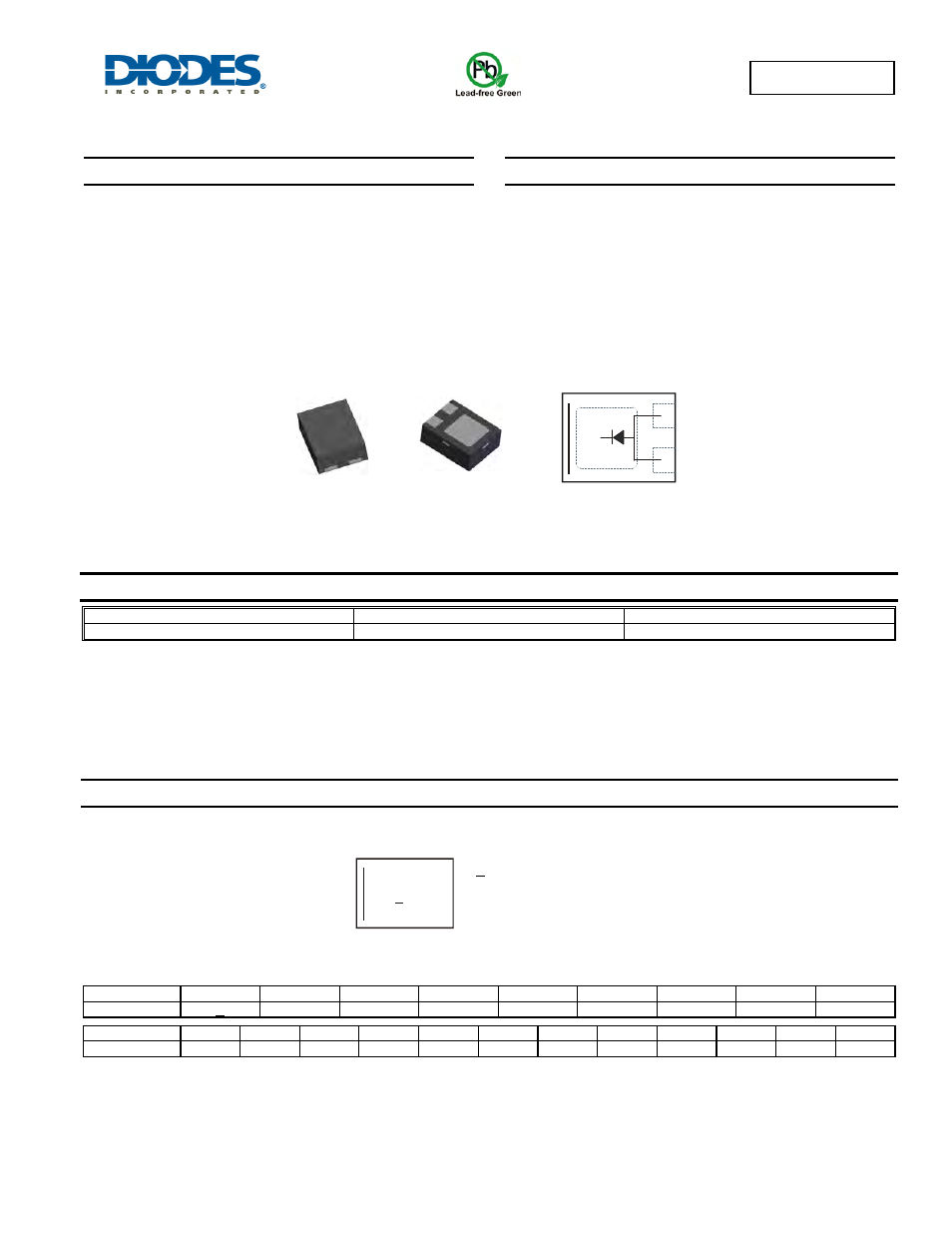

SBR1U40LP
Document number: DS31108 Rev. 13 - 2
1 of 5
February 2012
© Diodes Incorporated
SBR1U40LP
SBR is a registered trademark of Diodes Incorporated.
1.0A SBR
®
SUPER BARRIER RECTIFIER
Features
•
Ultra Low Forward Voltage Drop
•
Excellent High Temperature Stability
•
Patented Super Barrier Rectifier Technology
•
Soft, Fast Switching Capability
•
150ºC Operating Junction Temperature
•
Lead Free By Design, RoHS Compliant (Note 1)
•
Halogen and Antimony Free "Green" Device (Notes 2 & 3)
Mechanical Data
• Case:
X1-DFN1411-3
•
Case Material: Molded Plastic, “Green” Molding Compound.
UL Flammability Classification Rating 94V-0
•
Moisture Sensitivity: Level 1 per J-STD-020
•
Terminal Connections: See Diagram
•
Terminals: Finish – NiPdAu over Copper Lead Frame.
Solderable per MIL-STD-202, Method 208
•
Weight: 2.35mg (approximate)
Ordering Information
(Note 4)
Part Number
Case
Packaging
SBR1U40LP-7
X1-DFN1411-3
3000/Tape & Reel
Notes:
1. EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant. No purposely added lead. Halogen and Antimony free.
2. Halogen and Antimony free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
3. Diodes Inc.'s "Green" policy can be found on our w
Marking Information
Date Code Key
Year
2007
2008
2009
2010
2011
2012
2013 2014 2015
Code
U V W X Y Z A B C
Month
Jan
Feb
Mar
Apr
May
Jun
Jul
Aug
Sep
Oct
Nov
Dec
Code 1 2 3 4 5 6 7 8 9 O N D
Top View
Bottom View
Top View
Internal Schematic
1
2
3
D4 = Product Type Marking Code
YM = Date Code Marking
Y = Year (ex: U = 2007)
M = Month (ex: 9 = September)
D4
YM
X1-DFN1411-3
