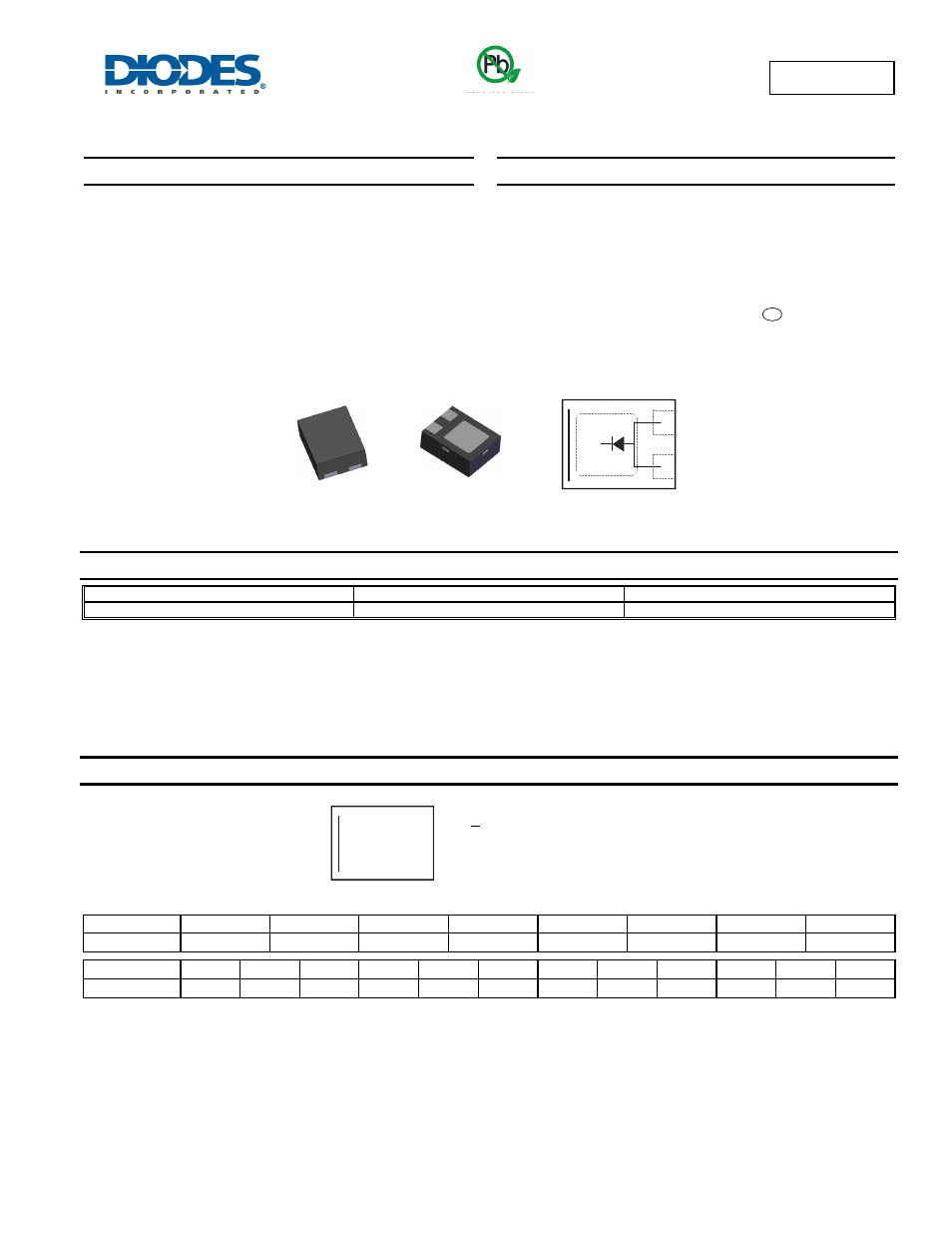

SBR140LP
Document number: DS31404 Rev. 3 - 2
1 of 4
www.diodes.com
November 2013
© Diodes Incorporated
SBR140LP
SBR is a registered trademark of Diodes Incorporated.
1.0A SBR ®
SUPER BARRIER RECTIFIER
Features
• Ultra Low Forward Voltage Drop
• Excellent High Temperature Stability
• Patented Super Barrier Rectifier Technology
• Soft, Fast Switching Capability
• +150°C Operating Junction Temperature
• Lead-Free Finish; RoHS Compliant (Notes 1, 2 & 3)
• Halogen and Antimony Free. “Green” Device (Note 4)
Mechanical Data
• Case: X1-DFN1411-3
• Case Material: Molded Plastic, “Green” Molding Compound. UL
Flammability Classification Rating 94V-0
• Moisture Sensitivity: Level 1 per J-STD-020D
• Terminal Connections: See Diagram
• Terminals: Finish - Matte Tin annealed over Copper lead frame.
Solderable per MIL-STD-202, Method 208
• Weight: 2.35 grams (approximate)
Ordering Information
(Note 5)
Part Number Case Packaging
SBR140LP-7 X1-DFN1411-3 3000/Tape & Reel
Notes: 1. EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant. All applicable RoHS exemptions applied.
2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green"
and Lead-free.
3. Device mounted on polymide substrate 1”*1”,2oz. Copper double sided PCB board.
4. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
5. For packaging details, go to our website at http://www.diodes.com/products/packages.html.
Marking Information
Date Code Key
Year 2008 2009 2010 2011 2012 2013 2014 2015
Code V W X Y Z A B C
Month Jan Feb Mar Apr May Jun Jul Aug Sep Oct Nov Dec
Code 1 2 3 4 5 6 7 8 9 O N D
Green
e3
Top View Bottom View Top View
Internal Schematic
1
2
3
D4, D4= Product Type Marking Code
YM = Date Code Marking
Y = Year ex: A = 2013
M = Month (ex: 9 = September)
D4
YM
