SBR130SV
NEW PROD
UC
T
SBR is a registered trademark of Diodes Incorporated.
1.0A SBR ®
SUPER BARRIER RECTIFIER
Features
 Low Leakage Current
 Excellent High Temperature Stability
 Patented Super Barrier Rectifier Technology
 Soft, Fast Switching Capability
 150°C Operating Junction Temperature
 Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
 Halogen and Antimony Free. “Green” Device (Note 3)
Mechanical Data
 Case: SOT563
 Case Material: Molded Plastic, “Green” Molding Compound.
UL Flammability Classification Rating 94V-0
 Moisture Sensitivity: Level 1 per J-STD-020
 Terminals: Matte Tin Finish annealed over Alloy 42 leadframe.
Solderable per MIL-STD-202, Method 208
 Terminal Connections: See Diagram
 Weight: 0.003 grams (approximate)
Ordering Information
(Note 4)
Part Number Case Packaging
SBR130SV-7 SOT563 3000/Tape & Reel
Notes: 1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant.
2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green"
and Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
4. For packaging details, go to our website at http”//www.diodes.com/products/packages.html.
Marking Information
Date Code Key
Year 2013 2014 2015 2016 2017 2018 2019
Code A B C D E F G
Month Jan Feb Mar Apr May Jun Jul Aug Sep Oct Nov Dec
Code 1 2 3 4 5 6 7 8 9 O N D
1 3 = Product Type Marking Code
YM = Date Code Marking
Y = Year (ex: A = 2013)
M = Month ex: 9 = September
Dot denotes cathode pin 1
e3

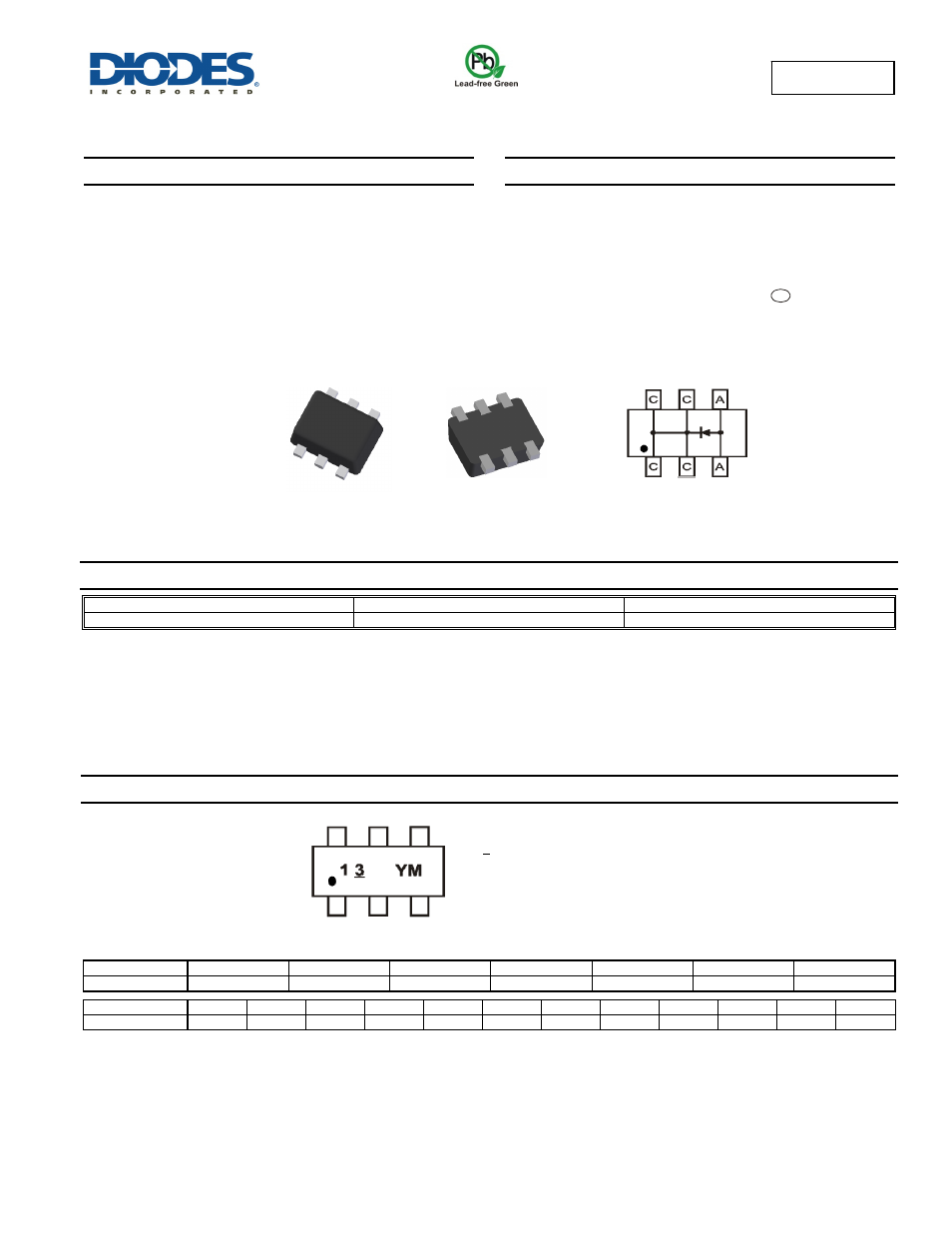

Top View Bottom View
Top View Internal
Schematic
Dot denotes cathode pin 1
