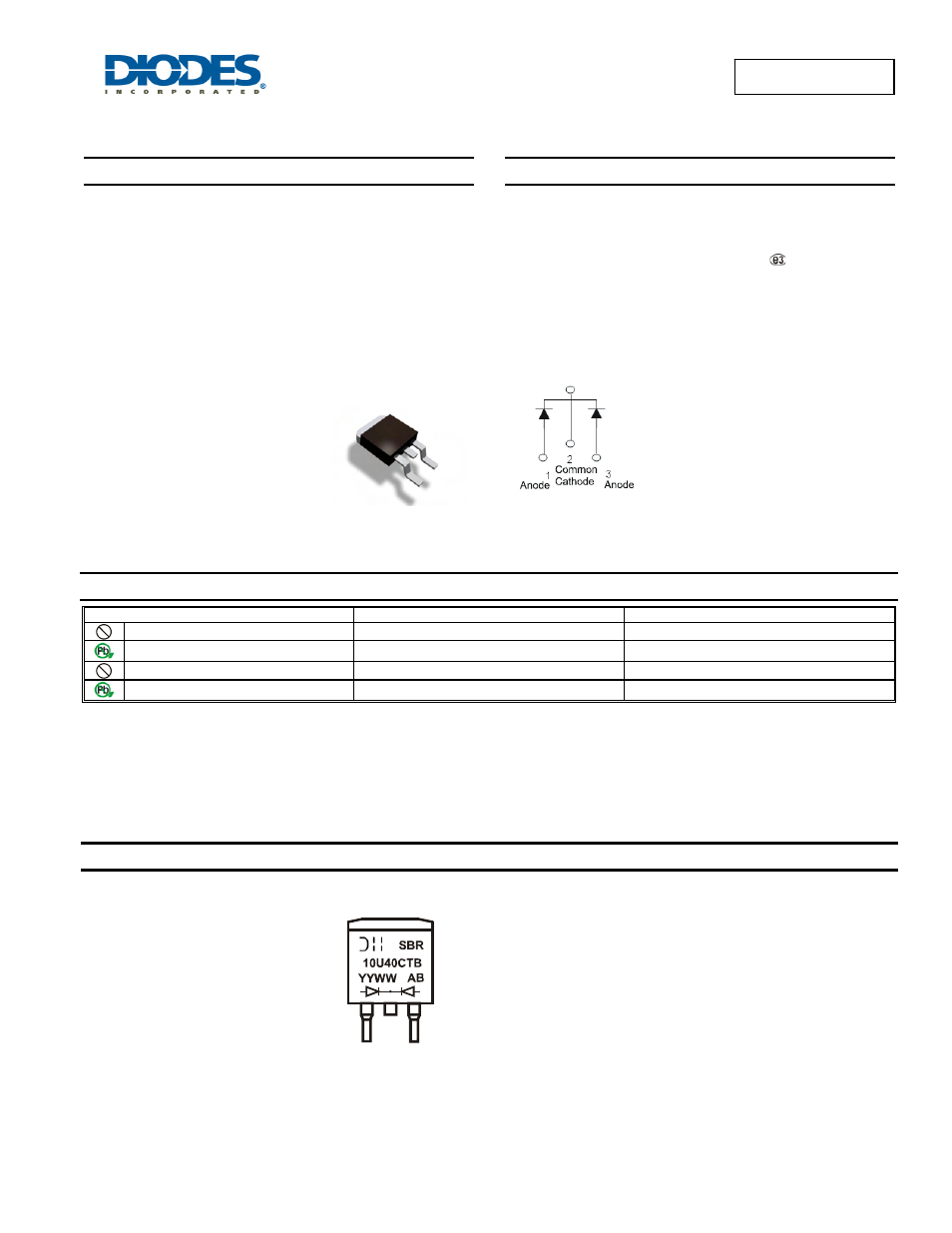

SBR10U40CTB

Document number: DS35433 Rev. 2 - 2

1 of 4

www.diodes.com

June 2012

© Diodes Incorporated

SBR10U40CTB

SBR is a registered trademark of Diodes Incorporated.

ADVAN

CE I

N

F

O

RM

ATI

O

N


10A SBR

®

SUPER BARRIER RECTIFIER

Features

Ultra Low Forward Voltage Drop

Excellent High Temperature Stability

Patented Super Barrier Rectifier Technology

Soft, Fast Switching Capability

Lead-Free Finish; RoHS Compliant (Notes 1 & 2)

Also Available in Green Molding Compound

Halogen and Antimony Free. “Green” Device (Note 3)

Mechanical Data

Case: TO263 (D

2

Pak)

Case Material: Molded Plastic, UL Flammability Classification
Rating 94V-0

Terminals: Matte Tin Finish annealed over Copper leadframe.
Solderable per MIL-STD-202, Method 208

Weight: 1.6 grams (approximate)


















Ordering Information

(Notes 4 and 5)

Part Number

Case

Packaging

Pb

SBR10U40CTB TO263

50

pieces/tube

Green

SBR10U40CTB-G TO263

50

pieces/tube

Pb

SBR10U40CTB-13 TO263

800/Tape

&

Reel

Green

SBR10U40CTB-13-G TO263

800/Tape

&

Reel

Notes:

1. EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant. All applicable RoHS exemptions applied.

2. See http://www.diodes.com for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green" and Lead-free.



3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
4. For Green Molding Compound version part numbers, add "-G" suffix to part number above. Examples: SBR10U40CTB-G.
5. For packaging details, go to our website at http://www.diodes.com.



Marking Information




















Top View

Package Pin Out

Configuration

TO263

SBR10U40CTB = Product Type Marking Code
AB = Foundry and Assembly Code
YYWW = Date Code Marking
YY = Last two digits of year (ex: 06 = 2006)
WW = Week (01 - 53)
