SBR05U20LPS
Ordering Information
(Note 5)
Part Number
Case
Packaging
SBR05U20LPS-7
DFN1006H4-2
3000/Tape & Reel
Notes:
5. For packaging details, go to our w.
SBR05U20LPS
Document number: DS31357 Rev. 1 - 2
3 of 3
www.diodes.com
January 2008
© Diodes Incorporated
NEW PRODUCT
SBR is a re
Marking Information
5
5 2 = Product Type Marking Code
Dot Denotes Cathode Side
5 2
_
_

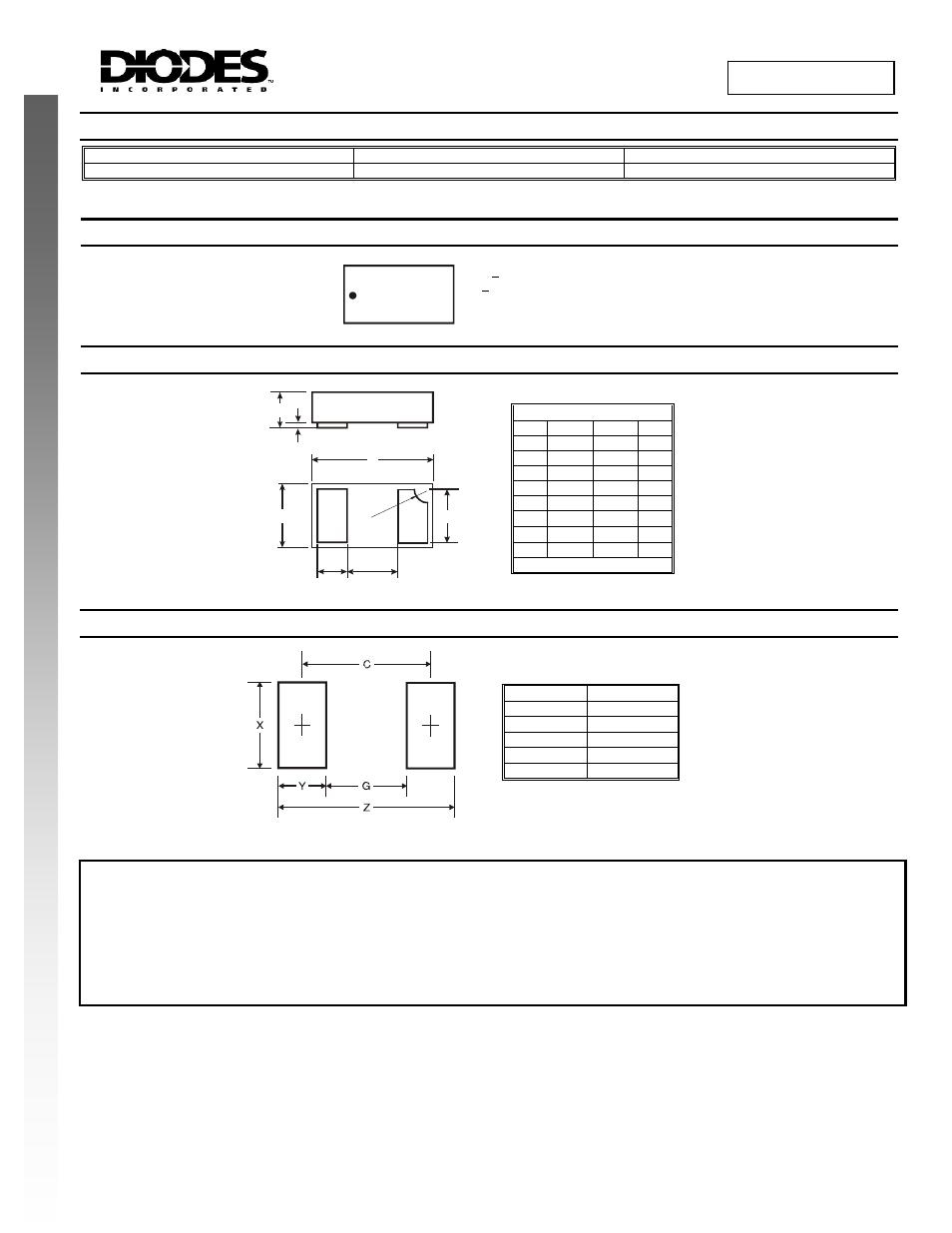

Package Outline Dimensions
gistered trademark of Diodes Incorporated.
Suggested Pad Layout
IMPORTANT NOTICE
Diodes Incorporated and its subsidiaries reserve the right to make modifications, enhancements, improvements, corrections or other changes
without further notice to any product herein. Diodes Incorporated does not assume any liability arising out of the application or use of any product
described herein; neither does it convey any license under its patent rights, nor the rights of others. The user of products in such applications shall
assume all risks of such use and will agree to hold Diodes Incorporated and all the companies whose products are represented on our website,
harmless against all damages.
LIFE SUPPORT
Diodes Incorporated products are not authorized for use as critical components in life support devices or systems without the expressed written
approval of the President of Diodes Incorporated.
D
B
C
R
N
A
H
G
DFN1006H4-2
Dim
Min
Max
Typ
A
0.95
1.075
1.00
B
0.55
0.675
0.60
C
0.45
0.55
0.50
D
0.20
0.30
0.25
G
0.34
0.4
0.37
H
0
0.05
0.03
N
⎯
⎯
0.40
R
0.05 0.15 0.10
All Dimensions in mm
Dimensions
Value (in mm)
Z
1.1
G
0.3
X
0.7
Y
0.4
C 0.7
