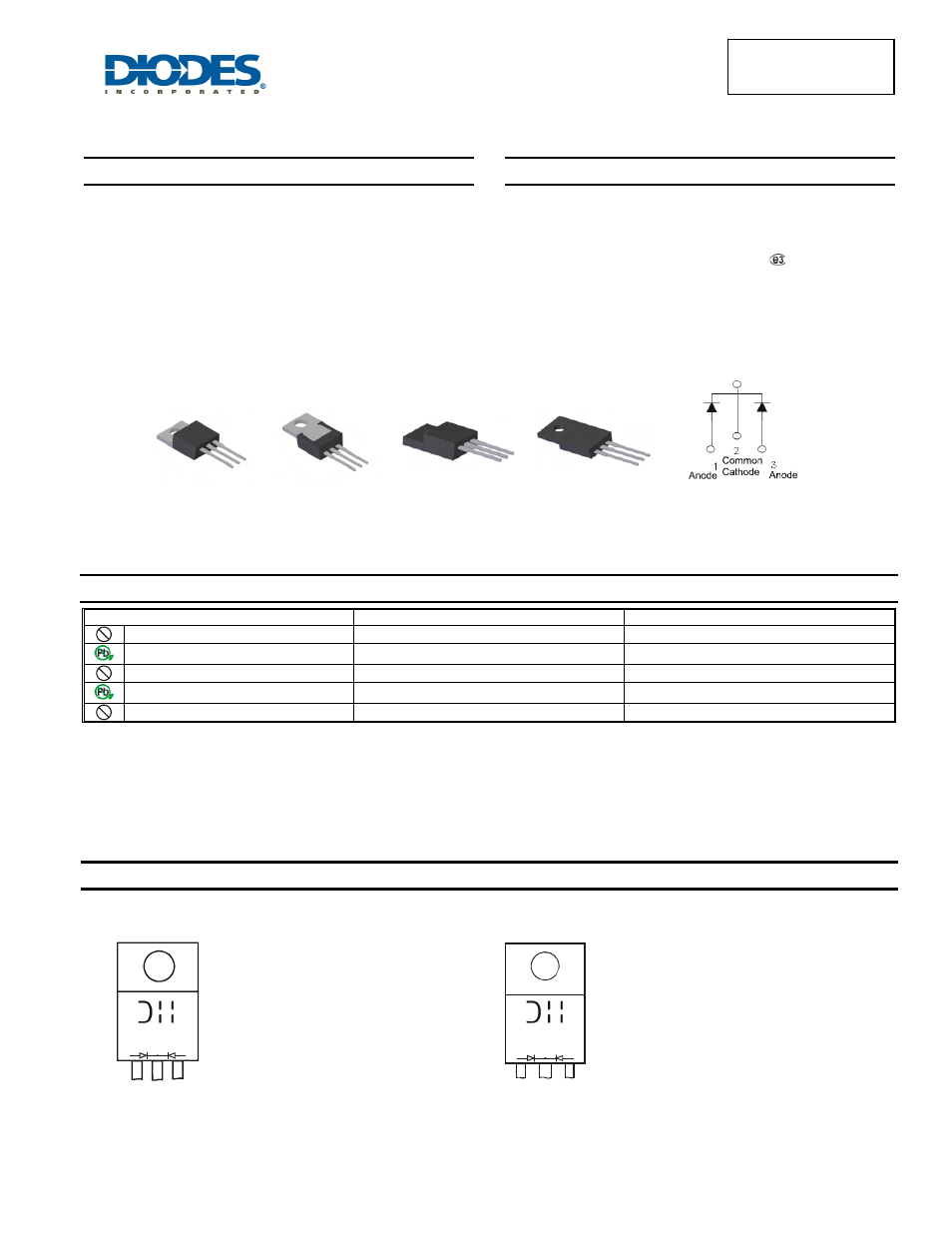

SBR10100CT
SBR10100CTFP
10A SBR
®
SUPER BARRIER RECTIFIER
Features
•
Low Forward Voltage Drop
•
Excellent High Temperature Stability
•
Patented Super Barrier Rectifier Technology
•
Soft, Fast Switching Capability
•
± 16 KV ESD Protection (HBM, 3B)
•
Lead-Free Finish; RoHS Compliant (Notes 1 & 2)
•
Also Available in Green Molding Compound
•
Halogen and Antimony Free. “Green” Device (Note 3)
Mechanical Data
•
Case: TO-220AB, ITO-220AB
•
Case Material: Molded Plastic, UL Flammability Classification
Rating 94V-0
•
Terminals: Matte Tin Finish annealed over Copper leadframe.
Solderable per MIL-STD-202, Method 208
•
Weight: 1.85 grams TO-220AB (approximate)
1.65 grams ITO-220AB (approximate)
Ordering Information
(Notes 4 and 5)
Part Number
Case
Packaging
Pb
SBR10100CT TO-220AB
50
pieces/tube
Green
SBR10100CT-G TO-220AB
50
pieces/tube
Pb
SBR10100CTFP ITO-220AB
50
pieces/tube
Green
SBR10100CTFP-G ITO-220AB
50
pieces/tube
Pb
SBR10100CTFP-JT
ITO-220AB (Alternate)
50 pieces/tube
Notes:
1. EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant. All applicable RoHS exemptions applied.
2. Se information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green" and Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
4. For Green Molding Compound version part numbers, add "-G" suffix to part number above. Examples: SBR10100CT-G.
5. For packaging details, go to our website at
Marking Information
Package Pin-Out
Configuration
TO-220AB
Top View
ITO-220AB
Top View
TO-220AB
Bottom View
ITO-220AB
Bottom View
SBR10100CT = Product Type Marking Code
AB = Foundry and Assembly Code
YYWW = Date Code Marking
YY = Last two digits of year (ex: 06 = 2006)
WW = Week (01 - 53)
SBR10100CTFP = Product Type Marking Code
AB = Foundry and Assembly Code
YYWW = Date Code Marking
YY = Last two digits of year (ex: 06 = 2006)
WW = Week (01 - 53)
YYWW
AB
SBR10100CTFP
SBR10100CT
YYWW
AB
