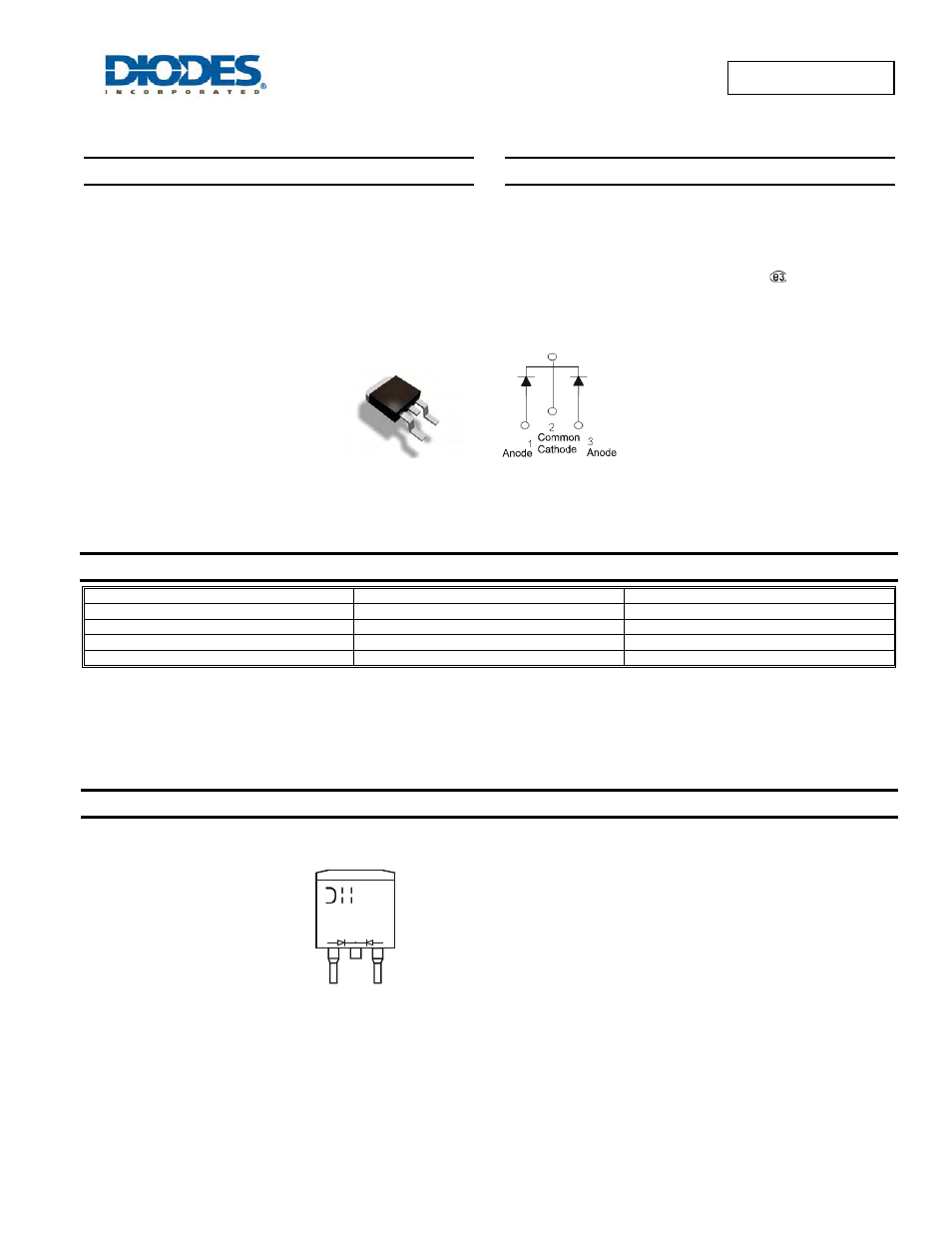

Diodes SBR10100CTB User Manual
Features, Mechanical data, Ordering information

SBR10100CTB
Document number: DS31515 Rev. 4 - 2
1 of 4
July 2011
© Diodes Incorporated
SBR10100CTB
SBR is a registered trademark of Diodes Incorporated.
10A SBR
®
SUPER BARRIER RECTIFIER
Features
•
Excellent High Temperature Stability
•
Patented Super Barrier Rectifier Technology
•
Soft, Fast Switching Capability
•
Lead Free Finish, RoHS Compliant (Note 1)
•
Also Available in Green Molding Compound (Note 2)
Mechanical Data
• Case:
D
2
Pak (TO-263)
•
Case Material: Molded Plastic, UL Flammability Classification
Rating 94V-0
•
Moisture Sensitivity: Level 1 per J-STD-020
•
Terminals: Matte Tin Finish annealed over Copper leadframe.
Solderable per MIL-STD-202, Method 208
•
Weight: 1.6 grams (approximate)
Ordering Information
(Notes 2 & 3)
Part Number
Case
Packaging
SBR10100CTB D
2
Pak (TO-263)
50 pieces/tube
SBR10100CTB-G D
2
Pak (TO-263)
50 pieces/tube
SBR10100CTB-13 D
2
Pak (TO-263)
800 / Tape & Reel
SBR10100CTB-13-G D
2
Pak (TO-263)
800 / Tape & Reel
Notes:
1. EU Directive 2002/95/EC (RoHS). All applicable RoHS exemptions applied, see EU Directive 2002/95/EC Annex Notes
2. For Green Molding Compound version part numbers, add "-G" suffix to part number above. Examples: SBR10100CTB-G.
3. For packaging details, go to our website at
Marking Information
Top View
Package Pin Out
Configuration
SBR10100CTB = Product Type Marking Code
AB = Foundry and Assembly Code
YYWW = Date Code Marking
YY = Last two digits of year (ex: 07 = 2007)
WW = Week (01 - 53)
YYWW
AB
10100CTB
SBR
