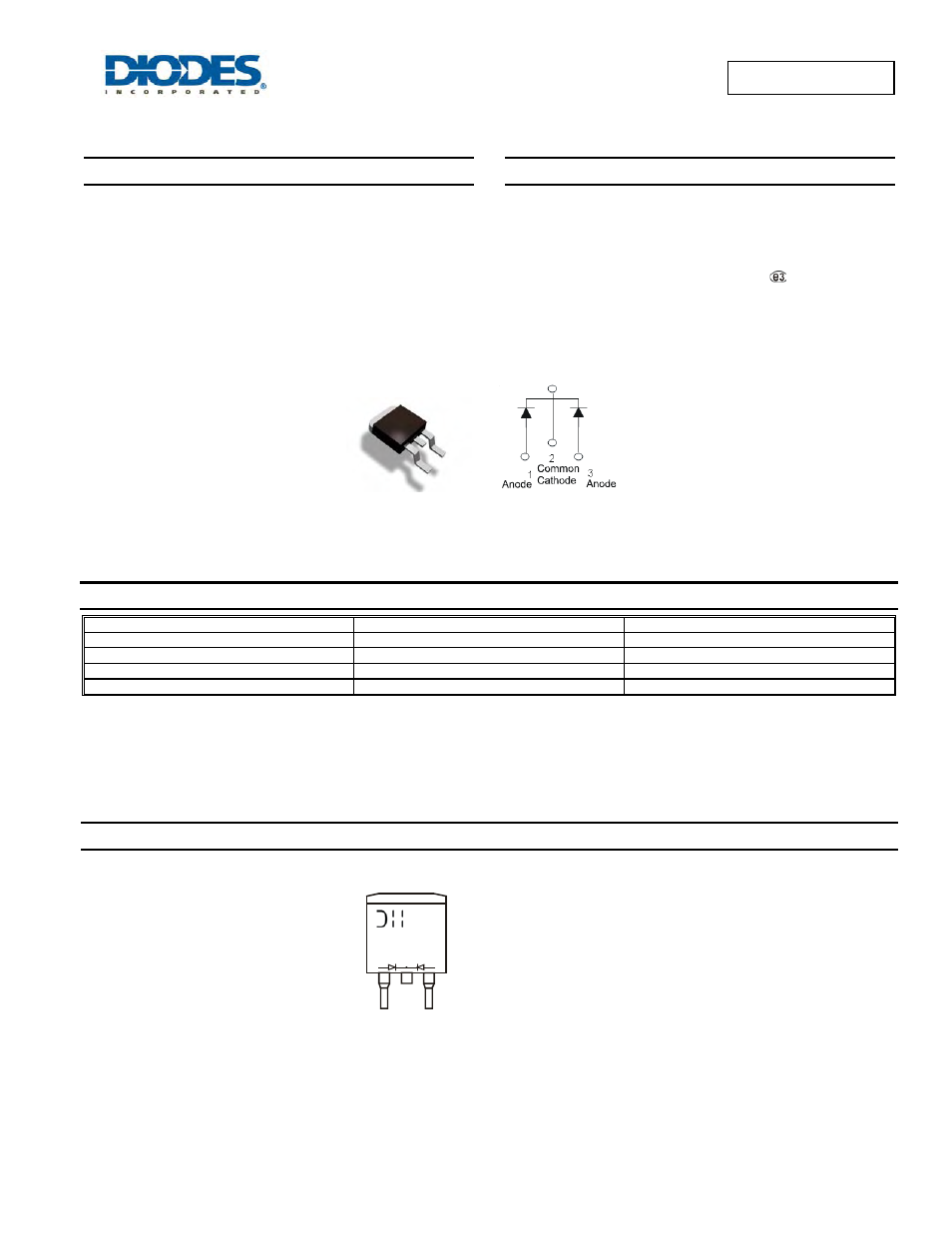

SBR10200CTB

SBR is a registered trademark of Diodes Incorporated.


10A SBR

®

SUPER BARRIER RECTIFIER

Features

Excellent High Temperature Stability

Patented Super Barrier Rectifier Technology

Soft, Fast Switching Capability

Lead Free Finish, RoHS Compliant (Note 1)

Also Available in Green Molding Compound (Note 2)

Mechanical Data

• Case:

D

2

PAK

Case Material: Molded Plastic, UL Flammability Classification
Rating 94V-0

Moisture Sensitivity: Level 1 per J-STD-020

Terminals: Matte Tin Finish annealed over Copper leadframe.
Solderable per MIL-STD-202, Method 208

Weight: 1.65 grams (approximate)



















Ordering Information

(Notes 2 and 3)

Part Number

Case

Packaging

SBR10200CTB D

2

Pak (TO-263)

50 pieces/tube

SBR10200CTB-13 D

2

Pak (TO-263)

800 / Tape & Reel

SBR10200CTB-G D

2

Pak (TO-263)

50 pieces/tube

SBR10200CTB-13-G D

2

Pak (TO-263)

800 / Tape & Reel

Notes:

1. EU Directive 2002/95/EC (RoHS). All applicable RoHS exemptions applied, see EU Directive 2002/95/EC Annex Notes
2. For Green Molding Compound version part numbers, add "-G" suffix to part number above. Examples: SBR10200CTB-G.
3. For packaging details, go to our website at http://www.diodes.com.






Marking Information





















SBR10200CTB = Product Type Marking Code
AB = Foundry and Assembly Code
YYWW = Date Code Marking
YY = Last two digits of year (ex: 08 = 2008)
WW = Week (01 - 53)

YYWW

AB

10200CTB

SBR

Package Pin Out

Configuration

D

2

PAK
