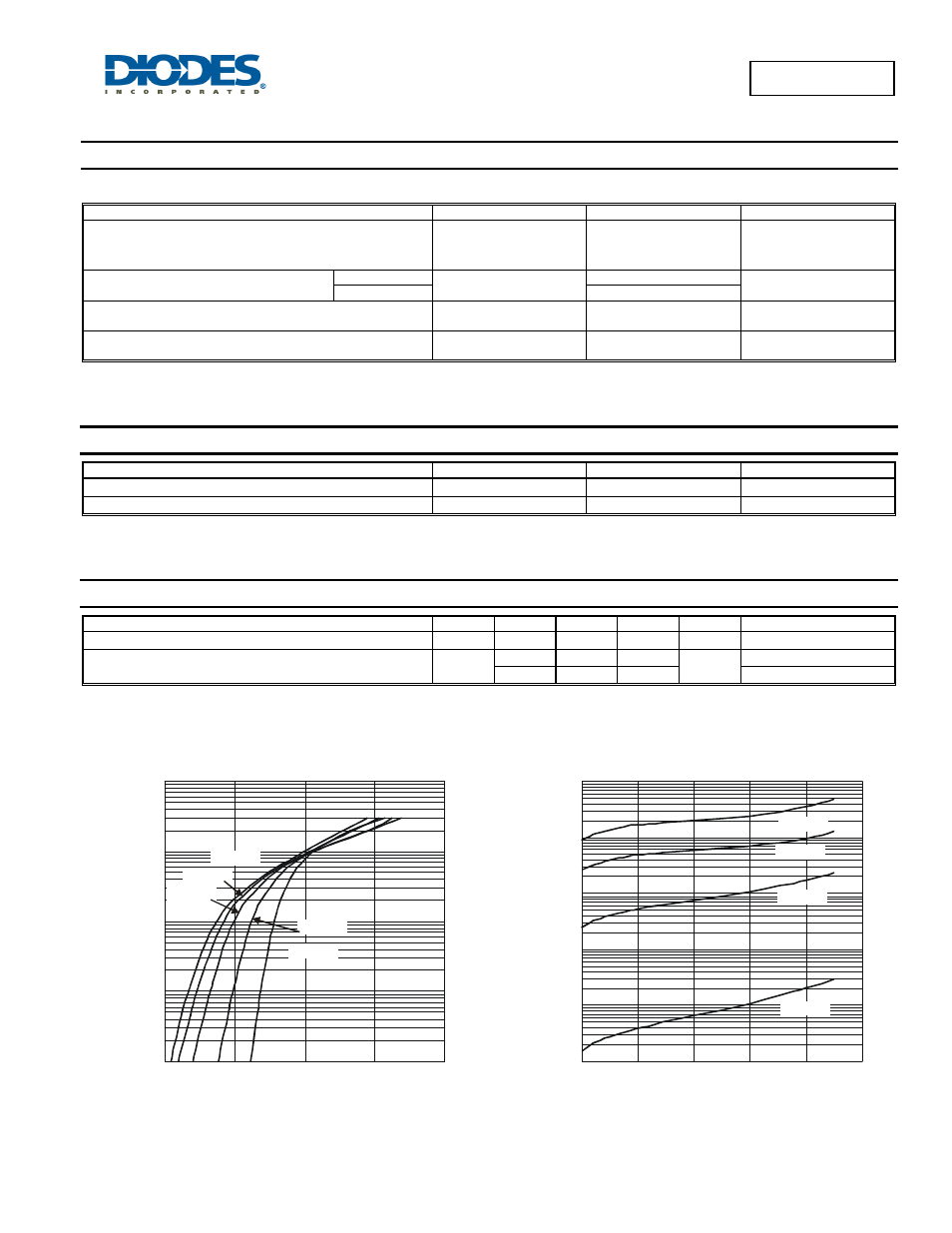

SBL1040CTP
Maximum Ratings (Per Leg)
@T
A
= 25°C unless otherwise specified
Single phase, half wave, 60Hz, resistive or inductive load.
For capacitance load, derate current by 20%.
Characteristic Symbol
Value
Unit
Peak Repetitive Reverse Voltage
Working Peak Reverse Voltage
DC Blocking Voltage
V
RRM
V
RWM
V
RM
40 V
Average Rectified Output Current
(Per Leg)
I
O
5
A
(Total)
10
Non-Repetitive Peak Forward Surge Current 8.3ms
Single Half Sine-Wave Superimposed on Rated Load
I
FSM
110 A
Isolation Voltage
From Terminal Heatsink t = 1 min.
V
AC
2000 V
Thermal Characteristics (Per Leg)
Characteristic Symbol
Value
Unit
Typical Thermal Resistance Junction to Case
R
θJC
3
°C/W
Operating and Storage Temperature Range
T
J
, T
STG
-65 to +150
ºC
Electrical Characteristics (Per Leg)
@T
A
= 25°C unless otherwise specified
Characteristic Symbol
Min
Typ
Max
Unit
Test
Condition
Forward Voltage Drop
V
F
- -
0.56
V
I
F
= 5A, T
J
= 25ºC
Leakage Current (Note 3)
I
R
- -
0.5
mA
V
R
= 40V, T
J
= 25ºC
- - 50
V
R
= 40V, T
J
= 100ºC
Notes:
3. Short duration pulse test used to minimize self-heating effect.
0
300
600
900
1,200
Fig. 1 Typical Forward Characteristics
V , INSTANTANEOUS FORWARD VOLTAGE (mV)
F
0.01
0.1
1
10
100
I,
I
N
S
T
A
N
T
A
N
E
O
U
S
F
O
R
WA
R
D
C
U
R
R
E
N
T
(A
)
F
T = 25°C
A
T = -55°C
A
T = 85°C
A
T = 125°C
A
T = 150°C
A
Fig. 2 Typical Reverse Characteristics
V , INSTANTANEOUS REVERSE VOLTAGE (V)
R
0
10
20
30
40
50
1
10
100
1,000
10,000
100,000
I,
I
N
S
T
A
N
T
A
N
E
O
U
S
R
EV
E
R
SE
C
U
R
R
E
N
T
(µ
A
)
R
T = 25°C
A
T = 85°C
A
T = 125°C
A
T = 150°C
A
