3. Connect the Receiver to a PS/2 KVM console as illustrated below in Figure 4.

4. Connect the supplied 5VDC Power adapter to the Receiver. The Transmitter receives its power
from the connected computer.

LED indicators

Both the Transmitter and Receiver have 2 LEDs above the RJ45 port. The green LED indicates
power is on. The flashing yellow LED indicates the system is connected.

Picture adjuster

To get a clear projected image, use a screwdriver to turn the picture adjuster on the Receiver unit





Operating the KVM Extender:

Configuration options

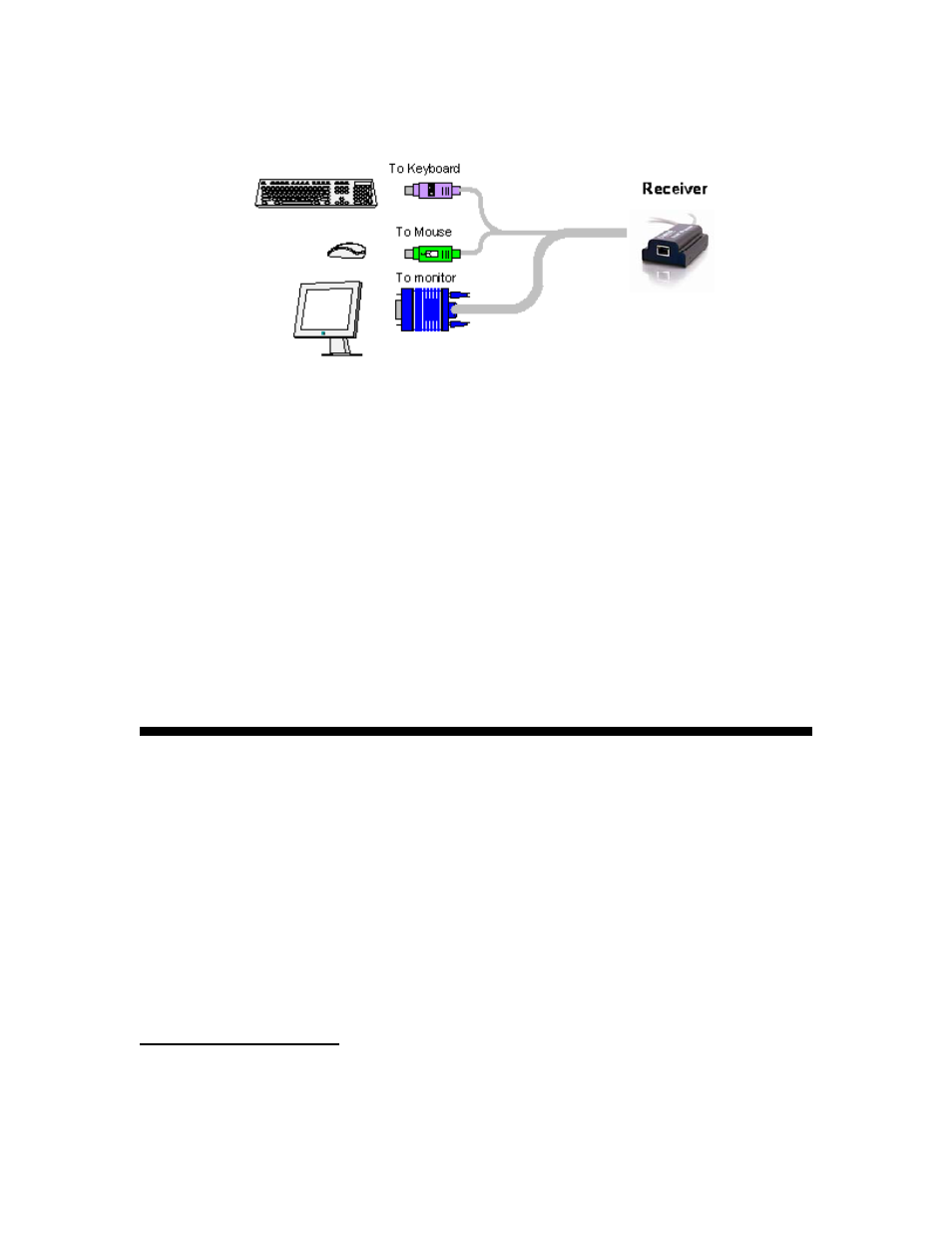

Figure 4. Receiver connections

Configure the KVM Extender system to:

• Work with Unix servers

• Input the monitor’s DDC information

• Change the Shift hotkey to Ctrl


When you enter the configuration mode by pressing, Shift, Tab, as set out below, all 3 LEDs
illuminate. Pressing Esc exits the configuration mode and the LEDs return to normal.

Note: Press the keys one after the other not all together.



Working with UNIX servers
Configure the system to work with UNIX servers

• For HP UX, SGI and Open VMS, press Shift, Tab, U, 1, Esc

• For Alpha Unix, press Shift, Tab, U, 2, Esc

3
