Features:
• Up to 1600 x 1200 @ 75Hz (depending on distance)
• Advanced CAT5 technology
• Pure hardware solution – real time data transfer, no software conflicts
• Plug-and-play installation – no extra protocols needed
• Multi-platform Transmitter models - PS/2 / USB
Connecting the KVM Extender
Note: Before making any connections, please do the following
• Switch off the computer
• Place cables away from fluorescent lights, air conditioners, and machines that are likely
to generate electrical noise

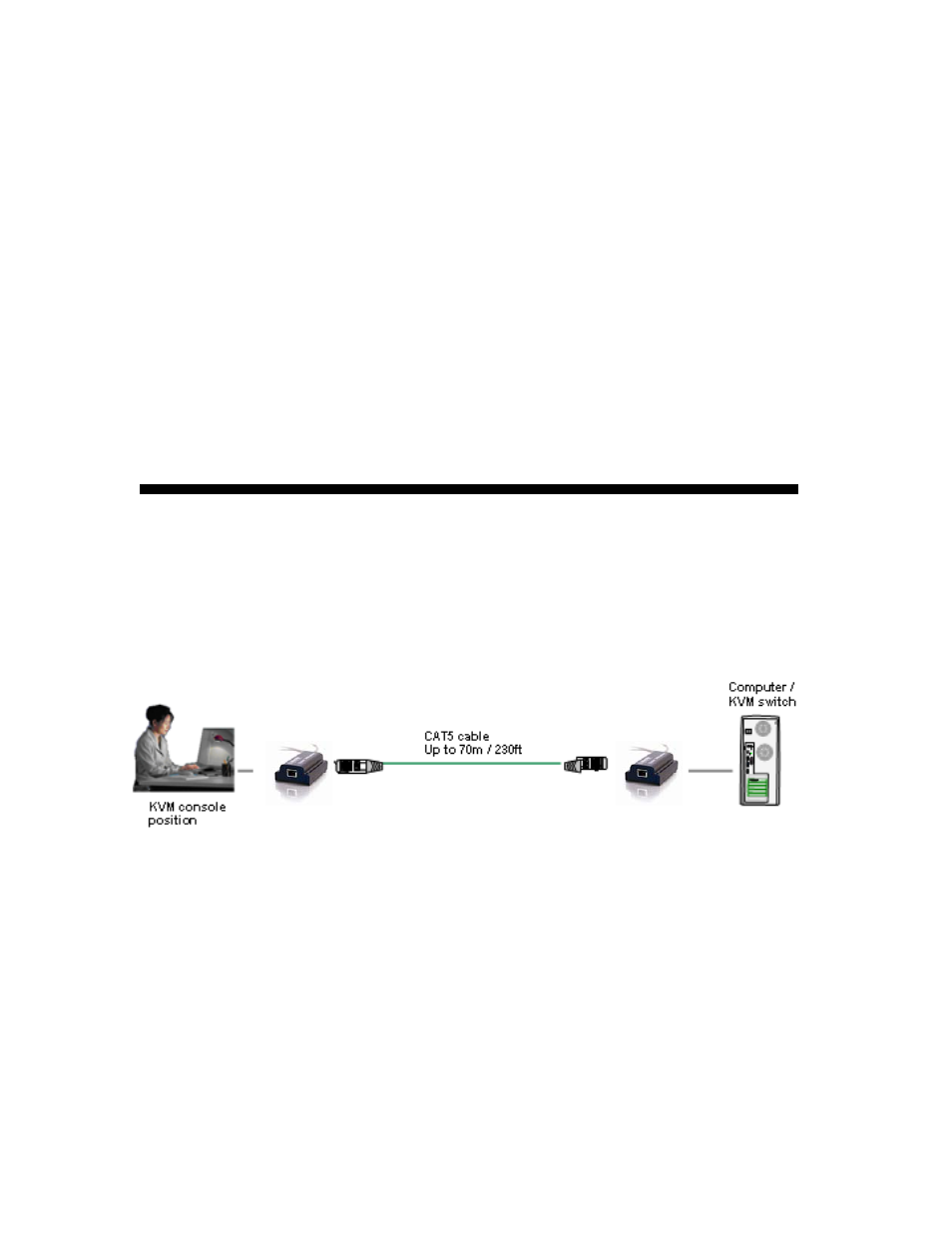

The figure below illustrates the KVM Extender system configuration. The universal Receiver
model connects to KVM control devices and is suitable for all types of Transmitter units.
Figure 1. Application Layout
1
