1a. Connecting the PS/2 Transmitter (model: 39970)
Connect the PS/2 Transmitter as illustrated in
Figure 2.
Note: Although we recommend connecting the
PS/2 Transmitter to a switched off computer,
you can connect it to a switched on computer.
To do so you must connect it in the following
order:
1. Mouse connector
2. Keyboard connector
3. Video connector

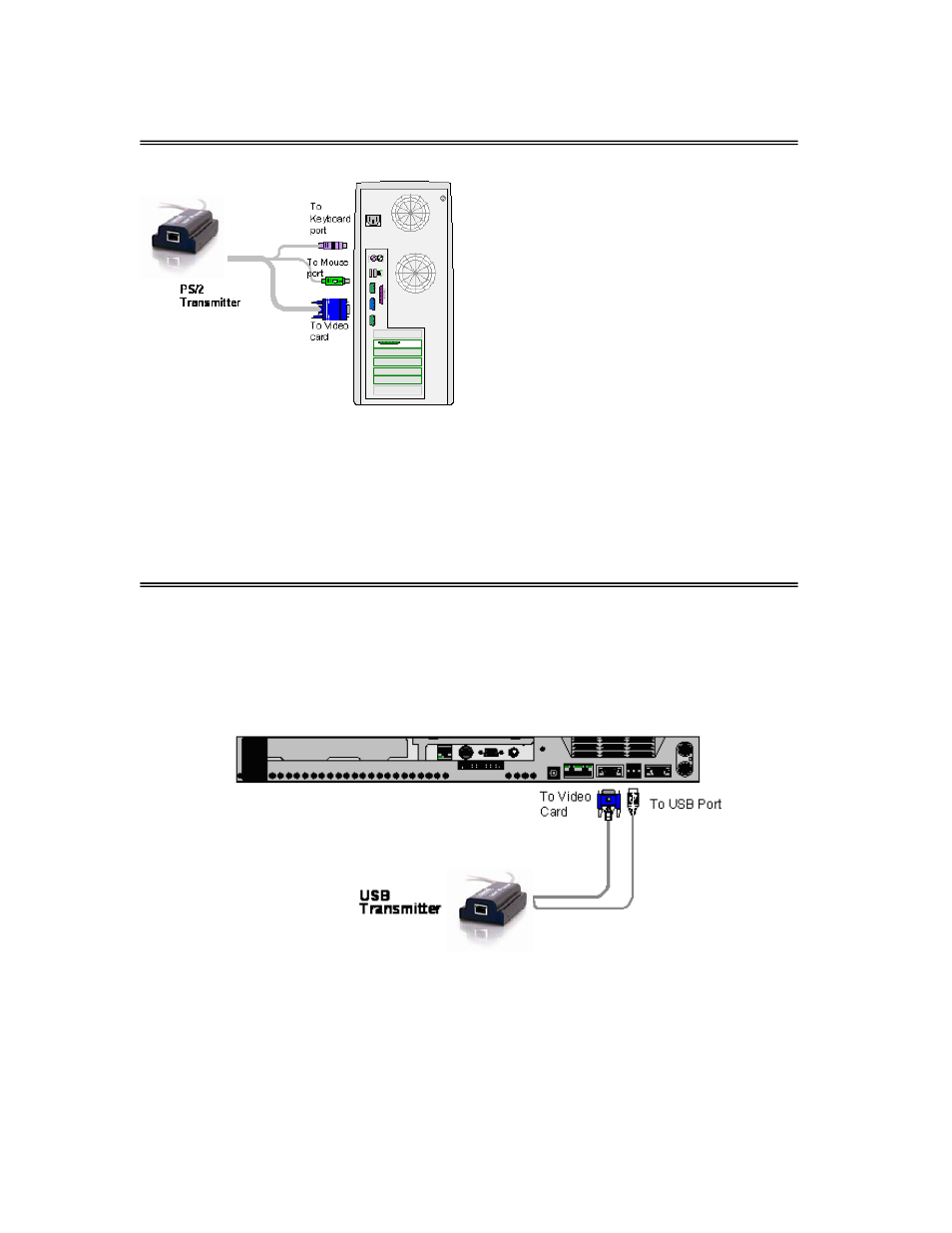

Figure 2. PS/2 Transmitter
Connections
1c. Connecting a USB Transmitter (model: 39969)
The USB Transmitter supports Windows 98 and later, SUN, SGI, MAC and other operating
systems supporting a USB interface.
Connect the USB Transmitter as illustrated in Figure 3.
Figure 3. USB Transmitter connections
2. Using a CAT5/6 cable, connect the Transmitter to the Receiver. Connect the cable to the
Transmitter’s and Receiver’s RJ45 ports.
2
