Controls
Connection
Your new QTX QR-series portable PA unit may arrive with you with the internal battery
charged. Before connecting to the mains, switch the unit on and see if the power LED lights. If
not, you will need to charge the battery before using away from a mains supply (see
“Charging the battery” below)
Connect the QR-series portable PA unit to the mains using the appropriate mains IEC lead
supplied. You may otherwise opt to connect the spring terminals at the rear to an external
12Vdc supply, such as a car battery, or use the internal battery if charged.
Charging the battery
When not in use but connected to the mains, if the POWER switch is in the
off position, the
internal battery will be re-charged from the mains supply. This can be observed by the
CHARGE LED which lights when charging. When fully charged, the CHARGE LED will no longer
be lit.

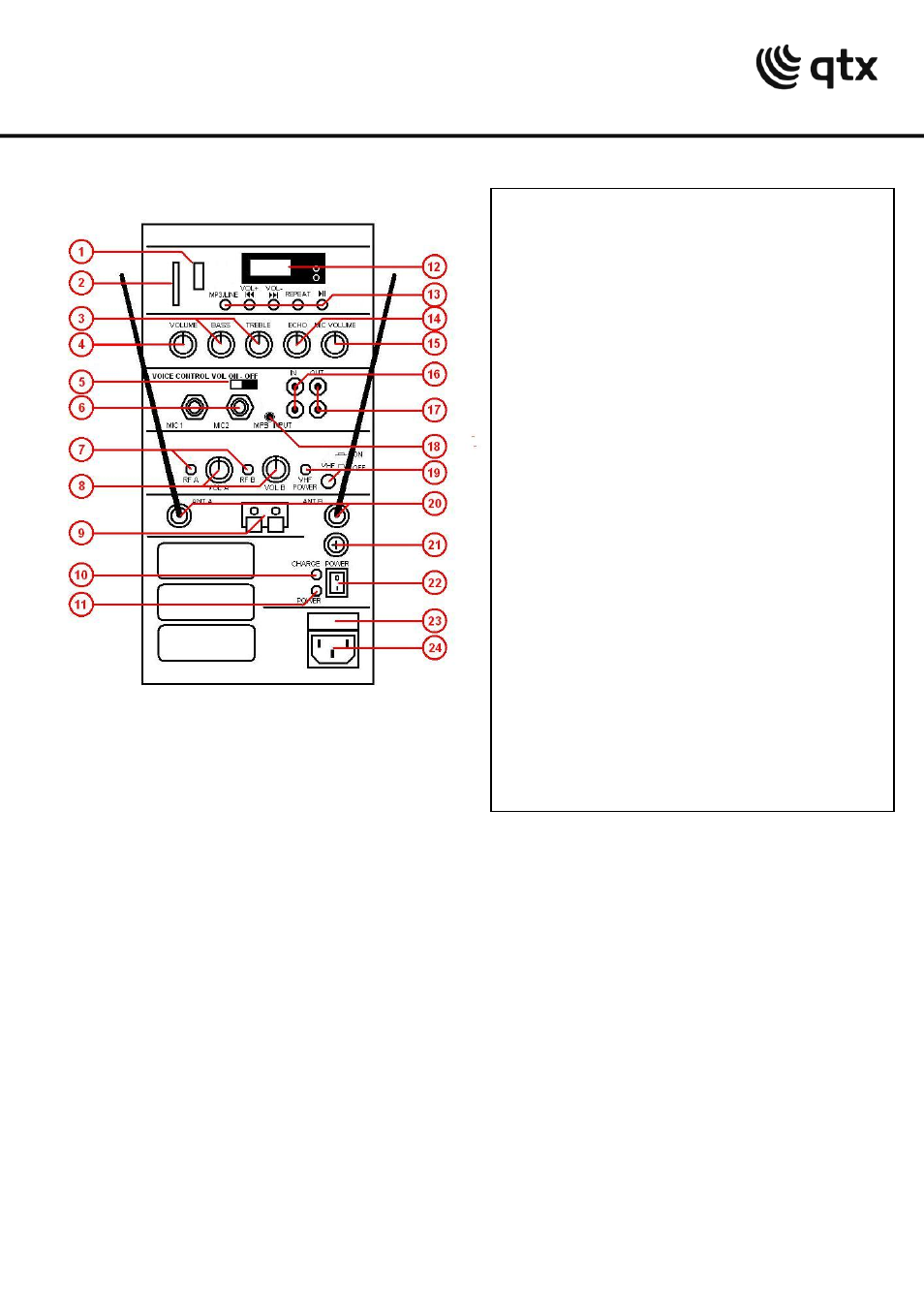

1) USB input
2) SD card slot
3) 2-band EQ controls (BASS + TREBLE)
4) Music volume control
5) VCV voice controlled volume switch
6) 6.3mm jack microphone inputs
7) Radio Frequency indicators (VHF carriers)
8) Wireless microphone volume controls
9) External 12Vdc power input
10) Charging indicator
11) Mains power indicator
12) Media player LCD display
13) Media player mode/transport controls
14) Microphone Echo level control
15) Microphone inputs volume control
16) AUX line input
17) Line output
18) 3.5mm line input
19) VHF receiver power switch & LED
20) VHF microphones antennae
21) D.C. power fuse
22) Power switch
23) Mains fuse holder
24) IEC mains inlet (12Vdc in for QR10PA)
