Scout Operator’s Manual 3—Operating Your Scout Camera
431-TS00-00-10, Revision 110 25
3–11 Bayonet Lens Mounting System
All TS24 and TS32 camera models are equipped with a robust
bayonet mounting system to allow for field-interchangeable optics
options. As shipped, the camera comes with a lens-cover assembly
mounted on the bayonet mount.
Operation of the Lens-cover Assembly

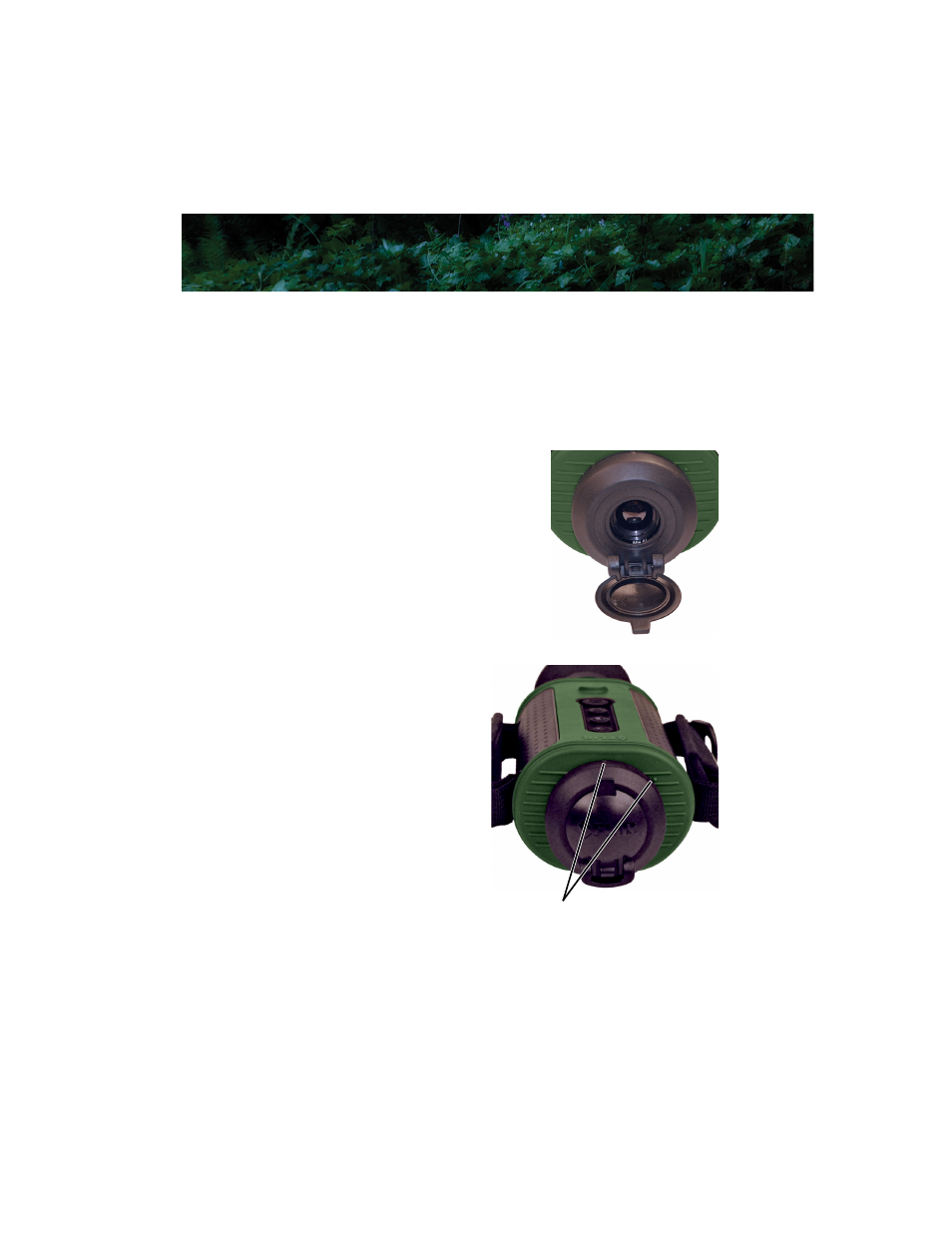

The lens cover is a simple flip-to-open lens
cover that provides protection for the
camera lens when not in use. To open,
simply flip the lens cover down to the fully
open position (45° pointing toward the
ground as shown in the photograph at the
right).
To remove the lens-cover
assembly, rotate the outer ring
of the lens cover clockwise so
that the index mark on the top of
the lens cover aligns with the
index mark on the front body of
the camera (approximately
45°), and pull straight off.
Index marks
