3—Operating Your Scout Camera
Scout Operator’s Manual
24
June 2011

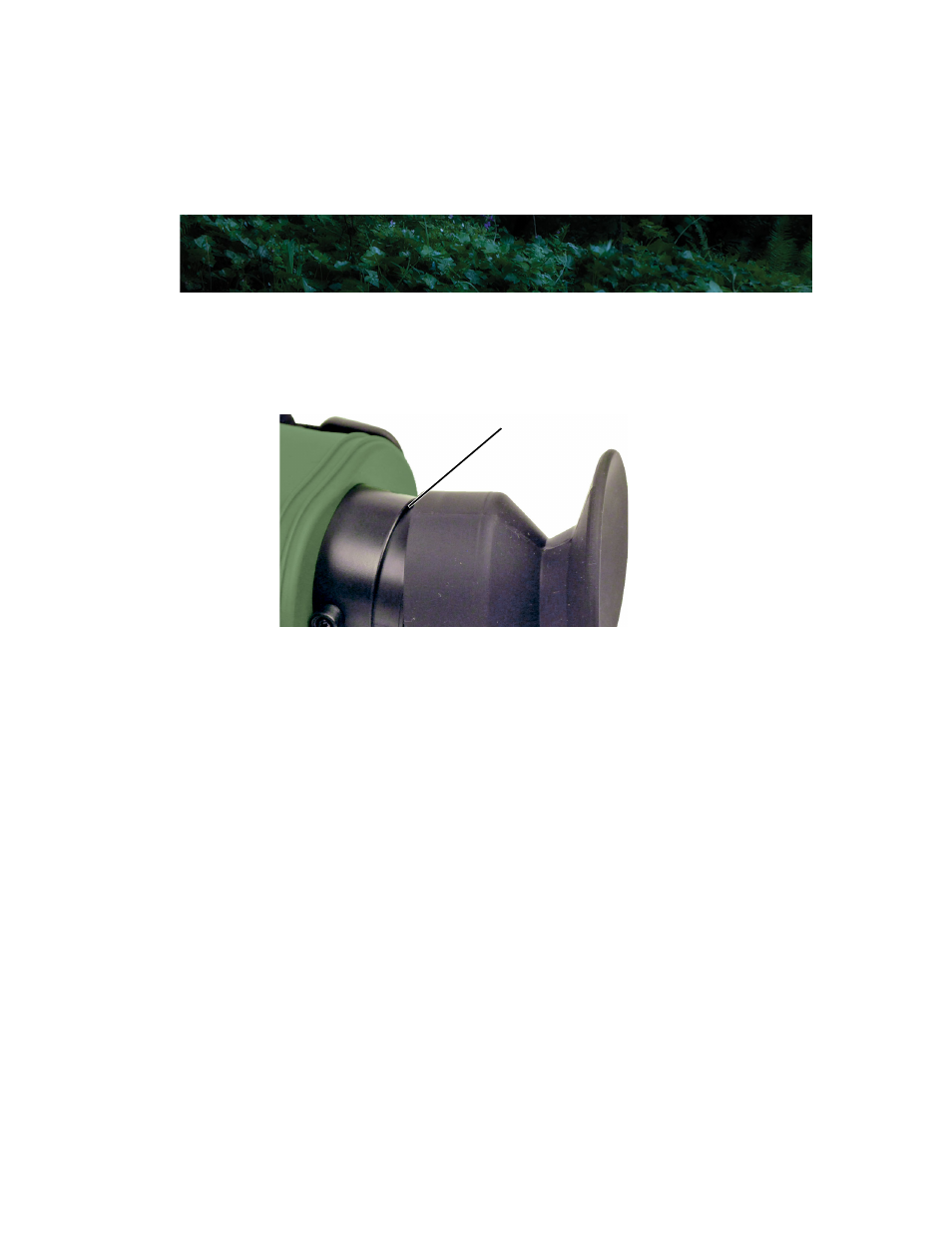

3–10 Installing the Shuttered Eyepiece
The shuttered eyepiece keeps light from coming out of the viewfinder
display. Pressing your eye up against the eyepiece opens the shutter.
The shutter closes automatically.
The eyepiece fits into a groove around the display housing.
When pressing the eyepiece into position, ensure that the diopter
lever is free to move.
If the eyepiece is pushed too far onto the display housing it will interfere
with the diopter lever.
When removing the eyepiece, grasp and pull on the base of the
eyepiece. Do not pull on the shuttered eye cup.
Groove for eyepiece
