Scout Bi-Ocular Operator’s Manual 3—Operating Your Camera
431-BTS0-00-10, Revision 110 25

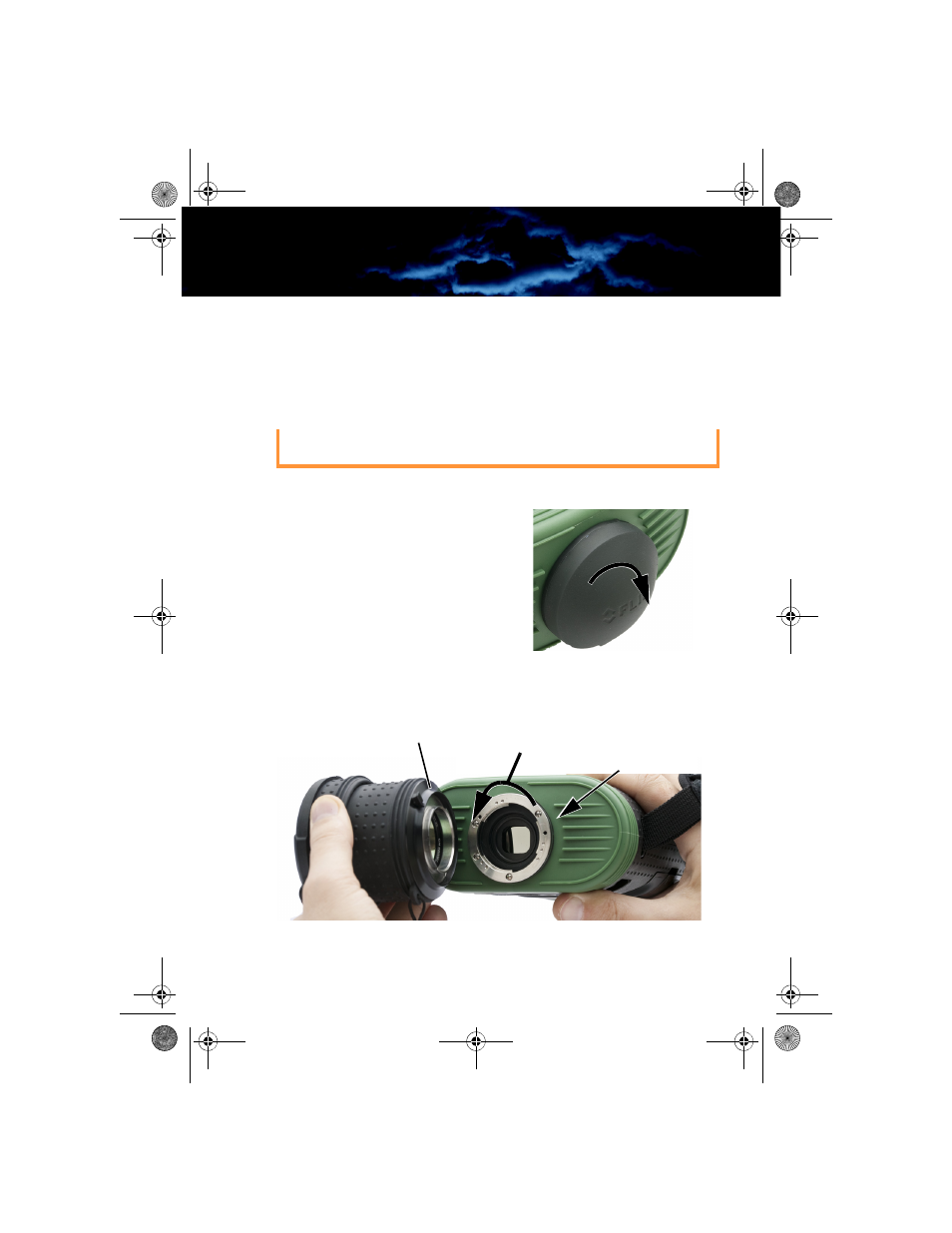

3–11 Bayonet Lens Mounting System
The Scout Bi-Ocular camera is equipped with a robust bayonet
mounting system to allow for field-interchangeable optics options and
future accessories. As shipped, the Scout Bi-Ocular camera comes
with a lens-cover assembly mounted on the bayonet mount.
Caution!
Removing and Installing Lenses
1. Remove the lens-cover assembly by
rotating it clockwise (approximately
45°) and pulling straight off
2. Line up the key on the lens (red dot)
at approximately 45°.
3. Install lens by inserting and rotating
it counter-clockwise.
4. Remove lens by releasing latch and rotating lens clockwise
(approximately 45°) and pulling straight off.
Always keep the camera window covered. A lens or the lens cover
should always be installed on the camera to protect the window.
Clockwise
to Remove
Counter-Clockwise
to Install Release latch
to Remove
Line up
key
