12

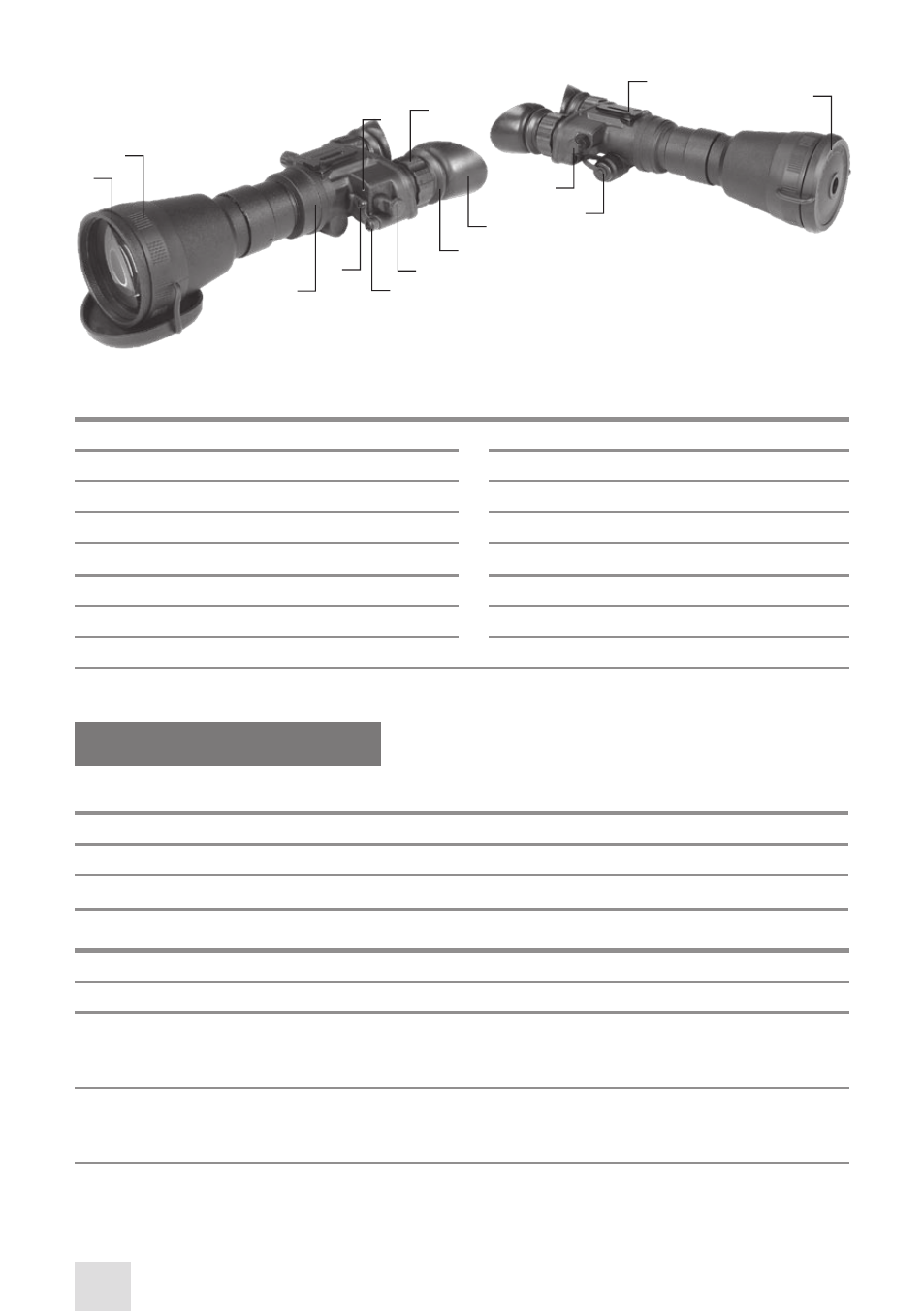

FIGURE 2-1. NYX7-4.5X PRO NIGHT VISION BI-OCULAR
5
3
9
8
4
2
1 13
6
12
10
11
7
14
TABLE 2-1. NYX7-4.5X PRO SYSTEM DESCRIPTION
ITEM DESCRIPTION ITEM DESCRIPTION
1 Body 8 Rail
2 Lens 9 Eyepiece Ring
3 Focus Ring 10 Eyepiece
4 Lens Cap 11 Eye-cup
5 Battery Cap 12 Function Switch
6 Photo Receiver 13 IR Illuminator
7 Pivotal Focusing Lens 14 Gain Control Knob *
* For MG version.
2.2 SPECIFICATIONS
TABLE 2-2. MECHANICAL DATA
EqUIPMENT ITEM DIMENSIONS, MM (L X W X H)/(DIA X L) WEIGHT, G
Nyx7-4.5x PRO Night Vision Bi-ocular 260Ч117Ч80 950
IR850 121Ч41Ч37 80
TABLE 2-3. ELECTRICAL DATA
ITEM DATA
Battery One 123A (3V) or AA (1.5V)
Consumption Current*:
— at 1.5 VDC
— at 3.0 VDC 75mA
38mA
Continuous Operation* at 20 °C:
— AA Alkaline Battery
— 123A Lithium Battery 30 (IT Gen. 2+) / 25 (IT Gen. 3)
60 (IT Gen. 2+) / 50 (IT Gen. 3)
* With IR illuminator off.
