Armasight NSBDISCOV823DH1 Discovery8x GEN 2+ HD Night vision binocular - Manual (Page 6)

6

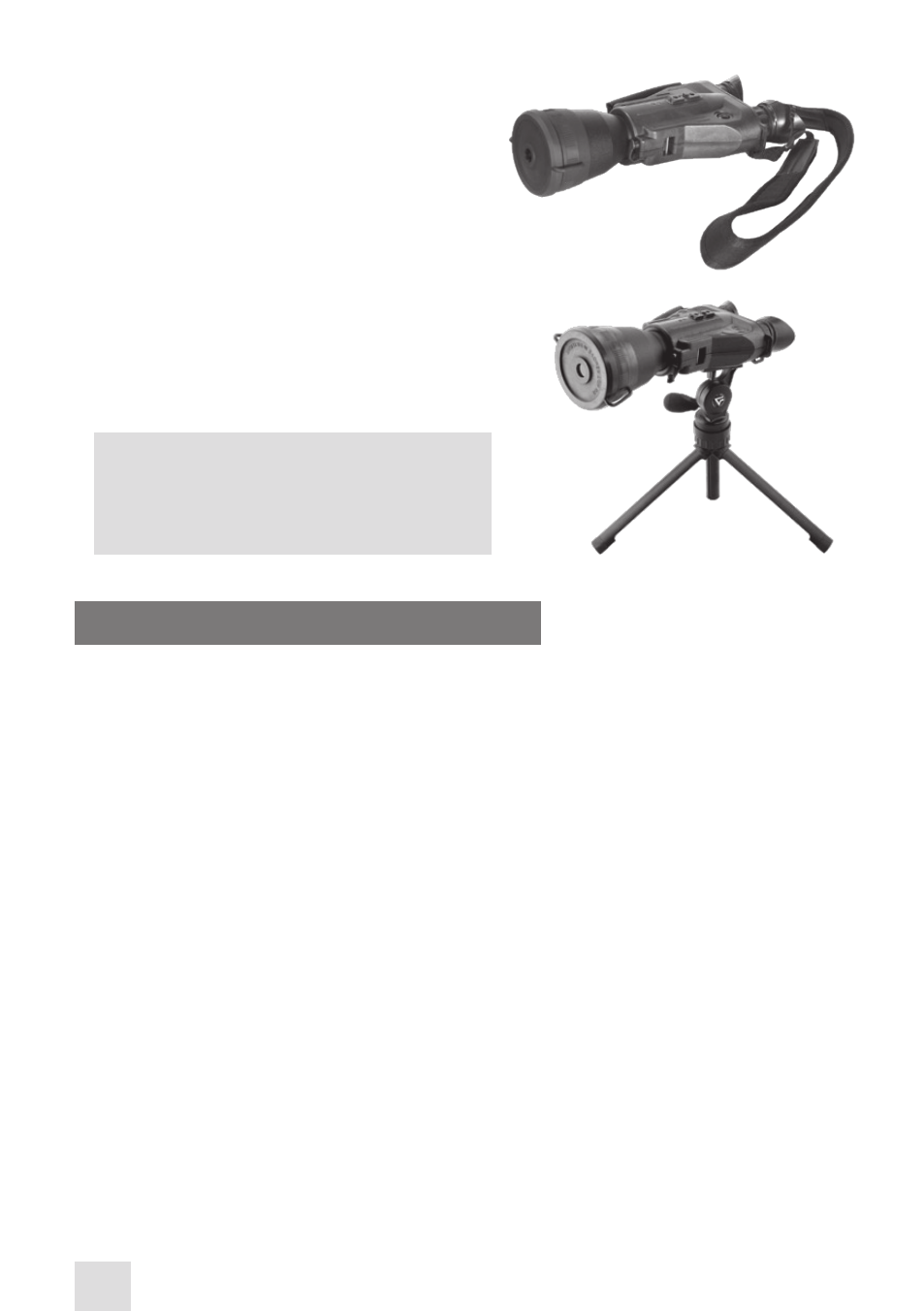

NECK STRAP ATTACHING
Attach the neck strap to your Discovery as shown in
the figure to the right.
1) Thread the end of the neck strap through the strap
mount eyelet located on the bottom of the unit.
2) Thread the strap’s end through the strap’s buckle.
3) Tighten the strap as desired, and verify that it will
unlock itself when the unit is being operated.
TRIPOD INSTALLATION
The Discovery can be connected to a tripod. To mount
the tripod with the Discovery device, screw the tripod
into the 1/4’’ threaded socket located on the Discov-
ery’s bottom rail.
NOTE:
The unit may be badly damaged if the tripod
collapses or falls over. Remove the unit from
the tripod if it is not within your reach.
3. OPERATION INSTRUCTIONS
CONTROLS
The Discovery is designed to meet the needs and requirements of various users. Each user can individu-
ally set the unit to the most effective and desirable position with the help of the controls. The Discovery
unit’s controls and indicators are shown and detailed further, below:
on/oFF Button. This controls the power supply to the unit. Use this button to turn the unit on and off.
objective Lens Focus. This control focuses the objective lens. Adjust the objective lens for the clear-
est, sharpest image. This will need to be done whenever you change your positional distance from the
scene you’re observing.
diopter adjustment. This control focuses the eyepieces. Use it to get the clearest image possible on
the IIT screen.
Light sensor of Bright Light cut-off system. This automatic feature analyzes the illuminance level of
the terrain using a light sensor.
indicator in Fov. A red indicator light will flash in the field of view to let you know when the battery
is low.
FOCUSING
To focus your Discovery bi-ocular, perform the following steps:
Adjust the eye pieces (diopters). Turn the diopter adjustment rings clockwise until they stop. While
looking through the eyepieces, observe the scene, and slowly begin turning the diopter adjustment
rings counterclockwise until the image becomes clear and sharp.
