2-22 Chapter 2: Getting started
2.5.18 CPU Digital I/O Voltage Offset Mode Sign [+]
This item allows you to set the CPU digital I/O voltage offset mode sign. Configuration
options: [+] [-].
CPU Digital I/O Voltage Offset [Auto]
This item allows you to set the CPU digital I/O voltage offset. Increase the value when
increasing DRAM frequency. The values range from 0.001V to 0.999V with a 0.001V interval.
2.5.19 SVID Control [Auto]
Disabling SVID Support stops the processor from commmunicating with the external voltage
regulator. Configuration options: [Auto] [Disabled] [Enabled].
• We recommend that you disable this function when overclocking.
• The following item appears only when you set SVID Support to [Enabled].
2.5.20 DRAM Voltage [Auto]
Allows you to set the DRAM Voltage. The values range from 1.500V to 1.650V with a 0.05V
interval.
According to Intel CPU specifications, DIMMs with voltage requirement over 1.65V may
damage the CPU permanently. We recommend that you install the DIMMs with the voltage
requirement below 1.65V.

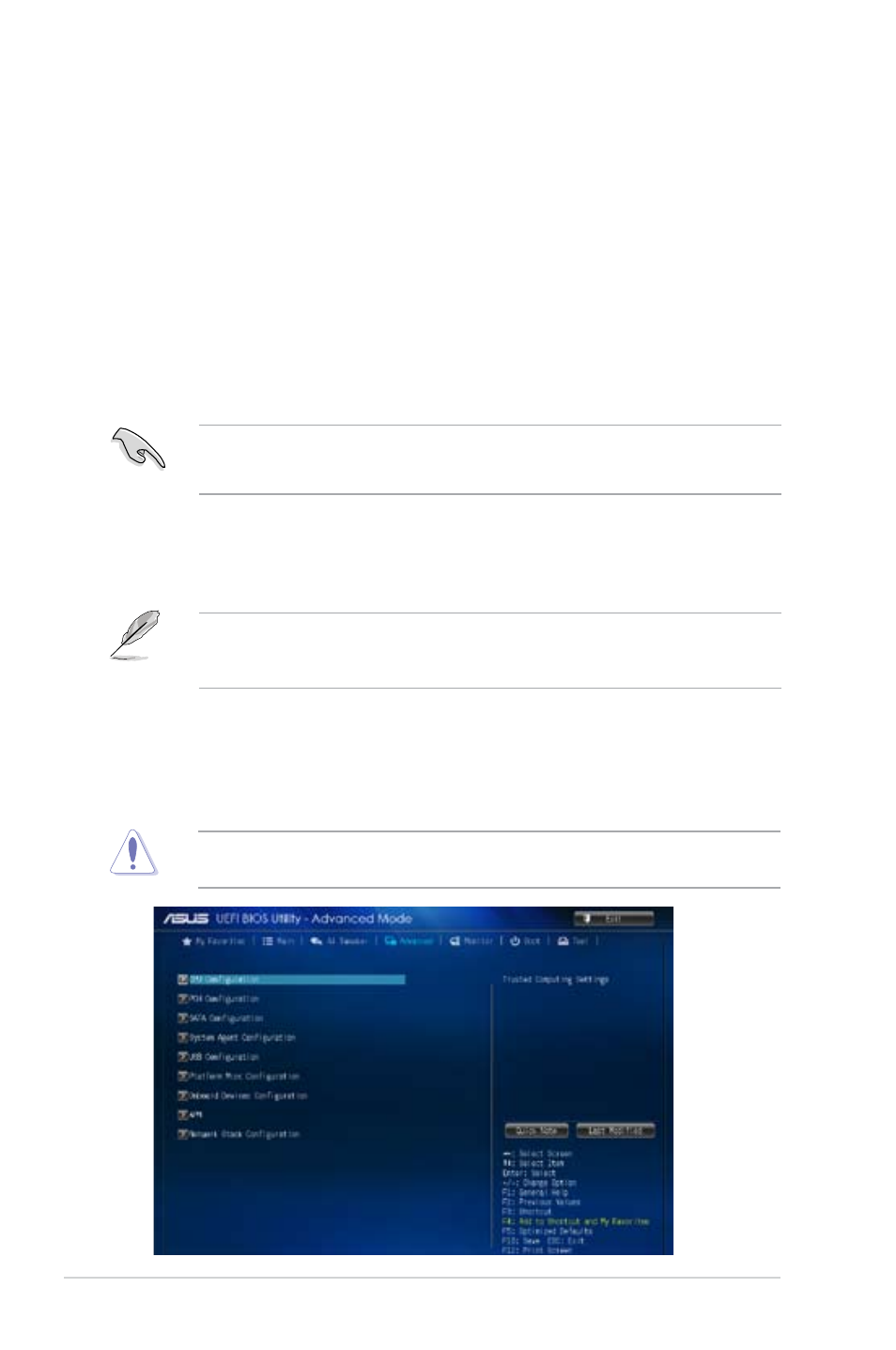

2.6 Advanced menu
The Advanced menu items allow you to change the settings for the CPU and other system
devices.
Be cautious when changing the settings of the Advanced menu items. Incorrect field values
can cause the system to malfunction.
