ASUS P5KPL/1600 1-17
1.7 System memory
1.7.1 Overview
The motherboard comes with four Double Data Rate 2 (DDR2) Dual Inline Memory
Modules (DIMM) sockets.

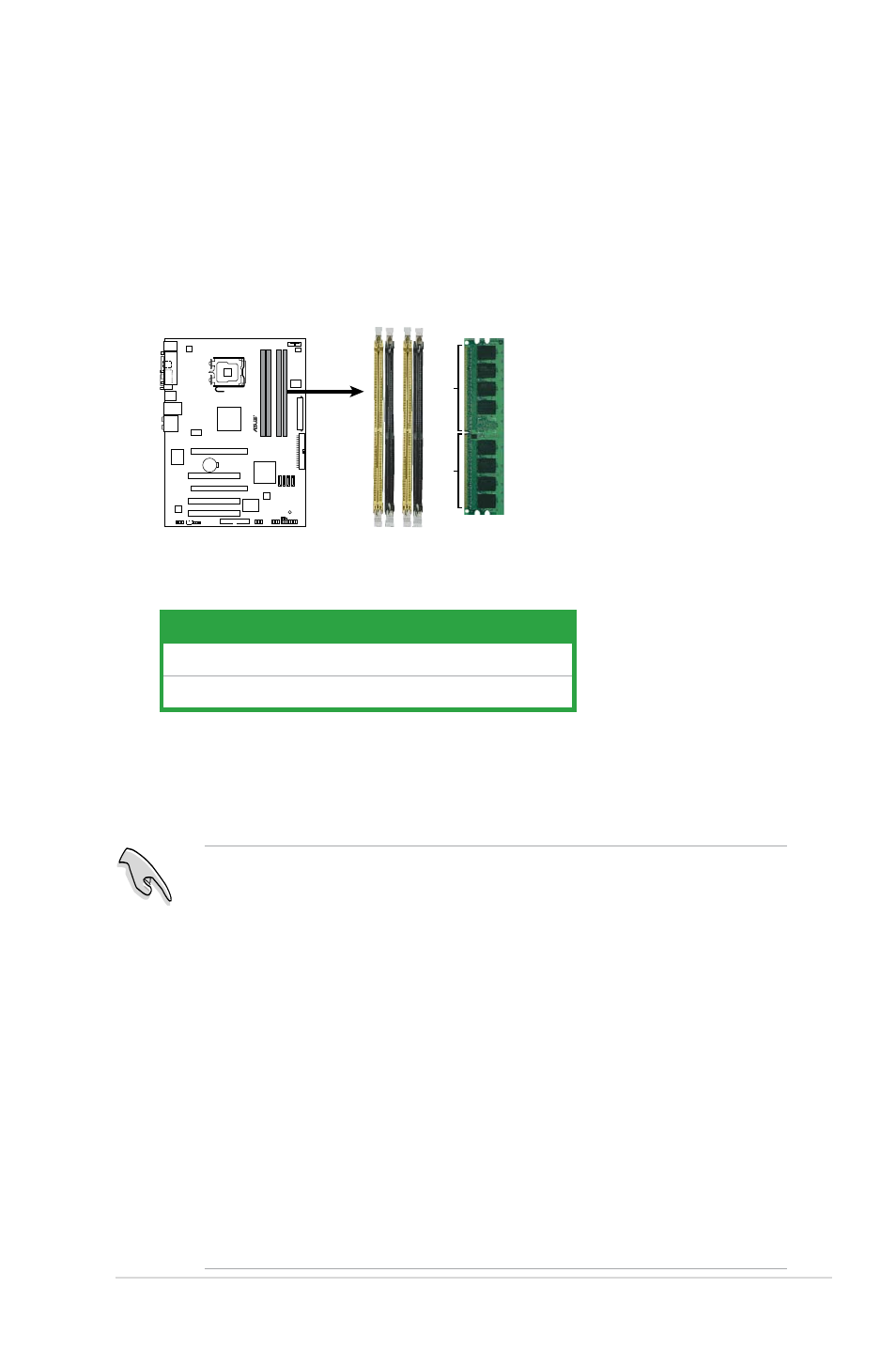

The figure illustrates the location of the DDR2 DIMM sockets:
P5KPL/160
0
P5KPL/1600 240-pin DDR2 DIMM Sockets
DIMM_B1 DIMM_A2 DIMM_B2 DIMM_A1
128 Pins
11
2 Pins
1.7.2 Memory configurations
You may install 512MB, 1GB and 2GB unbuffered non-ECC DDR2 DIMMs into the
DIMM sockets.
• You may install varying memory sizes in Channel A and Channel B. The
system maps the total size of the lower-sized channel for the dual-channel
configuration. Any excess memory from the higher-sized channel is then
mapped for single-channel operation.
• Always install DIMMs with the same CAS latency. For optimum
compatibility, it is recommended that you obtain memory modules from the
same vendor. Refer to the DDR2 Qualified Vendors List on the next page
for details.
• If you are using a Windows 32-bit version operating system (e.g. 32-bit
Windows XP, 32-bit Vista) without the Physical Address Extension (PAE)
support, the system will allocate a certain amount of memory space for
system devices.
• We recommend that you install only a maximum of 3GB system memory
when using a Windows 32-bit version operating system without the PAE.
The excess over 3GB of installed memory will not cause any problem;
however, the system can not use this excess memory space and the
system will display less than the total size of physical memory installed.
Channel Sockets
Channel A DIMM_A1 and DIMM_A2
Channel B DIMM_B1 and DIMM_B2
