Playback of HD DVD and Blu-ray discs
• For better playback quality, we recommend that you follow the system requirements
listed below.
Suggested list
CPU AMD ® Athlon 4400+
DIMM DDR2 800 (1GB or higher)
BIOS setup Frame Buffer Size--256MB or higher
File format
Best resolution
Windows XP Windows Vista
Non-protected clips 1920 x 1080p 1920 x 1080p
HD DVD 1920 x 1080p 1280 x 1080p
Blu-ray 1280 x 1080p 1280 x 1080p
• To play HD DVD or Blu-ray disc, ensure to use HDCP compliant devices and software.
15. USB 2.0 ports 5 and 6. These two 4-pin Universal Serial Bus (USB) ports connect to
USB 2.0 devices.
1.10.2 Internal connectors

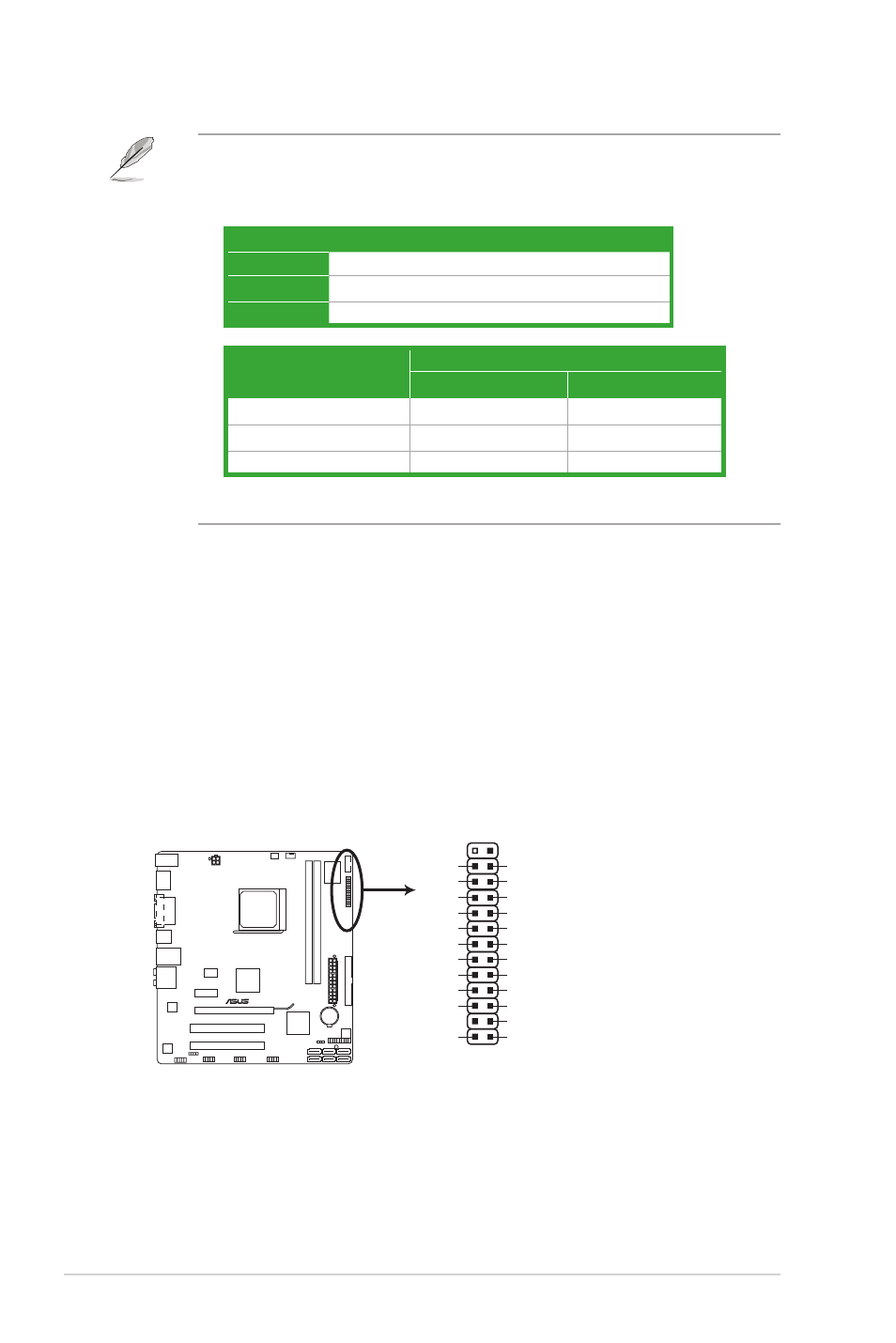

1. LPT connector
The LPT (Line Printing Terminal) connector supports devices such as a printer. LPT is
standardized as IEEE 1284, which is the parallel port interface on IBM PC-compatible
computers.
M4A78L-M
M4A78L-M Parallel Port Connector
PIN 1
LPT
SLCT
PE
BUSY
ACK#
PD7
PD6
PD5
PD4
PD3
PD2
PD1
PD0
STB#
GND
GND
GND
GND
GND
GND
GND
GND
SLIN#
INIT#
ERR#
AFD
Chapter 1: Product introduction 1-22
