ASUS Q-Connector (system panel)

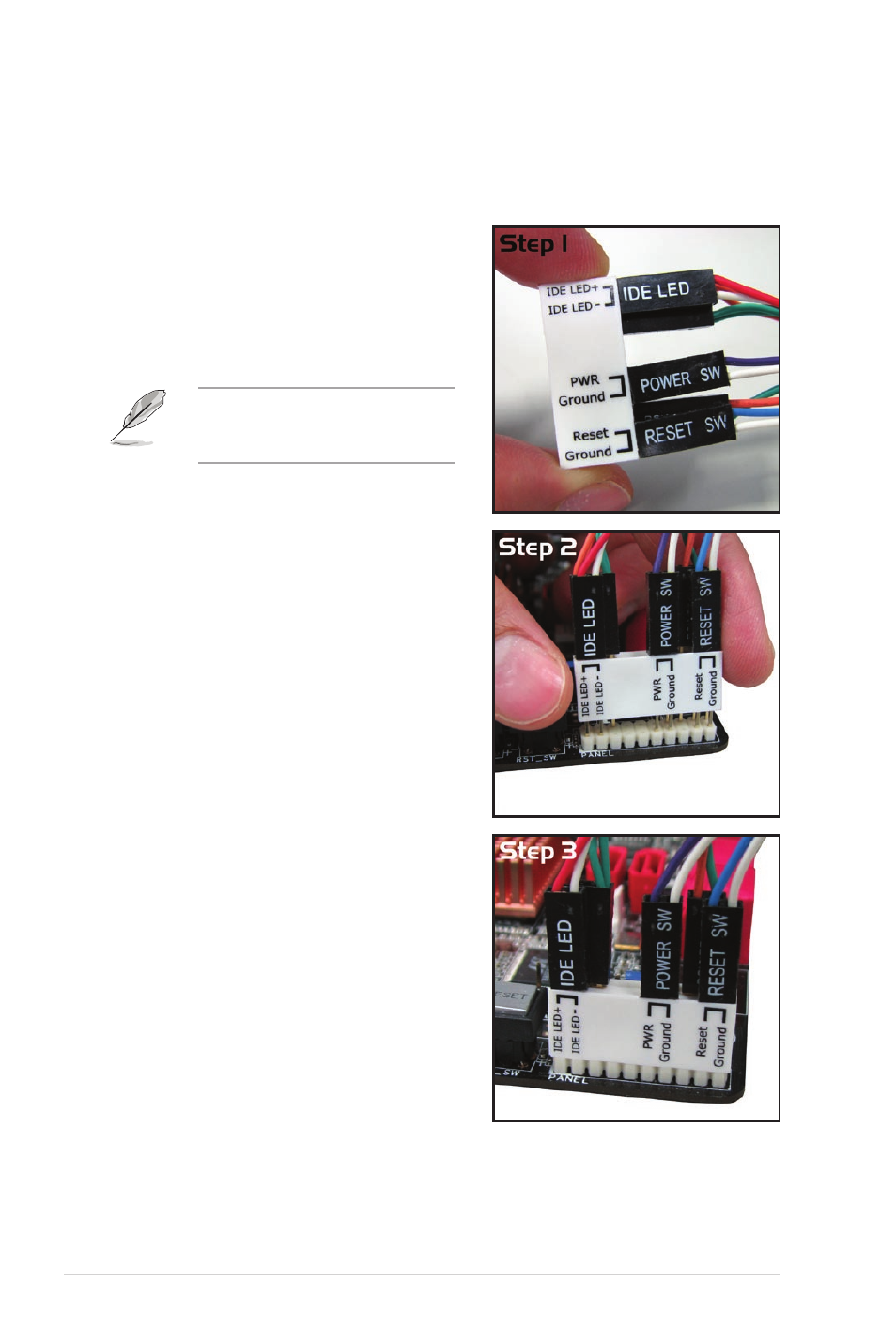

You can use the ASUS Q-Connector to connect/disconnect chassis front panel cables in a
few steps. Refer to the instructions below to install the ASUS Q-Connector.
2. Install the ASUS Q-Connector to the system
panel connector, making sure the orientation
matches the labels on the motherboard.
3. The front panel functions are now enabled.
The figure shows the Q-Connector properly
installed on the motherboard.
1. Connect the front panel cables to the ASUS
Q-Connector.
Refer to the labels on the Q-Connector to
know the detailed pin definitions, then match
them to the respective front panel cable
labels.
The labels of the front panel cables
may differ from chassis made by
different manufacturers.
