Asus ES-101 User Manual
Page 5
4
•
Data Out port: An RJ-45 Ethernet port with fixed RJ-45 cable for
connection with PD devices.
•
Power Out port: The power jack that transmits power to devices which
work under 5V, 7.5V, 9V or 12V. It supports two types of power cable: 5.5
x2.0mm and 5.5x2.5mm, both included in the package of PoE Splitter.

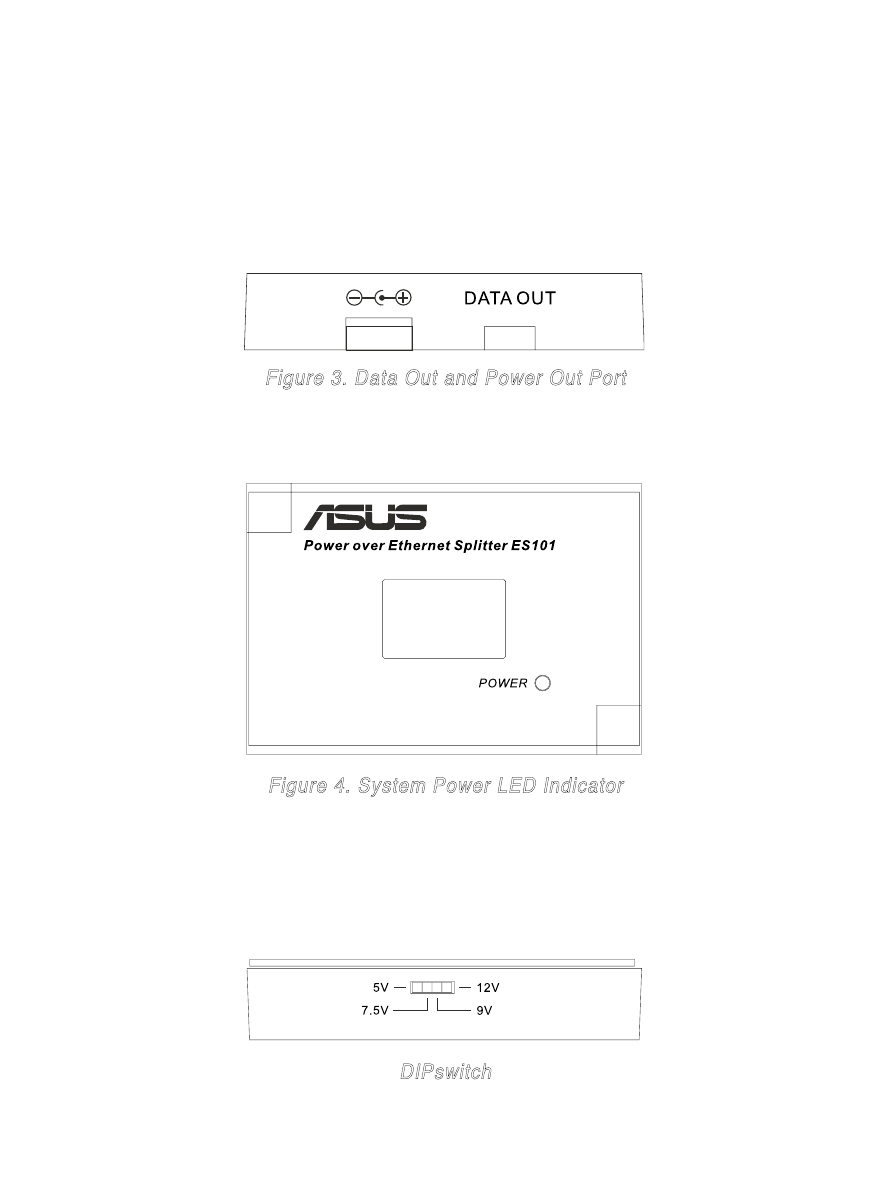

Figure 3. Data Out and Power Out Port
•
LED indicator: The Power LED.
Figure 4. System Power LED Indicator
•
DIPswitch: Output voltage switch. It provides four levels of power
output – 5V, 7.5V, 9V and 12V. The default voltage is set to 5V. Before
you adjust the Dipswitch, make sure the PoE Splitter is powered off.
DIPswitch
