C h a p t e r 2 : H a r d w a r e s e t u p C h a p t e r 2 : H a r d w a r e s e t u p C h a p t e r 2 : H a r d w a r e s e t u p C h a p t e r 2 : H a r d w a r e s e t u p C h a p t e r 2 : H a r d w a r e s e t u p 2 - 4 8 2 - 4 8 2 - 4 8 2 - 4 8 2 - 4 8
2.10.5 2.10.5 2.10.5 2.10.5 2.10.5 Floppy disk drive Floppy disk drive Floppy disk drive Floppy disk drive Floppy disk drive
2. Carefully pull out the drive from
the chassis until you see the
cables connected to the drive.

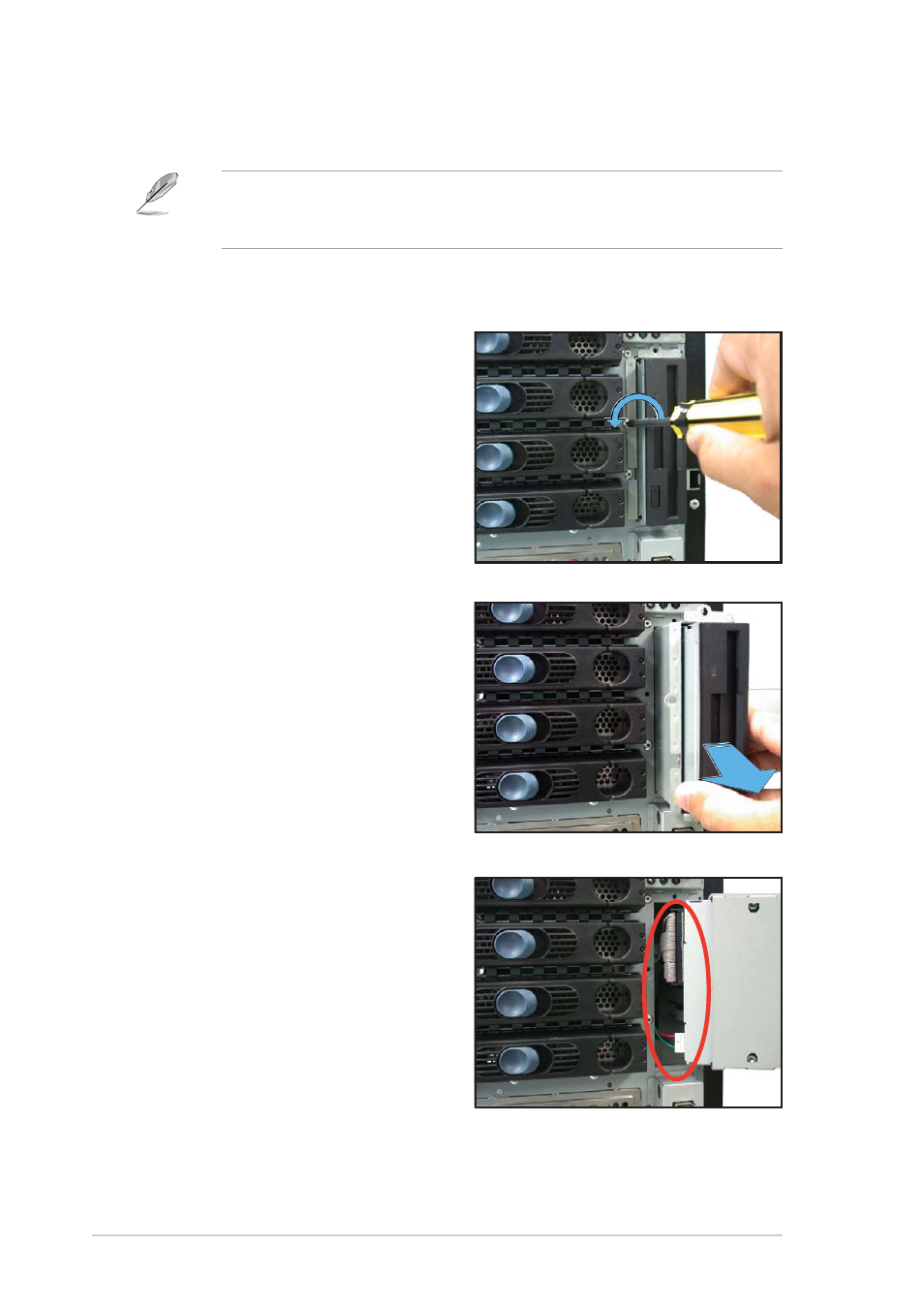

To remove the floppy disk drive:
1. Remove the screw that secures
the drive to the chassis.
You need to remove the front panel assembly before you can remove
the floppy disk drive. Refer to section “2.5.1 Removing the front panel
assembly” for instructions.
3. Disconnect the floppy disk cable
and power cable from the drive
to completely release the drive.
