Chapter 3: Motherboard information
3-22
2.
Intel
®

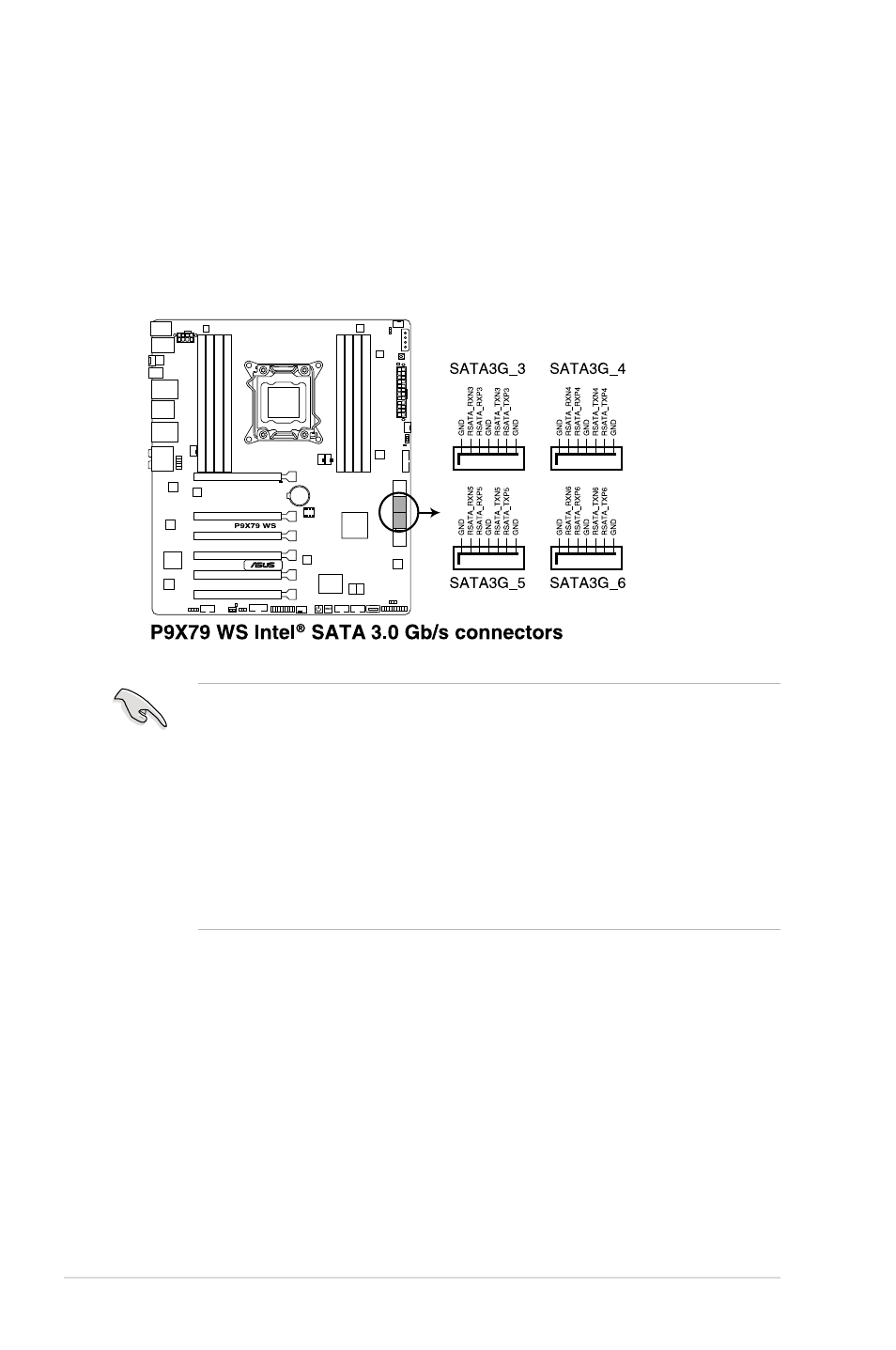

X79 Serial ATA 3.0 Gb/s connectors (7-pin SATA3G_3–6 [blue])
These connectors connect to Serial ATA 3.0 Gb/s hard disk drives and optical disc
drives via Serial ATA 3.0 Gb/s signal cables.
If you installed Serial ATA hard disk drives, you can create a RAID 0, 1, 5, and 10
configuration with the Intel
®
Rapid Storage Technology through the onboard Intel
®
X79
chipset.
•
These connectors are set to [AHCI Mode] by default. If you intend to create a Serial
ATA RAID set using these connectors, set the SATA Mode item in the BIOS to [RAID
Mode]. Refer to section 4.5.5 SATA Configuration for details.
•
Before creating a RAID set, refer to section 5.1 RAID configurations or the manual
bundled in the motherboard support DVD.
•
When using hot-plug and NCQ, set the SATA Mode in the BIOS to [AHCI Mode]. Refer
to section 4.5.5 SATA Configuration for details.
•
You must install Windows
®
XP Service Pack 3 or later versions before using Serial
ATA hard disk drives. The Serial ATA RAID feature is available only if you are using
Windows
®
XP SP3 or later versions.
®
