LAN port LED indications
1.10 Connectors

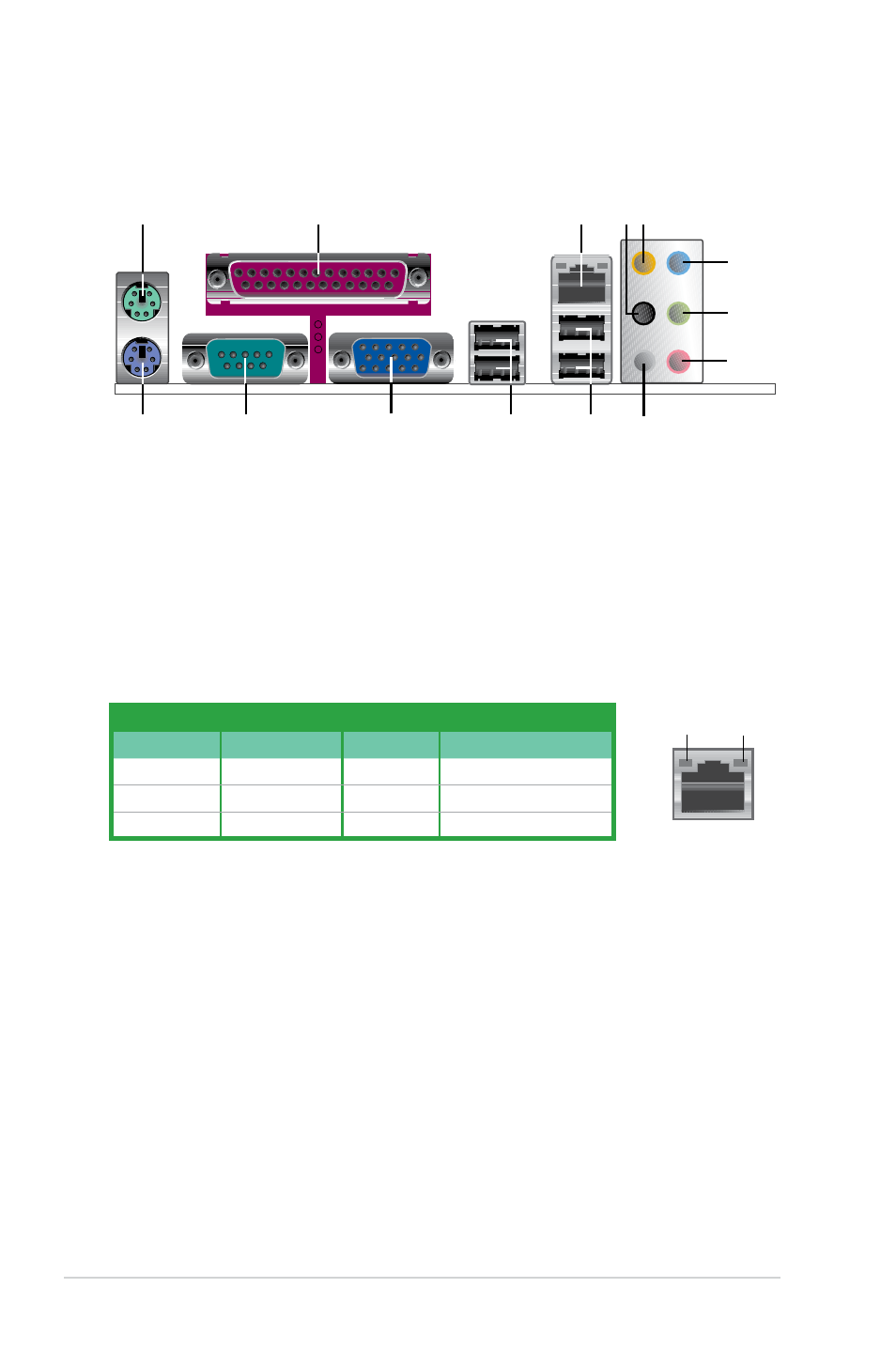

1.10.1 Rear panel connectors
1. PS/2 mouse port (green). This port is for a PS/2 mouse.
2. Parallel port. This 25-pin port connects a parallel printer, a scanner, or other
devices.
3. LAN (RJ-45) port. Supported by 10/100 LAN controller, this port allows
100Mb connection to a Local Area Network (LAN) through a network hub.
Refer to the table below for the LAN port LED indications.
100M LED 10M LED
Status Description Status Description
OFF No link OFF No link
ORANGE Linked GREEN Linked
BLINKING Data activity BLINKING Data activity
4. Rear Speaker Out port (black). This port connects the rear speakers in a
4-channel, 6-channel, or 8-channel audio configuration.
5. Center/Subwoofer port (orange). This port connects the center/subwoofer
speakers.
6. Line In port (light blue). This port connects the tape, CD, DVD player, or
other audio sources.
7. Line Out port (lime). This port connects a headphone or a speaker. In
4-channel, 6-channel, and 8-channel configuration, the function of this port
becomes Front Speaker Out.
8. Microphone port (pink). This port connects a microphone.
9. Side Speaker Out port (gray). This port connects the side speakers in an
8-channel audio configuration.
10M LED 100M LED
LAN port
1
14 10
2 3
11 13 12
4
6
5
7
8
9
