2 Carte mère ASUS P4V800-X
Français

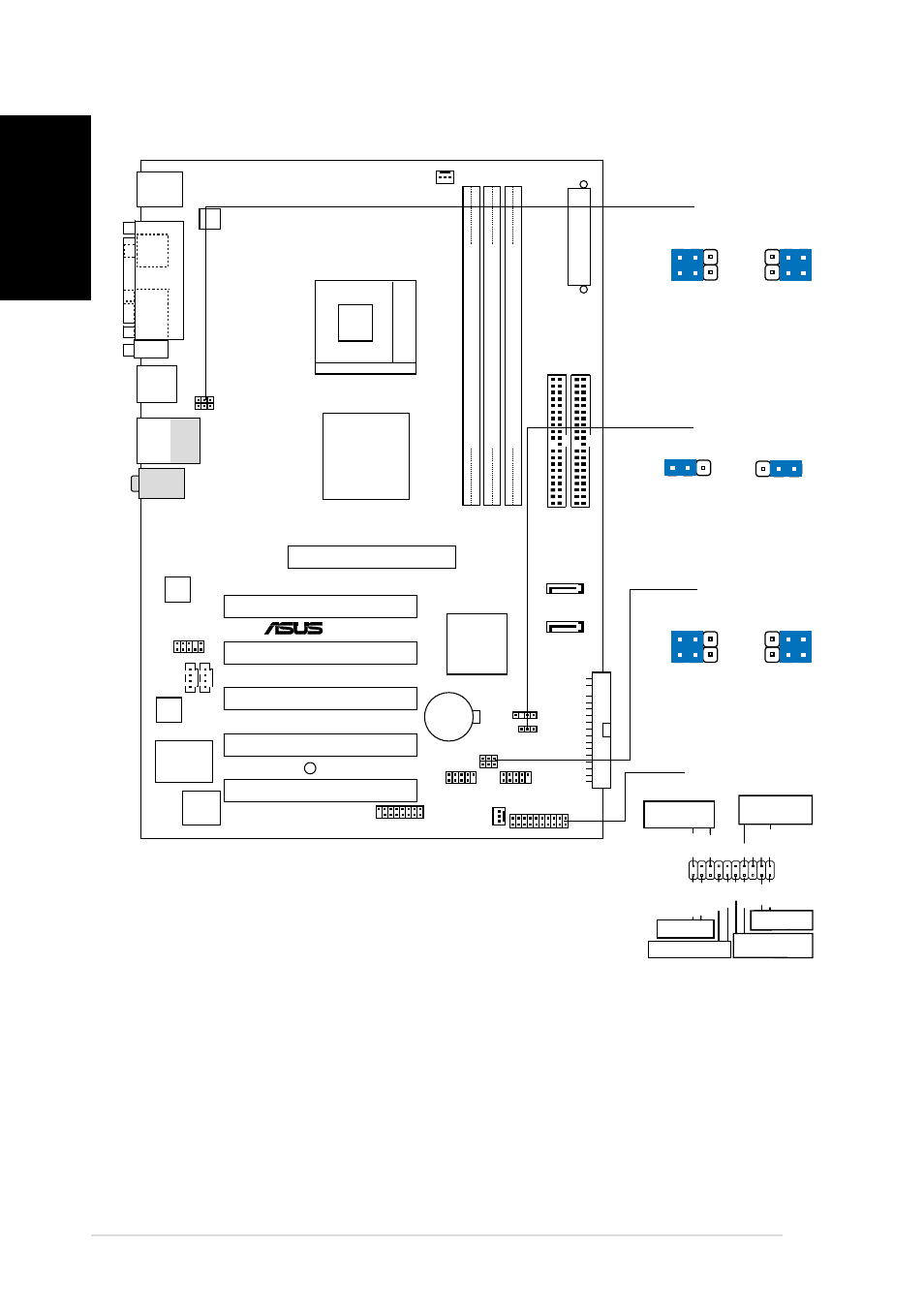

1. Schéma de la carte mère
PLED-
Ground
PWR
+5V Speaker
Ground ExtSMI# Ground Reset
Ground Ground PLED+
IDE_LED+ IDE_LED-
SMI Lead
IDE_LED
LED alimentation
Connecteur
Haut-parleur
Bouton de reset
Commutateur
d’alimentation ATX*
* Nécessite une alimentation ATX.
PCI1
PANEL1
P4V800-X
®
CD
AUX
Super
I/O
2Mbit
ISA
Accelerated Graphics Port (AGP)
CPU_FAN1
FP_AUDIO
Audio
Codec
GAME1
CLRTC1
PRI_IDE1 SEC_IDE1
A
TX Power Connector
DDR DIMM1 (64/72 bit,184-pin module)
CHA_FAN1
VIA
VT8237
Chipset
USB78
SB_PWR1
USBPW78
DDR DIMM2 (64/72 bit,184-pin module) DDR DIMM3 (64/72 bit,184-pin module) RJ-45
Top:
USB3
USB4
Bottom:
USB12
PS/2KBMS
T: Mouse
B: Keyboard
SPDIF1
P
ARALLEL
POR
T
COM1
PCI2
PCI3
PCI4
PCI5
FLOPPY
VIA
PT800
Chip
ATX12V1
CR2032 3V
Lithium Cell
CMOS Power
Socket 478
USB56
Below:Mic In
Center:Line Out
Top:Line In
SATA1
SATA2
REALTEK
USBPW56
CHASSIS1
USBPW12
USBPW34
PANEL1
1 2 2 3
CLRTC1
Normal Clear CMOS
(Default)
3 2 2 1
+5V
(Default)
+5VSB
USBPW78
USBPW56
3 2 2 1
+5V
(Default)
+5VSB
USBPW12
USBPW34
