Asus F1A55 R2.0 User Manual
Page 22
1-10
Chapter 1: Product introduction

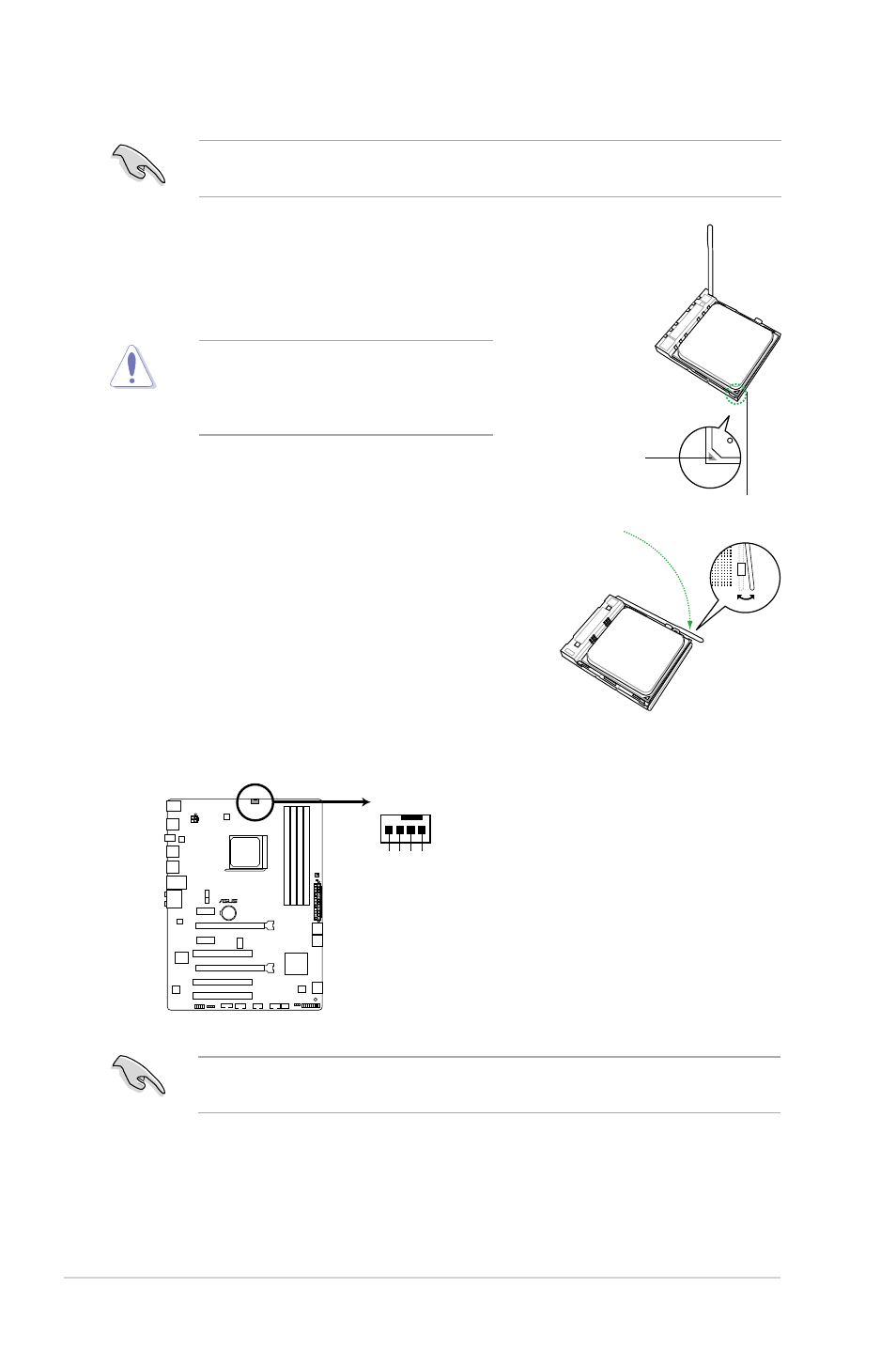

Ensure that the socket lever is lifted up to a 90°-100° angle; otherwise, the APU will not fit
in completely.
3.
Position the APU above the socket such that the APU
corner with the gold triangle matches the socket corner
with a small triangle.
4.
Carefully insert the APU into the socket until it fits in place.
The APU fits only in one correct orientation.
DO NOT force the APU into the socket to
prevent bending the pins and damaging the
APU!
Gold triangle
Small triangle
5.
When the APU is in place, push down the socket
lever to secure the APU. The lever clicks on the side
tab to indicate that it is locked.
6.
Install a APU heatsink and fan following the
instructions that comes with the heatsink package.
You can also refer to section 1.6.2 Installing
heatsink and fan for instructions.
7.
Connect the CPU fan cable to the CPU_FAN connector on the motherboard.
DO NOT forget to connect the CPU fan connector! Hardware monitoring errors can occur if
you fail to plug this connector.
CPU_FAN
CPU F
AN PWM
CPU F
AN IN
CPU F
AN PWR
GND
F1A55 R2.0
F1A55 R2.0 CPU fan connector
