1.10 Onboard LEDs
1. DRAM LED
DRAM LED checks the DRAM in sequence during motherboard booting process. If an
error is found , the LED next to the error device will continue lighting until the problem
is solved. This user-friendly design provides an intuitional way to locate the root
problem within a second.

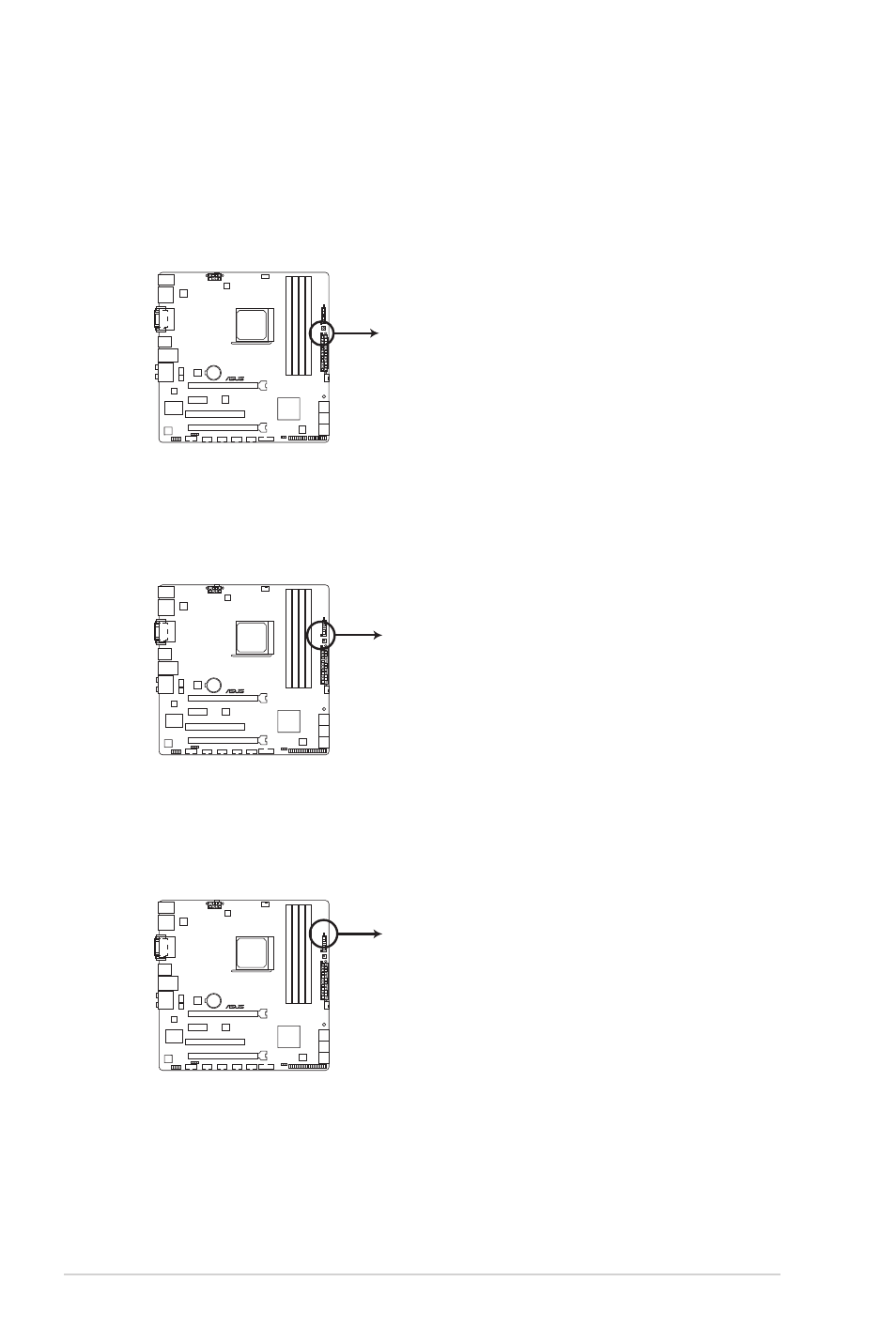

F1A75-M PRO R2.0
F1A75-M PRO R2.0 DRAM LED
DRAM LED
2. TPU LED
The TPU LED lights when the TPU switch is turned to Enable.
3. EPU LED
The EPU LED lights when the EPU switch is turned to Enable.
F1A75-M PRO R2.0
F1A75-M PRO R2.0 TPU LED
ELED730
F1A75-M PRO R2.0
F1A75-M PRO R2.0 EPU LED
ELED740
