1.5.4 Layout contents
Connectors/Jumpers/Slots Page Connectors/Jumpers/Slots Page
1. Keyboard power (3-pin KBPWR) 1-18 9. Clear RTC RAM (CLRTC) 1-17
2. USB device wake-up (3-pin USBPW1-4,
USBPW5-10)
1-18 10. Serial ATA connectors (7-pin SATA1-4) 1-23
3. ATX power connectors (24-pin EATXPWR, 4-pin
ATX12V)
1-21 11. System panel connector (10-1 pin F_PANEL) 1-24
4. CPU and chassis fan connectors (4-pin
CPU_FAN, 3-pin CHA_FAN)
1-26 12. USB connectors (10-1 pin USB56, USB78,
USB910)
1-25
5. AMD CPU socket 1-7 13. Digital audio connector (4-1 pin SPDIF_OUT) 1-25
6. DDR3 DIMM sockets 1-10 14. Speaker connector (4-pin SPEAKER) 1-24
7. Onboard LED (SB_PWR) 1-4 15. Front panel audio connector (10-1 pin AAFP) 1-20
8. IDE connector (40-1 pin PRI_IDE) 1-22
1.6 Central Processing Unit (CPU)
This motherboard comes with an AM3 socket designed for Phenom™ II x6 / Phenom™ II /
Athlon™ II / Sempron™ 100 series processors.
1.6.1 Installing the CPU
To install a CPU:
1.
Locate the CPU socket on the motherboard.
The AM3 socket has a different pinout from the AM2+/AM2 socket. Ensure that you use a
CPU designed for the AM3 socket. The CPU fits in only one correct orientation. DO NOT
force the CPU into the socket to prevent bending the pins and damaging the CPU!

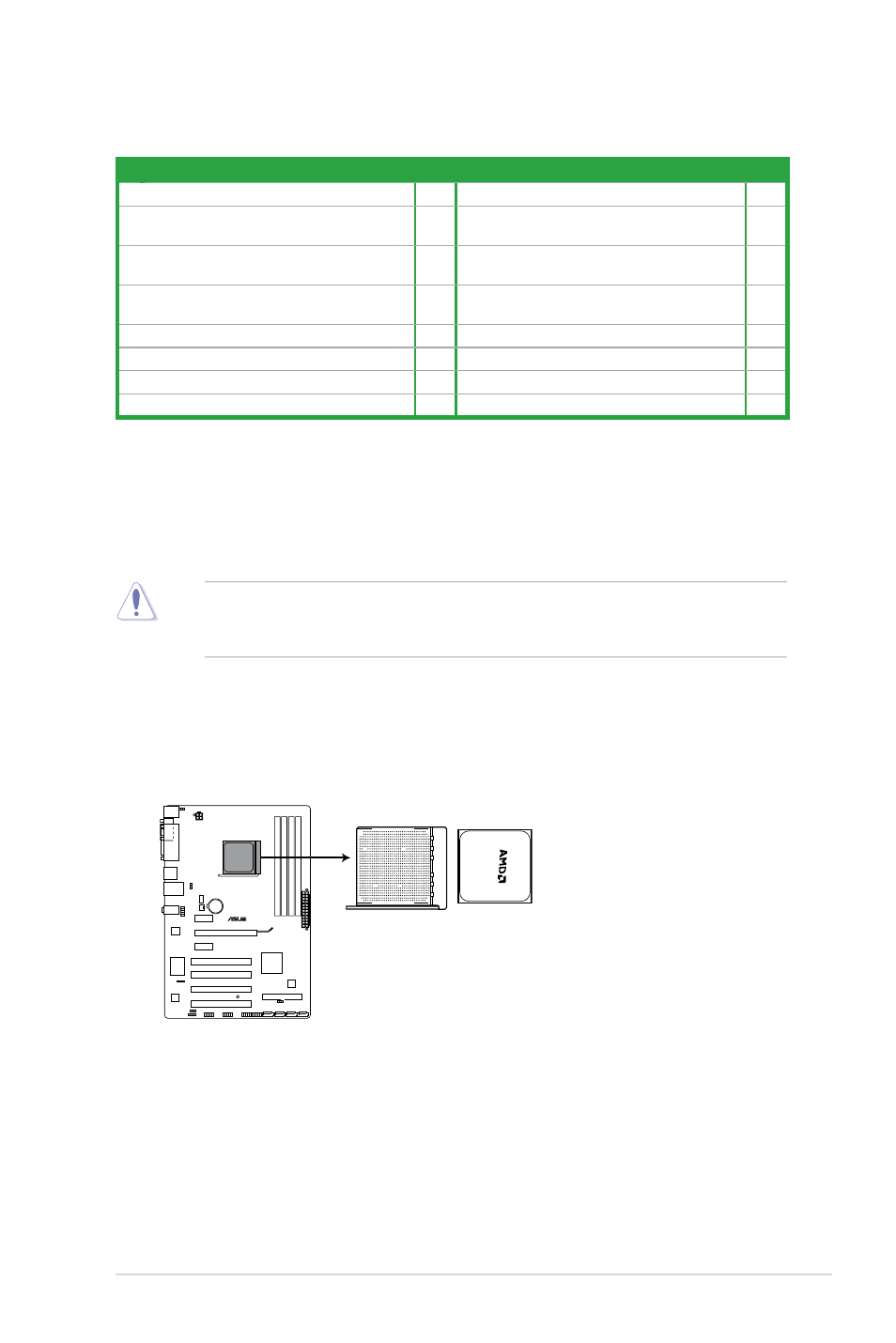

M4N68T V2 Series CPU socket AM3
M4N68T V2 Series
ASUS M4N68T V2 Series 1-7
