1.5.3

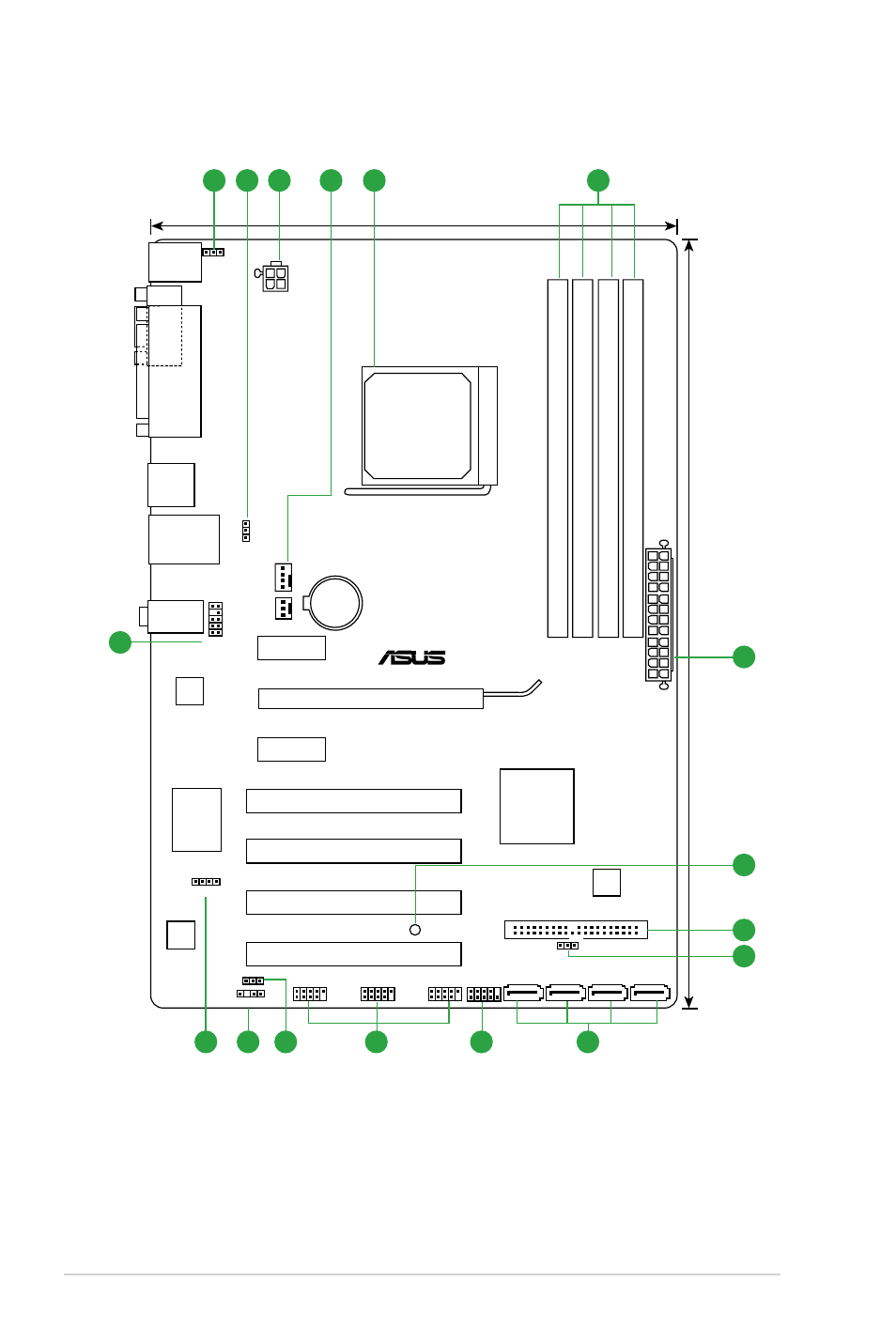

Motherboard layout

M4N68T V2 Series

PCIEX16

PCIEX1_1

PCIEX1_2

PCI3

PCI4

PCI2

PCI1

USB910

USB78

USB56

SPDIF_OUT

AAFP

ATX12V

EATXPW

R

CPU_FAN

CHA_FAN

Lithium Cell

CMOS Power

Super

I/O

VIA

VT1708S

RTL

8211CL

KBMS

8Mb

BIOS

SB_PWR

CLRTC

USBPW5-10

SPEAKER

USBPW1-4

KBPWR

20.8cm(8.2in)

DDR3 DIMM_A1 (64bit, 240-pin module)

SOCKET AM3

DDR3 DIMM_B1 (64bit, 240-pin module)

DDR3 DIMM_A2 (64bit, 240-pin module)

DDR3 DIMM_B2 (64bit, 240-pin module)

SATA1

SATA2

SATA3

SATA4

AUDIO

LPT

COM1

LAN1_USB12

USB34

30.5cm(12.0in)

PRI_IDE

NVIDIA

®

MCP68 SE

F_PANEL

3

2

5

4

3

1

6

10

13

2

12

11

14

15

9

8

7

Chapter 1: Product introduction

1-6
