ASUS M5A97 EVO

2-25

Chapter 2

6.

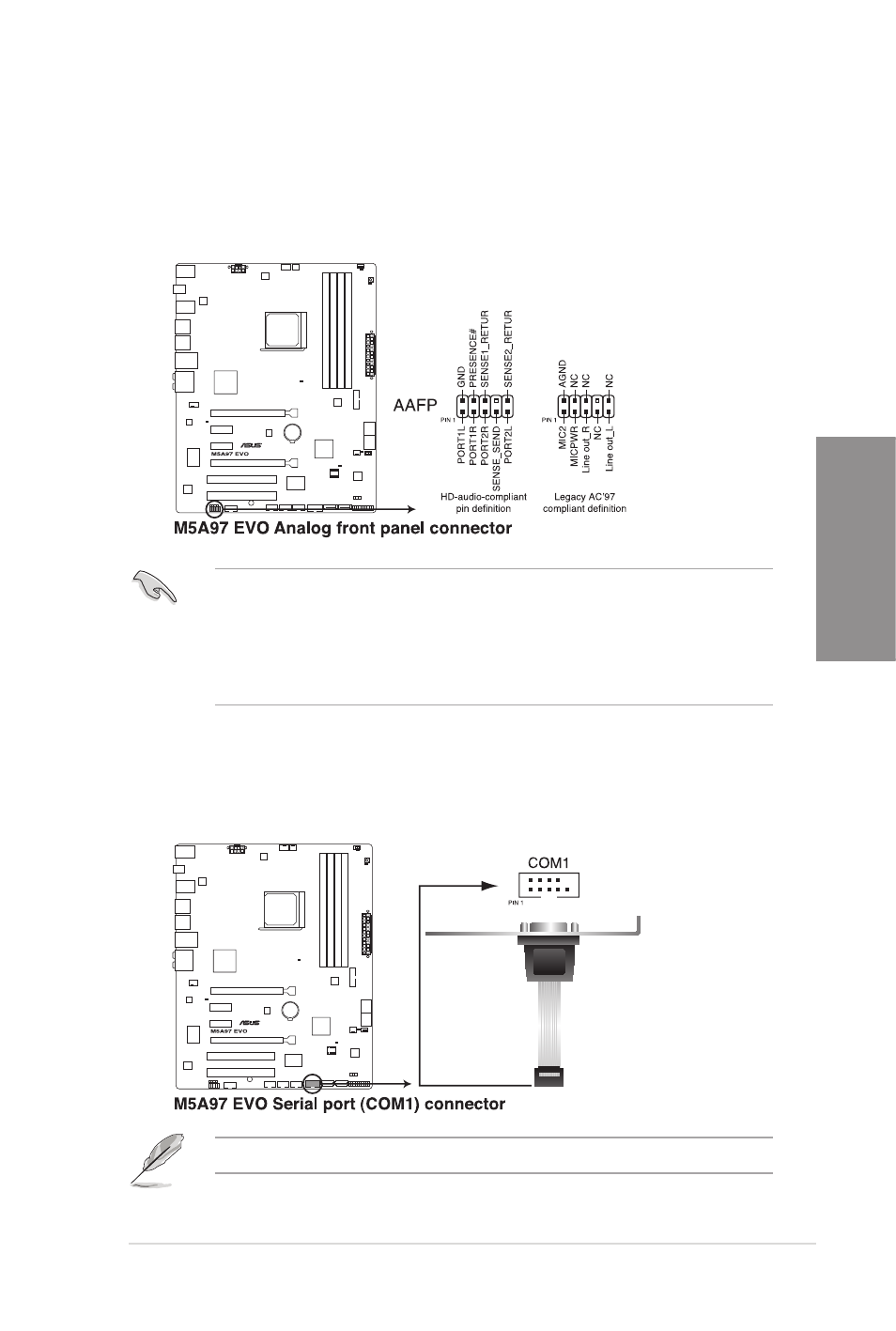

Front panel audio connector (10-1 pin AAFP)
This connector is for a chassis-mounted front panel audio I/O module that supports

either HD Audio or legacy AC`97 audio standard. Connect one end of the front panel

audio I/O module cable to this connector.

We recommend that you connect a high-definition front panel audio module to this

connector to avail of the motherboard’s high-definition audio capability.

If you want to connect a high-definition front panel audio module to this connector,

If you want to connect a high-definition front panel audio module to this connector,

set the Azalia Front Panel item in the BIOS setup to [HD]; if you want to connect an

AC'97 front panel audio module to this connector, set the item to [AC97]. By default,

this connector is set to [HD].

7.

Serial port connector (10-1 pin COM1)
The connector is for a serial (COM) port. Connect the serial port module cable to the

connector, then install the module to a slot opening at the back of the system chassis.

The serial port bracket (COM1) is purchased separately.
