ASUS Terminator P4 533A Barebone System 49
6. USB 2.0 headers (10-1 pin USB_34, USB_56)
The USB_34 header is connected to the USB2P connector in the
UAEX extension module on the front panel for two additional USB 2.0
ports.
The USB_56 header (pins 6 to 10) is connected to the J1 connector
on the card reader module on the front panel to support a Compact
Flash card.
7. Internal audio connectors (4-pin AUX1, CD1, MODEM1)
These connectors allow you to receive stereo audio input from sound
sources such as a CD-ROM, TV tuner, or MPEG card. The MODEM
connector allows the onboard audio to interface with a voice modem
card with a similar connector. It also allows the sharing of mono_in
(such as a phone) and a mono_out (such as a speaker) between the
audio and a voice modem card.

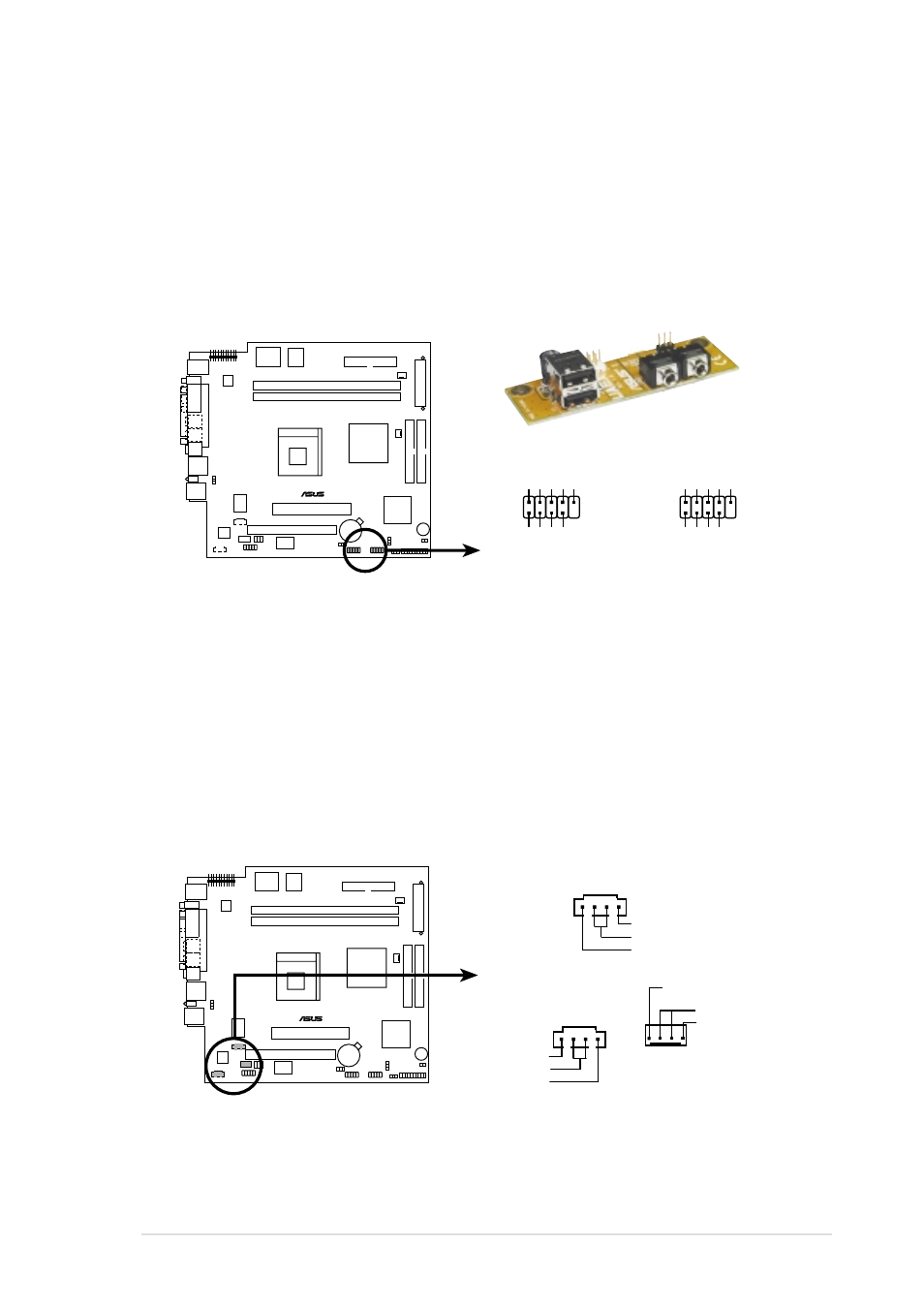

P4SC-EA
®
P4SC-EA USB Ports
USB Power USBP2
–
USBP2+ GND NC
USB Power
USBP3
–
USBP3+
GND
1 5
6 10
USB Power USBP2
–
USBP2+ GND NC
USB Power
USBP3
–
USBP3+
GND
1 5
6 10
USB_34 USB_56
P4SC-EA
®
P4SC-EA Internal Audio Connectors
CD1 (Black)
AUX1 (White)
MODEM1
Right Audio Channel
Left Audio Channel
Ground
Modem-Out
(from Modem)
Ground
Modem-In
(to Modem)
Right Audio Channel
Left Audio Channel
Ground
