30 Chapter 2: Basic Installation
2.9.2 UAEX and card reader modules
The system front I/O panel has two modules, the UAEX and a card reader,
that contain the front panel I/O ports and the connectors to the
motherboard.
UAEX module

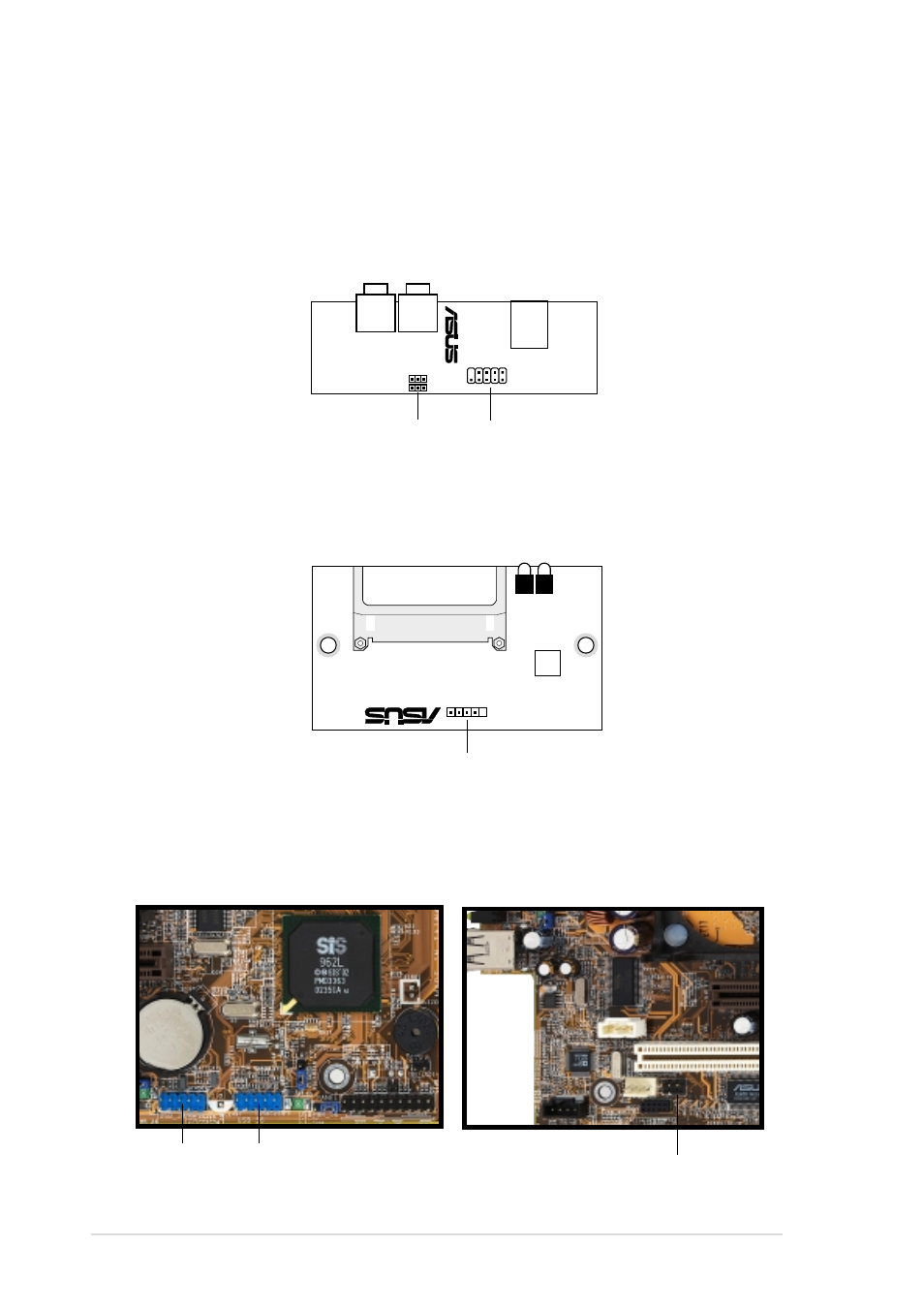

Connector locations on the motherboard
Connect to USB_34 connector
on the motherboard Connect to MIC_LOUT1 connector
on the motherboard
®
USB2P
MIC2
USB T
: Port0
B: Port1
MIC LOUT
LO2
UAEX
CF Card Reader module
USB_CF
®
J1
LED3 LED2
CON1
Connect to USB_56 connector
on the motherboard
MIC_LOUT1 connector
(for Microphone/Line Out Cable)
USB_34 USB_56
