12 Chapter 1: System Introduction
1.1 Front Panel Features

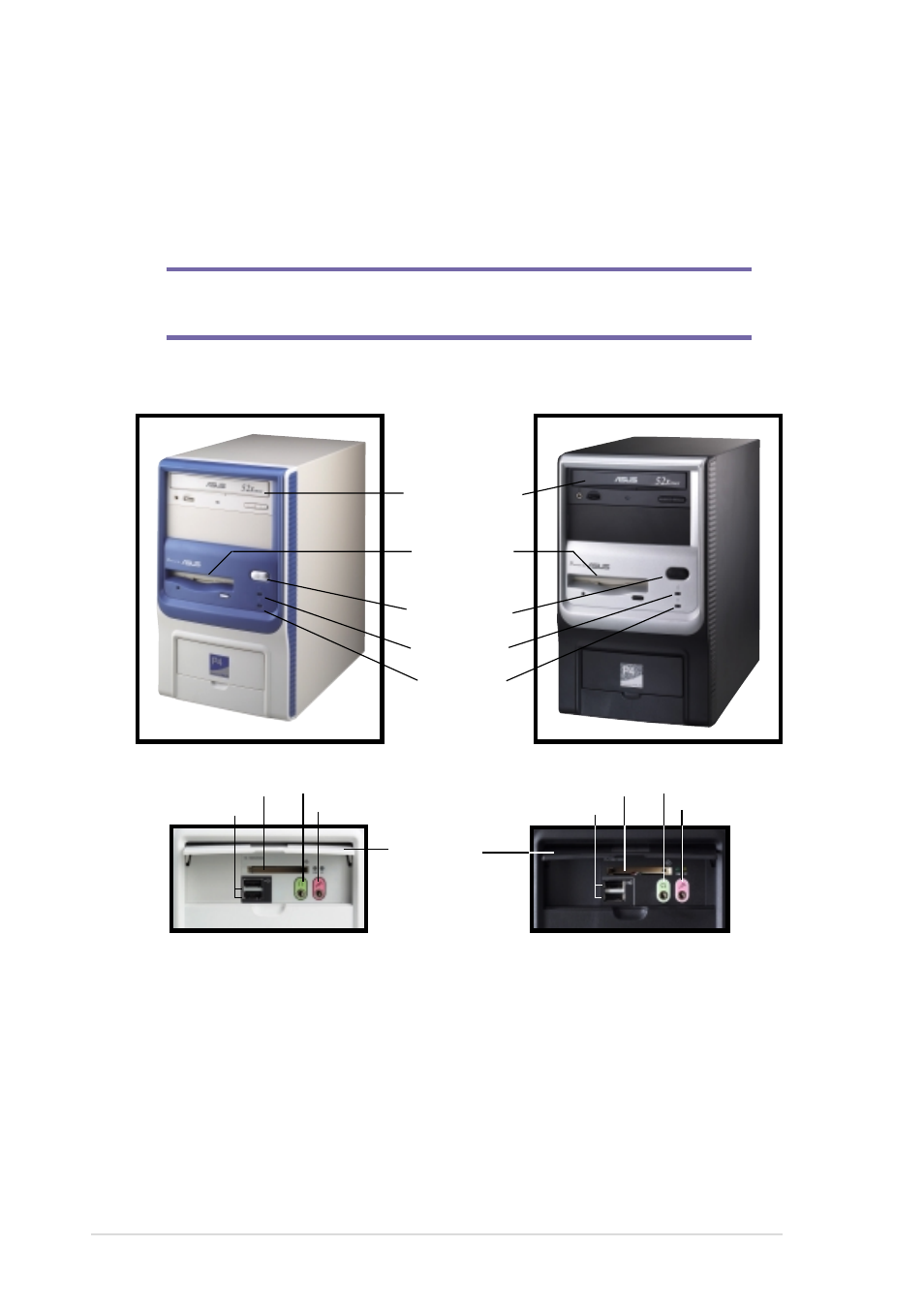

The ASUS Terminator P4 533A barebone system is composed of the
ASUS P4SC-EA motherboard, a power supply, and a floppy disk drive in
the ASUS TriOptix form factor chassis. The chassis front bezel may vary
as shown.
NOTE
The CD-ROM drive and modem card are optional items.
The lower part of the front panel is a door that covers accessible I/O
features including a CF card reader, two USB 2.0 ports (Ports 2 and 3), a
headphone jack, and a microphone jack.
Open chassis 1 I/O door by pressing the dotted area of the door.
Open chassis 2 I/O door by flipping up the door.
USB 2.0 Ports
Headphone Jack
Microphone Jack
Front Panel
I/O Door
CF card reader
USB 2.0 Ports
Headphone Jack
Microphone Jack
CF card reader
CD-ROM Drive
(optional)
Floppy Drive
Power Button
HDD LED
Power LED
Chassis 1 Chassis 2
