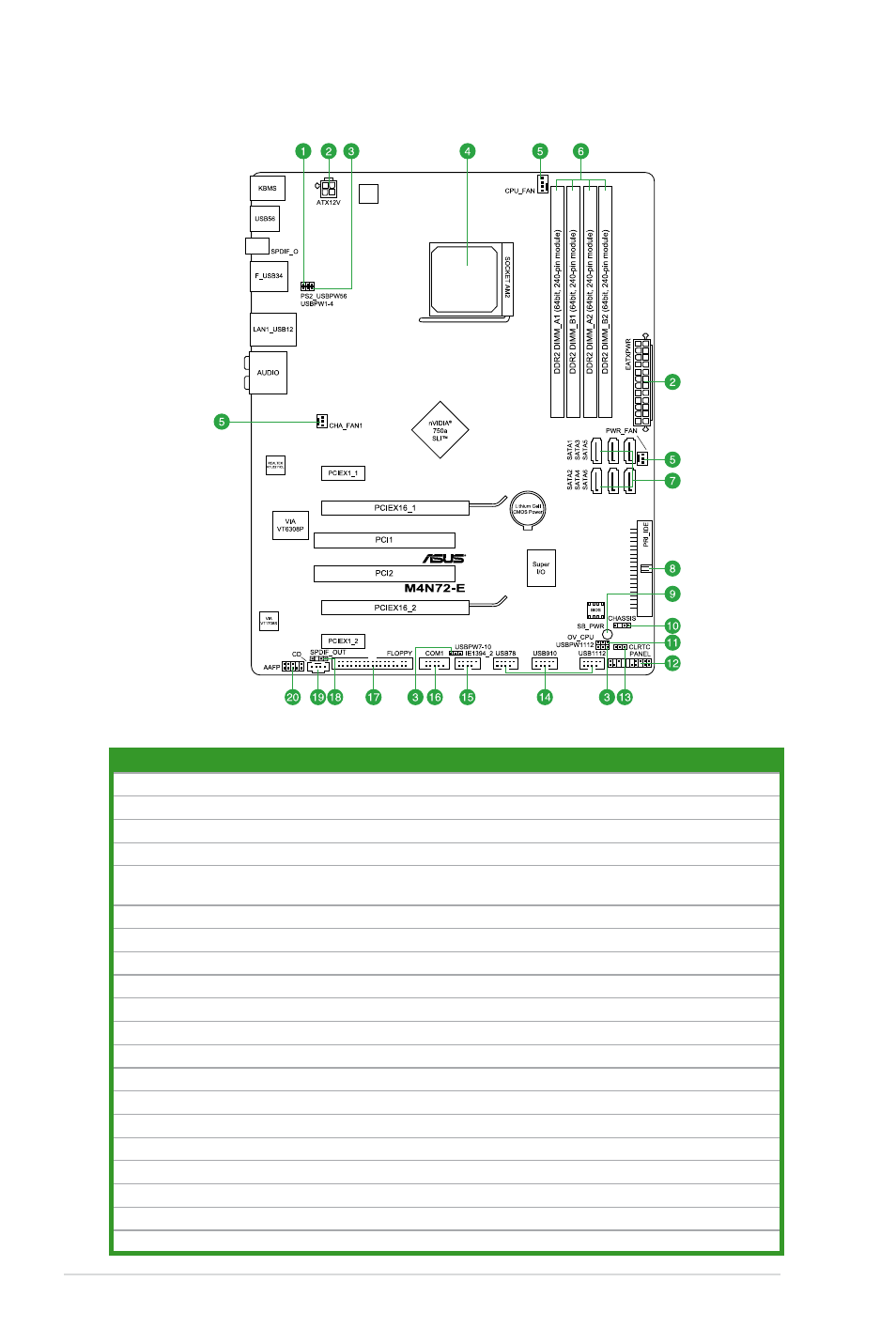

1.5.3 Motherboard layout
1.5.4 Layout contents
Connectors/Jumpers/Slots Page
1. Keyboard/mouse power (3-pin PS2_USBPW56) 1-19
2. ATX power connectors (24-pin EATXPWR, 4-pin ATX12V) 1-23
3. USB device wake-up (3-pin USBPW1-4, USBPW7-10, USBPW1112) 1-19
4. CPU socket AM2+/AM2 1-7
5. CPU, Chassis and Power Fan connectors (4-pin CPU_FAN, 3-pin CHA_FAN1, 3-pin
PWR_FAN)
1-22
6. DDR2 DIMM slots 1-10
7. Serial ATA connectors (7-pin SATA1-6) 1-25
8. IDE connector (40-1 pin PRI_IDE) 1-24
9. Onboard LED (SB_PWR) 1-4
10. Chassis intrusion connector (4-1 pin CHASSIS) 1-22
11. CPU overvoltage setting (3-1 pin OV_CPU) 1-18
12. System panel connector (20-8 pin PANEL) 1-26
13. Clear RTC RAM (CLRTC) 1-17
14. USB connectors (10-1 pin USB78, USB910, USB1112) 1-27
15. IEEE 1394a connector (10-1 pin IE1394_2) 1-30
16. Serial port connector (10-1 pin COM1) 1-29
17. Floppy disk drive connector (34-1 pin FLOPPY) 1-27
18. Digital audio connector (4-1 pin SPDIF_OUT) 1-28
19. Optical drive audio in connector (4-pin CD) 1-28
20. Front panel audio connector (10-1 pin AAFP) 1-29
1-6 ASUS M4N72-E
